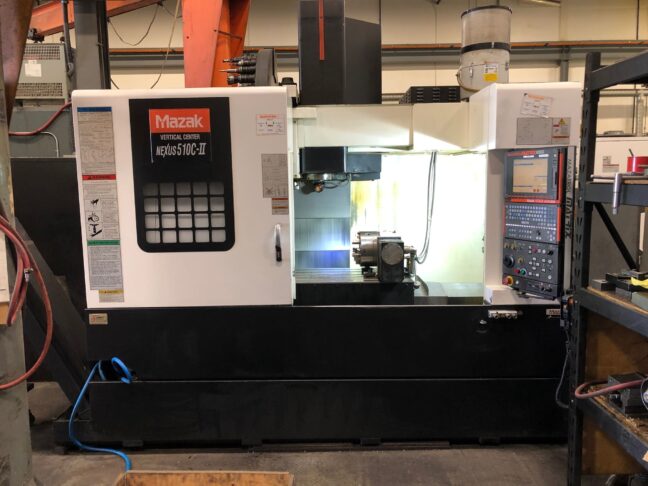

Mazak VCN-510C-II CNC Vertical Machining Center with 4th Axis
Ref #10; Serial No. 221978

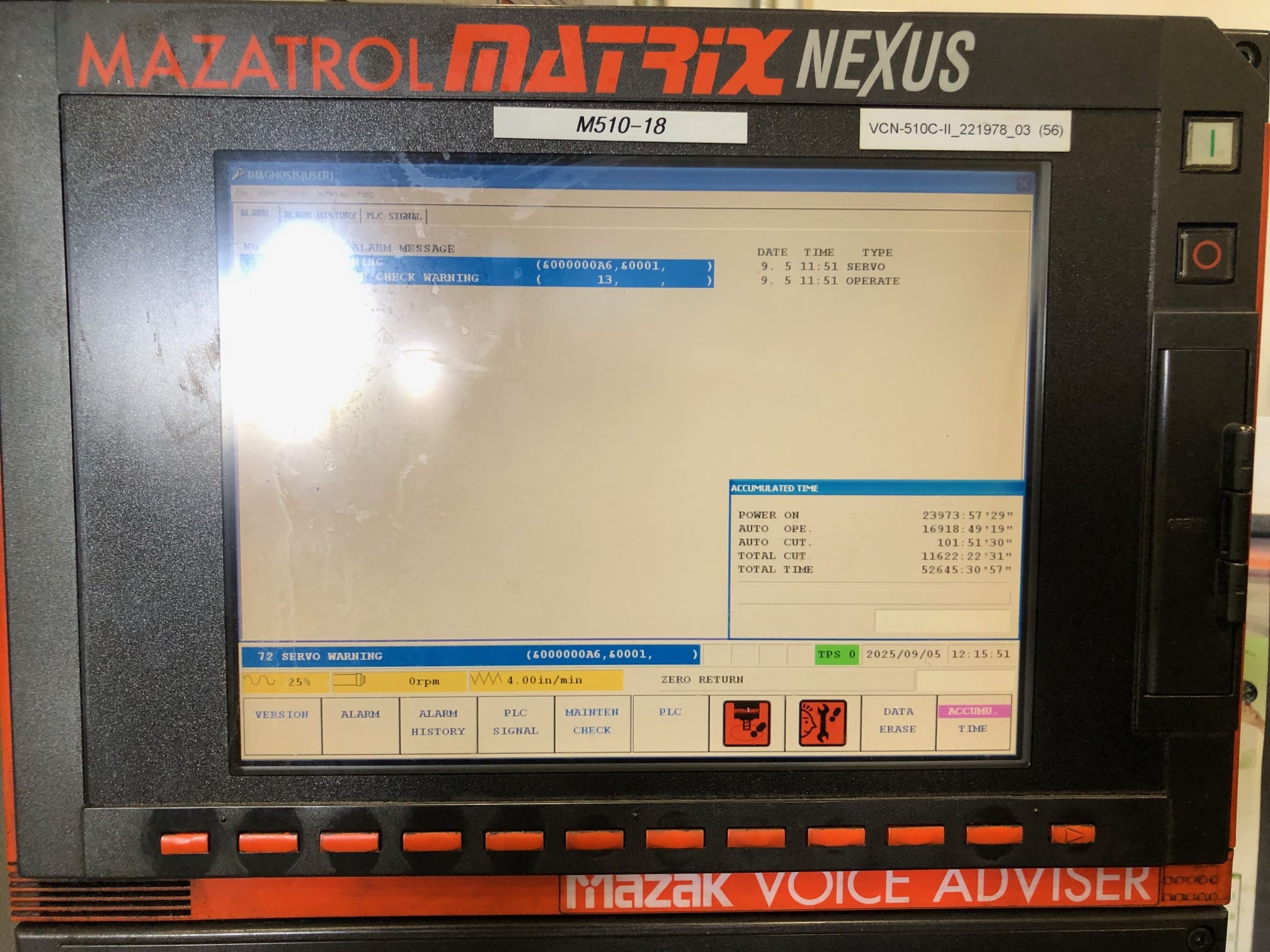

Control: Mazatrol Matrix Nexus
Year: 2010-10

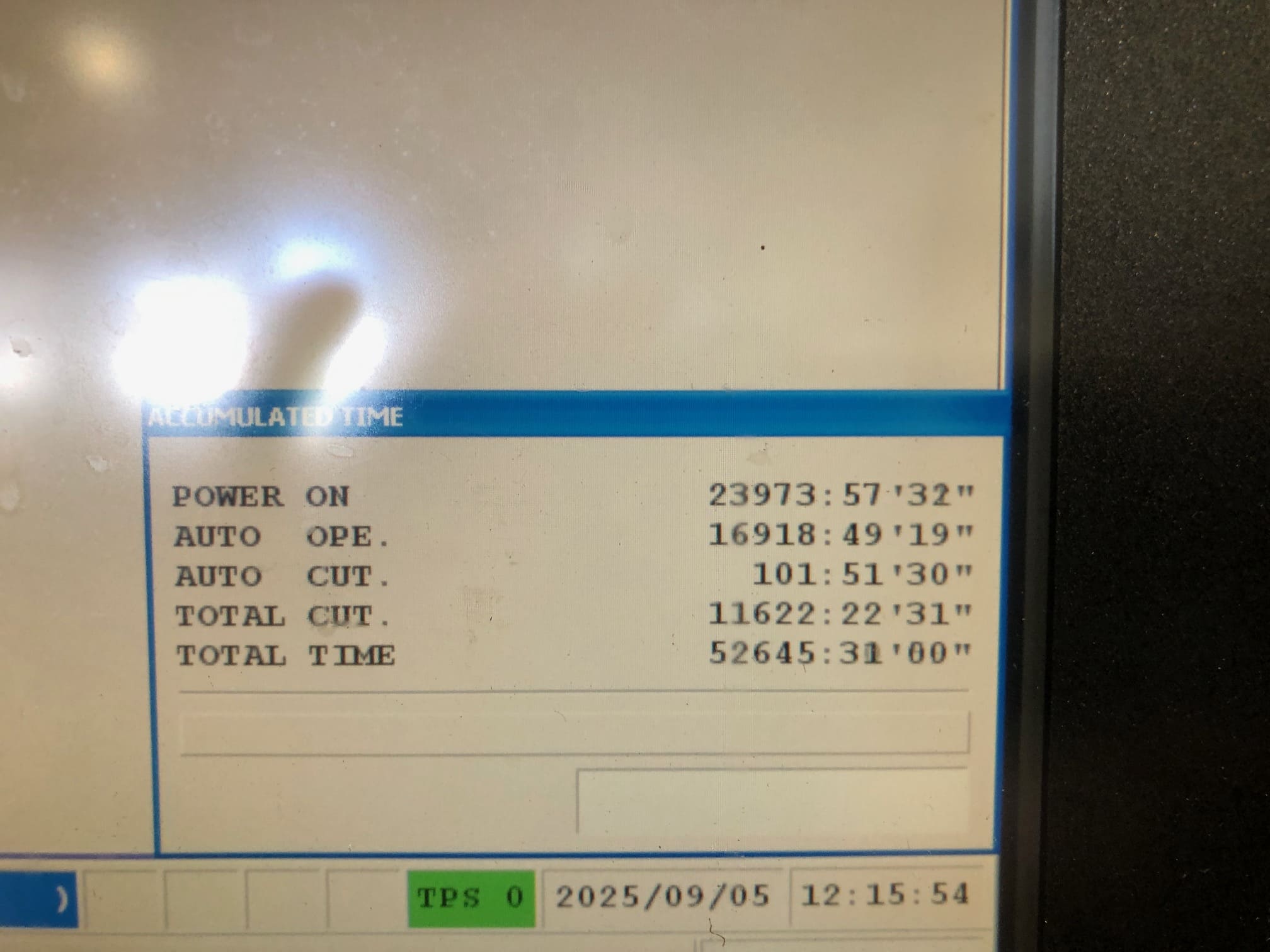

Hours: 11,622 total cut; 23,973 power on
Equipped With:
– Mazatrol Matrix Nexus Control

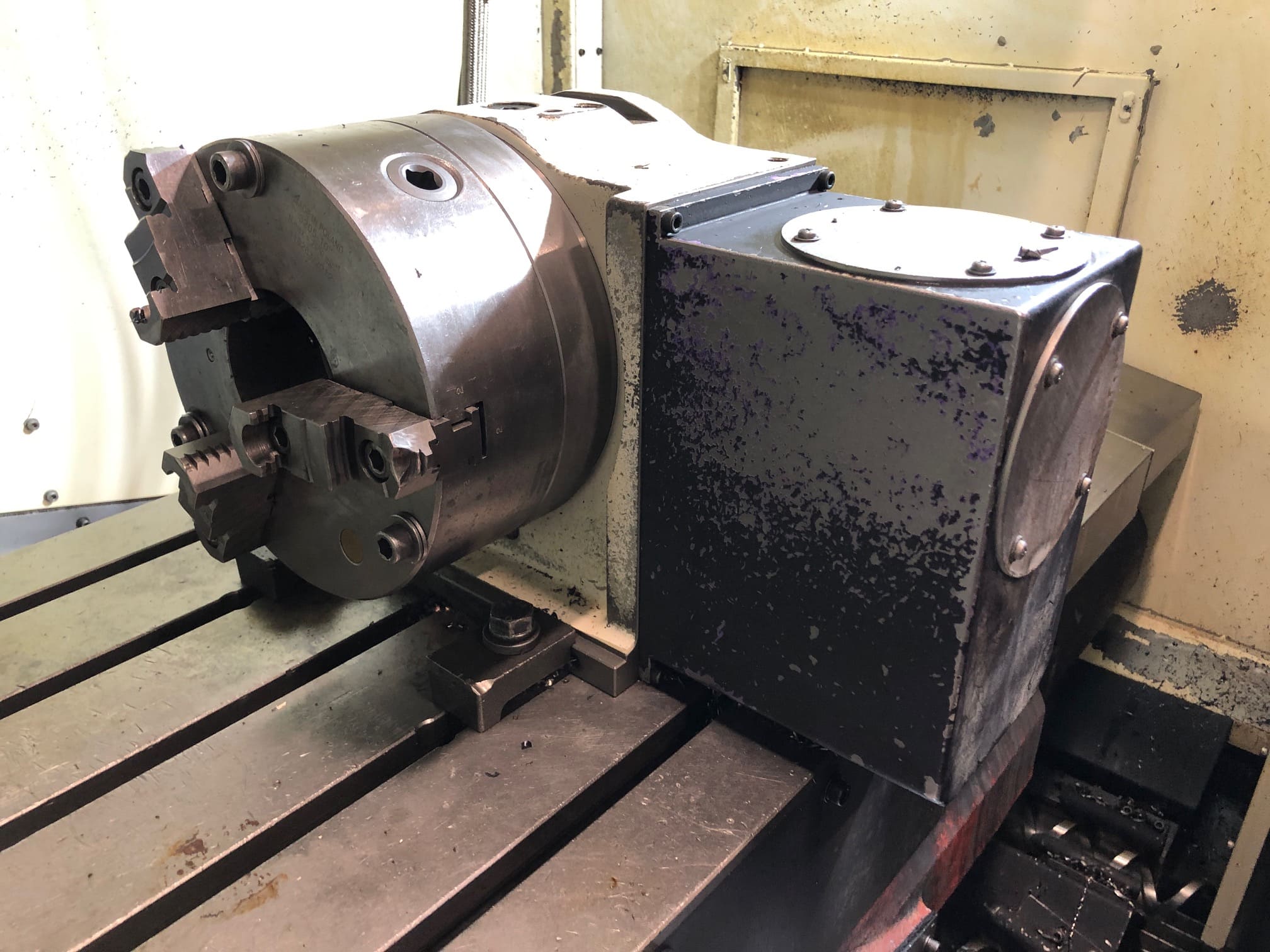

– 10” 4th axis rotary table
– High pressure coolant thru spindle
– Chip Conveyor
– Coolant Tank
– Tool Setter
– Workpiece probe
– Mist Fit MF-1050 Coolant Mist Extractor

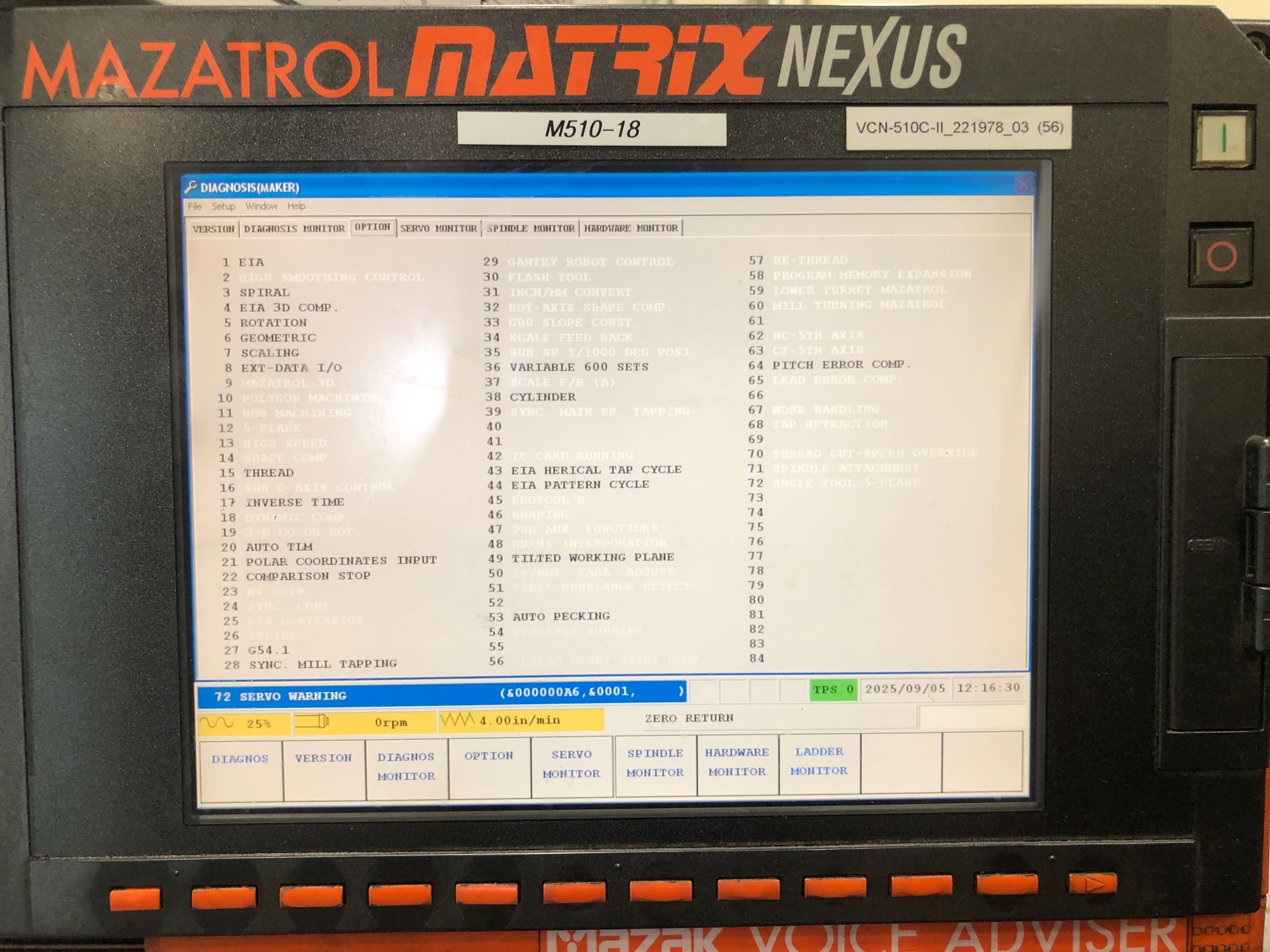

– Control Options List on request
Specifications
Mazak VCN-510C-II CNC Vertical Machining Center with 4th Axis
Ref #10; Serial No. 221978
Control: Mazatrol Matrix Nexus
Year: 2010-10
Hours: 11,622 total cut; 23,973 power on
Specifications:
Controlled Axis: 4
X-axis travel: 41.3”
Y-axis travel: 20.08”
Z-axis travel: 20.08”
Min/Max distance spindle nose to table: 5.9” – 25.98”
Table size: 51.1” x 21.6”
Maximum weight on table: lbs.
Spindle taper: CAT-40
Spindle Speeds: 12,000 RPM
Spindle Motor: 25 HP
ATC Capacity: 30
Max tool diameter x length: ” x ”
Max tool weight: 17.8 lbs.

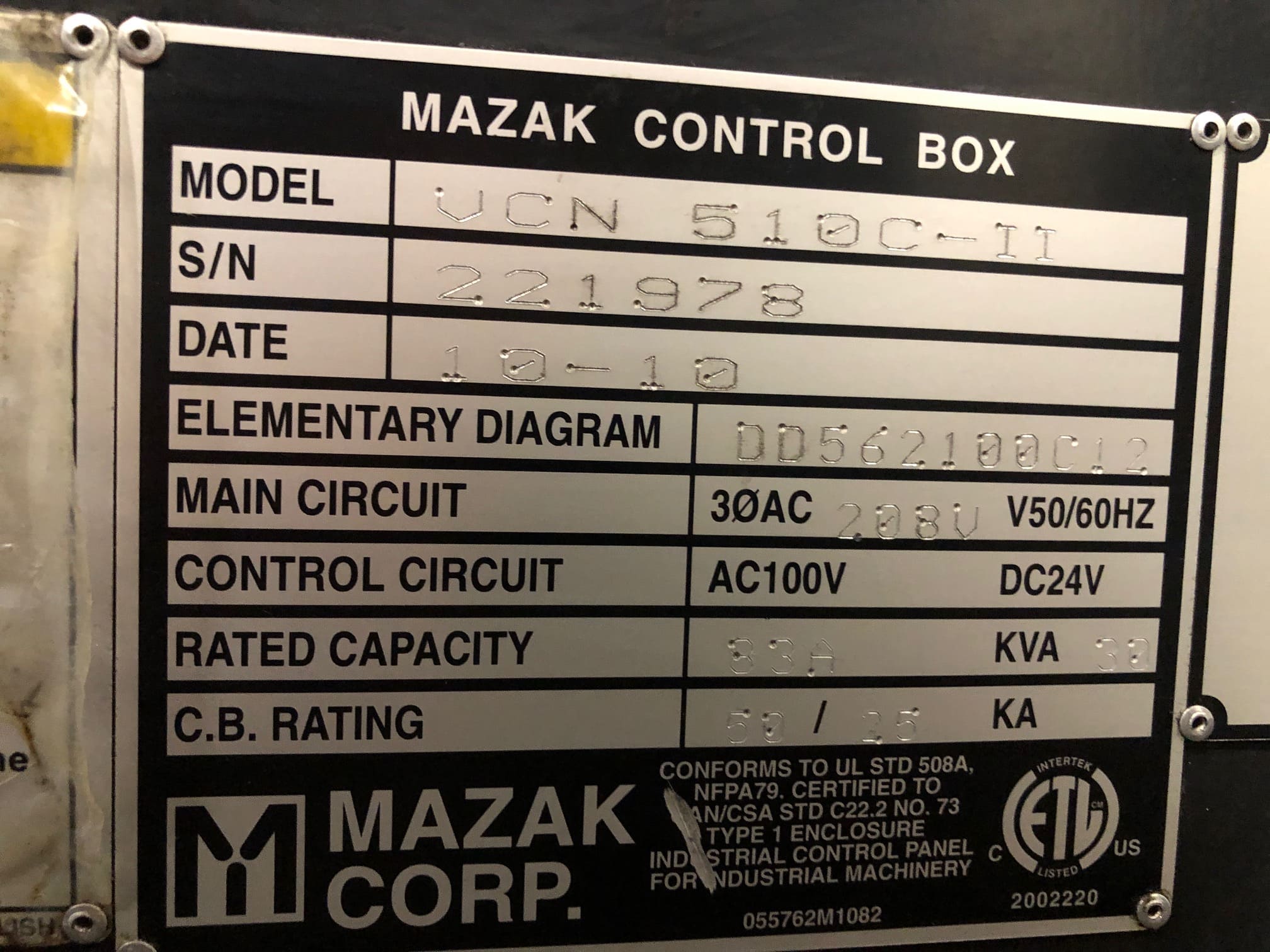

Electrical requirements: 208 Volt; 83A; 30 KVA
Machine Dimensions, L x D x H: 113″ x 111″ x 112″ H

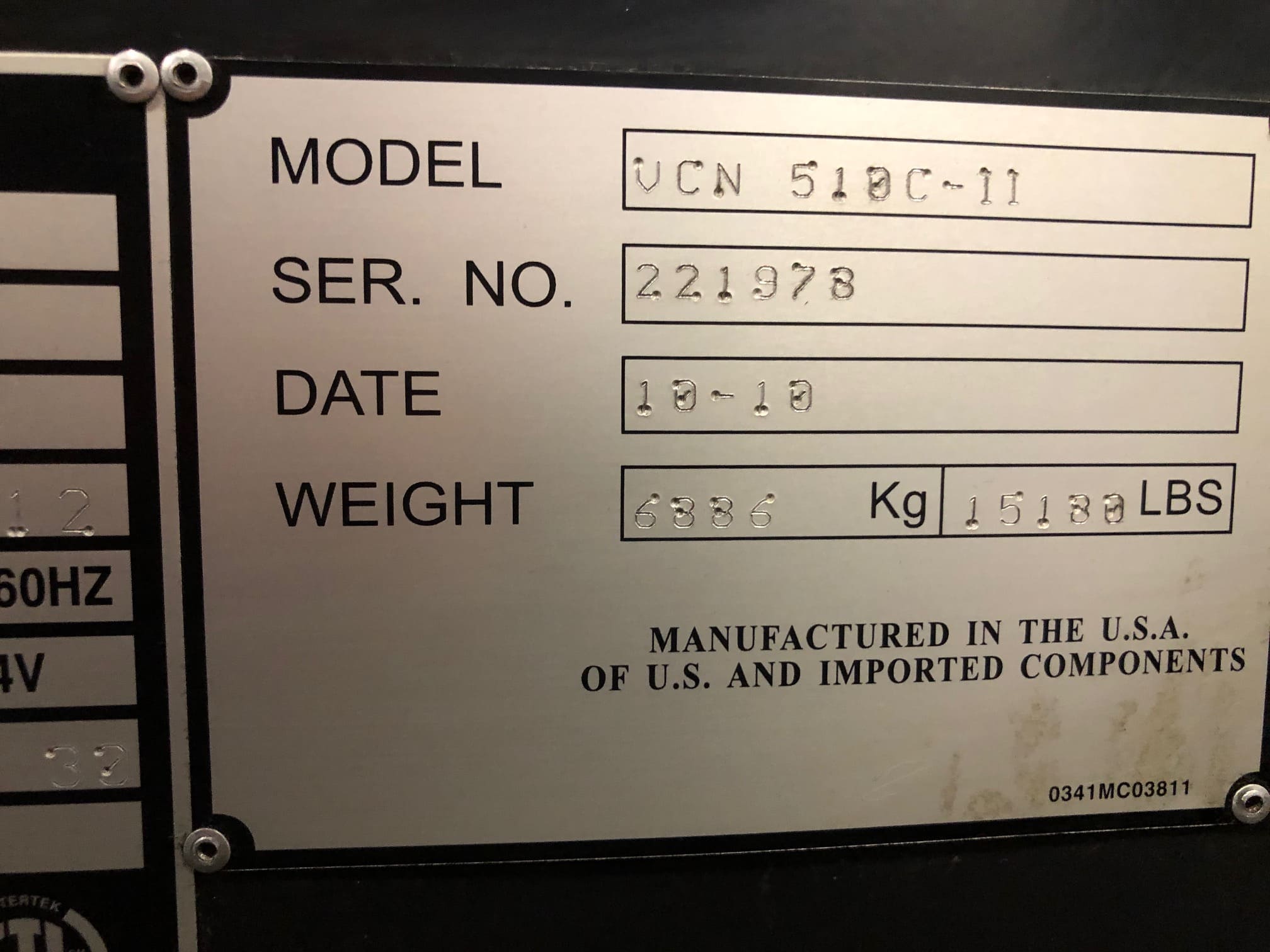

Machine Weight: 15,180 lbs
