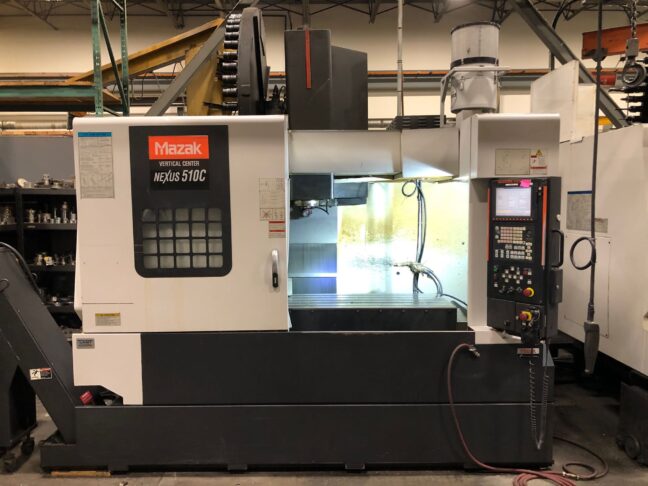

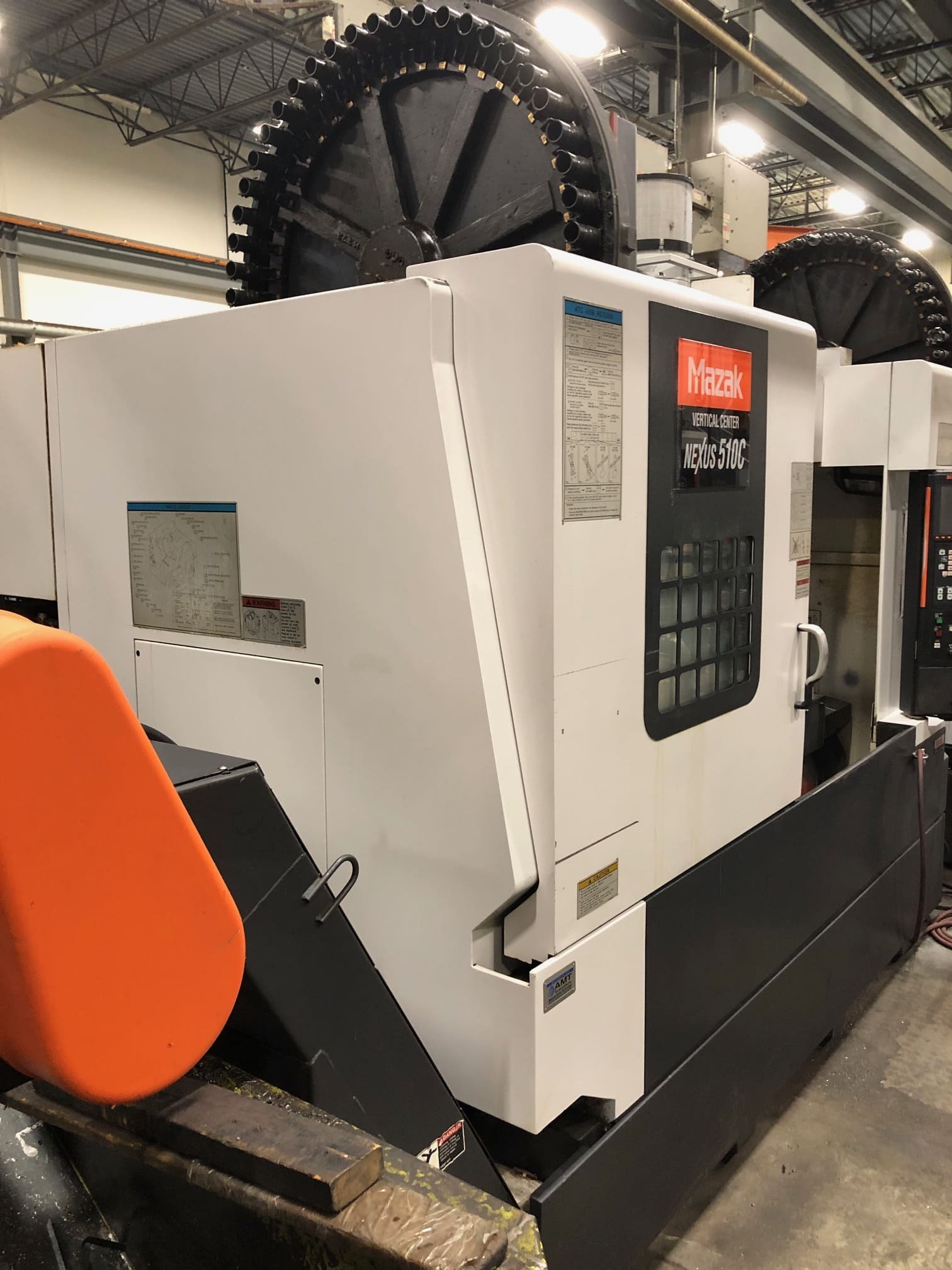

Mazak VCN-510C CNC Vertical Machining Center with 4th Axis
Ref #12; Serial No. 178508

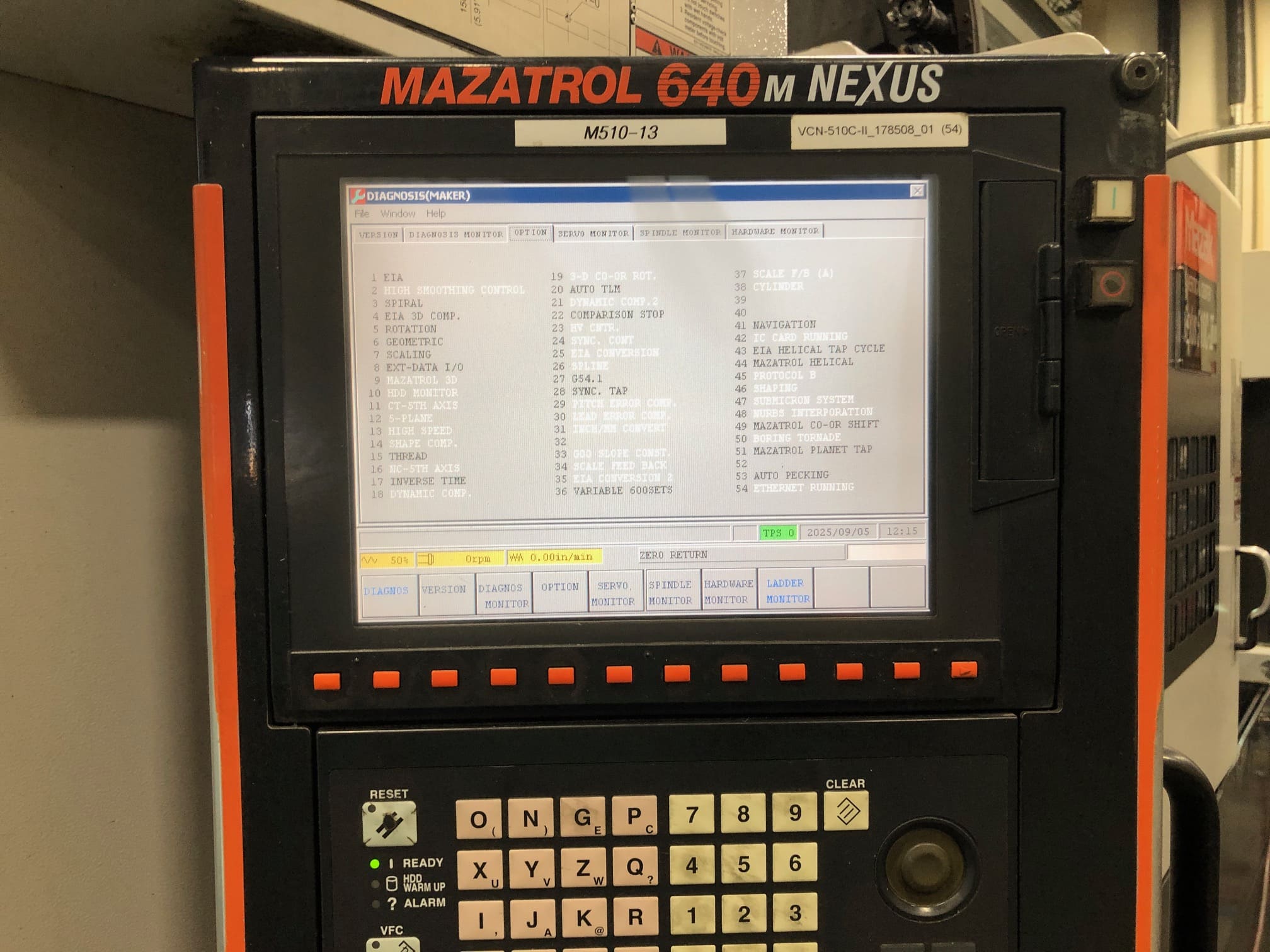

Control: Mazatrol 640M Nexus
Year: 2005-09
Equipped With:
– Mazatrol Matrix Nexus Control

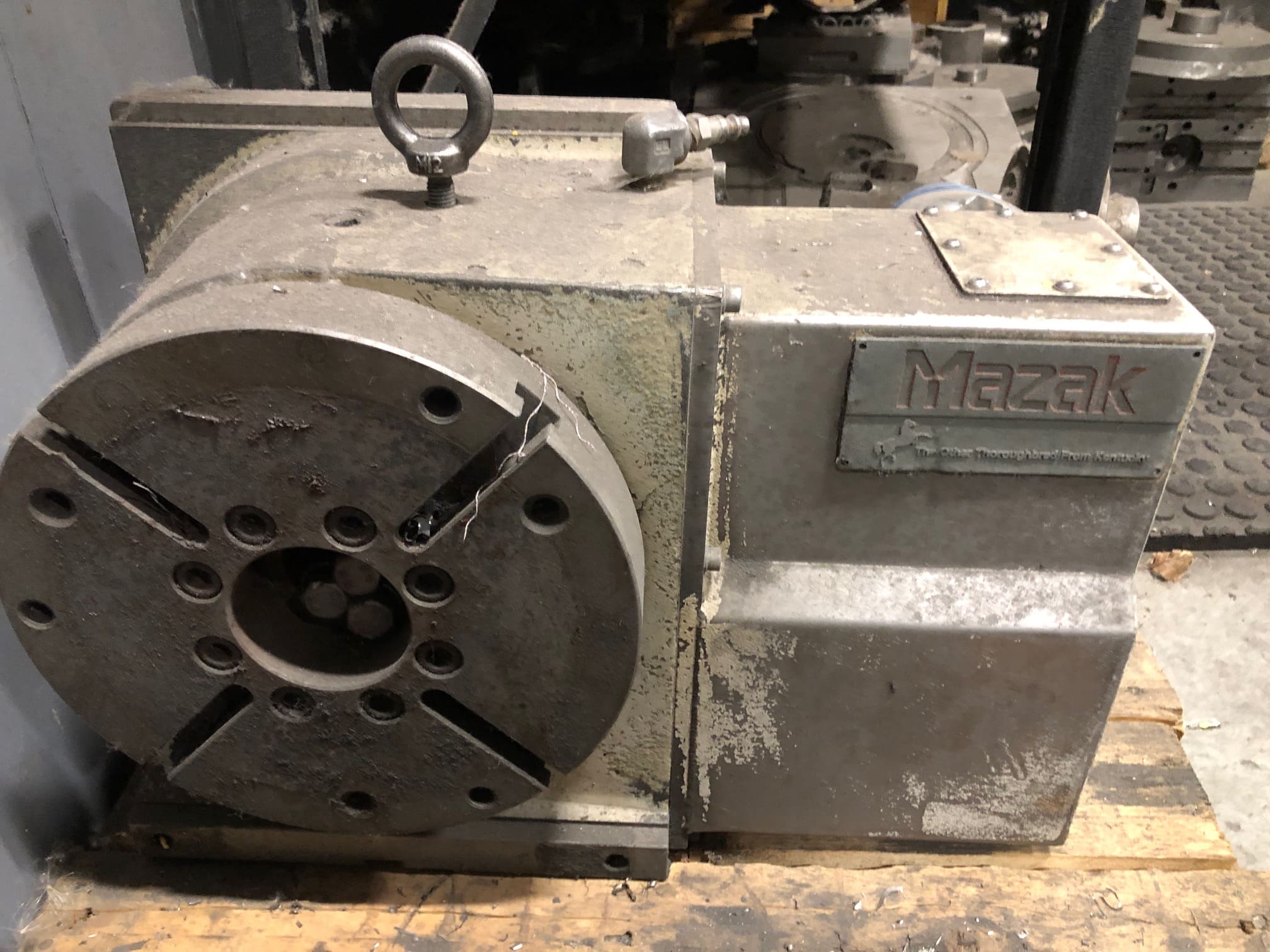

– Mazak 10” 4th axis rotary table
– High pressure coolant thru spindle
– Chip Conveyor
– Coolant Tank
– Tool Setter
– Mist Fit MF-1050 Coolant Mist Extractor
– Control Options List on request
Specifications
Mazak VCN-510C CNC Vertical Machining Center with 4th Axis
Ref #12; Serial No. 178508
Control: Mazatrol 640M Nexus
Year: 2005-09
Specifications:
Controlled Axis: 4
X-axis travel: 41.3”
Y-axis travel: 20.08”
Z-axis travel: 20.08”
Min/Max distance spindle nose to table: 5.9” – 25.98”

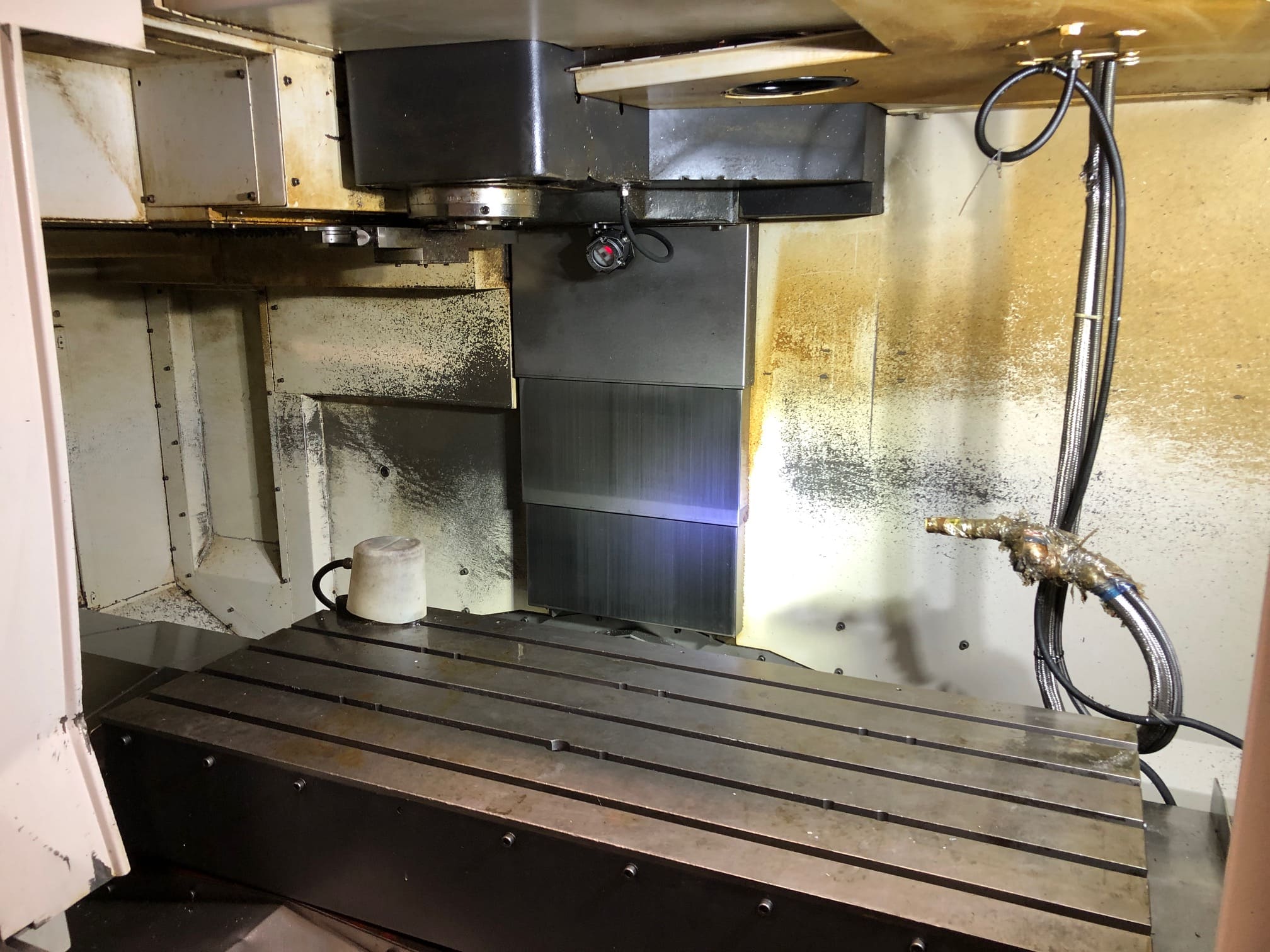

Table size: 51.1” x 21.6”
Maximum weight on table: lbs.
Spindle taper: CAT-40
Spindle Speeds: 12,000 RPM
Spindle Motor: 25 HP
ATC Capacity: 48
Max tool diameter x length: ” x ”
Max tool weight: 17.8 lbs.

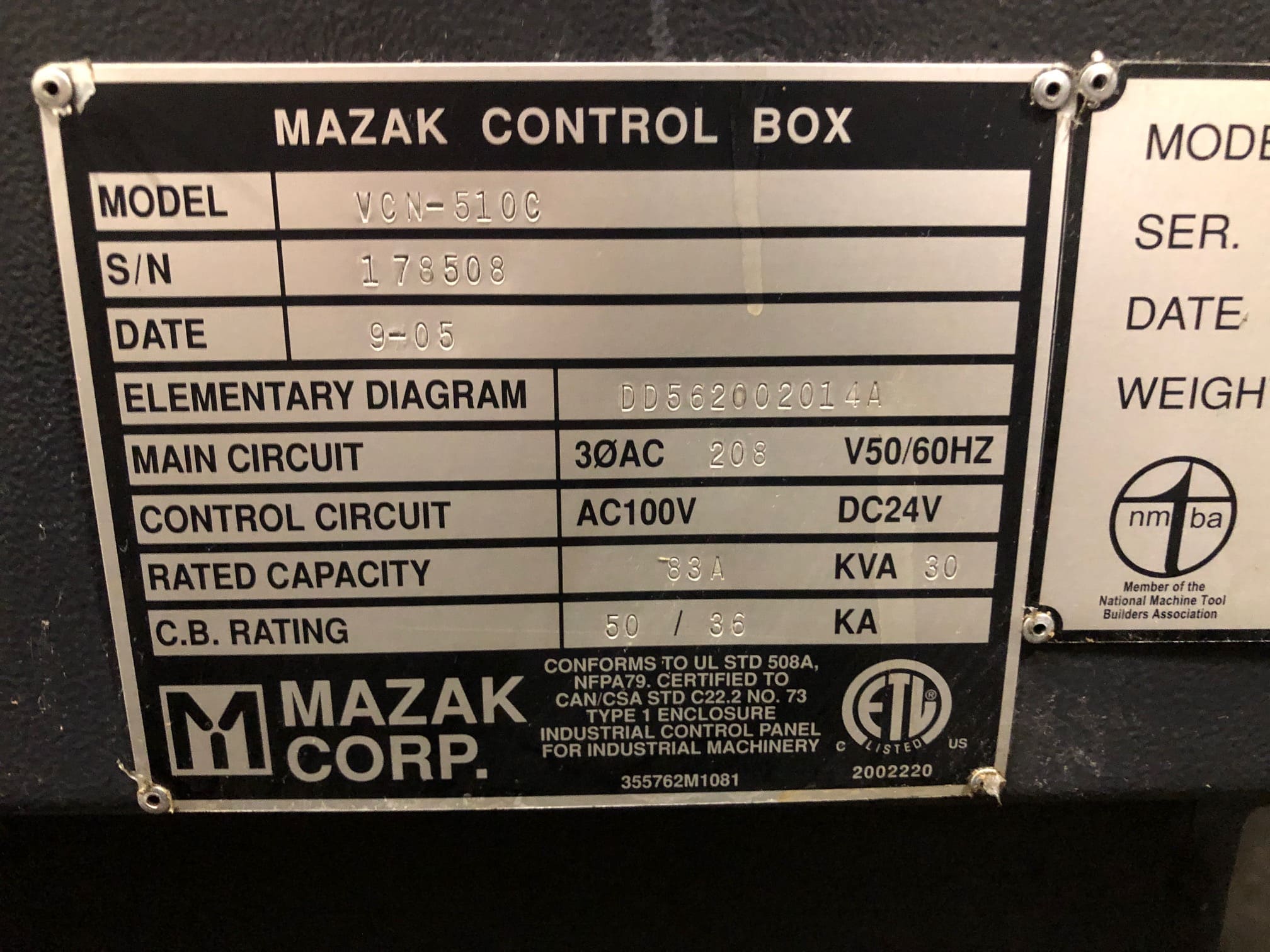

Electrical requirements: 208 Volt; 83A; 30 KVA
Machine Dimensions, L x D x H: 113″ x 111″ x 112″ H

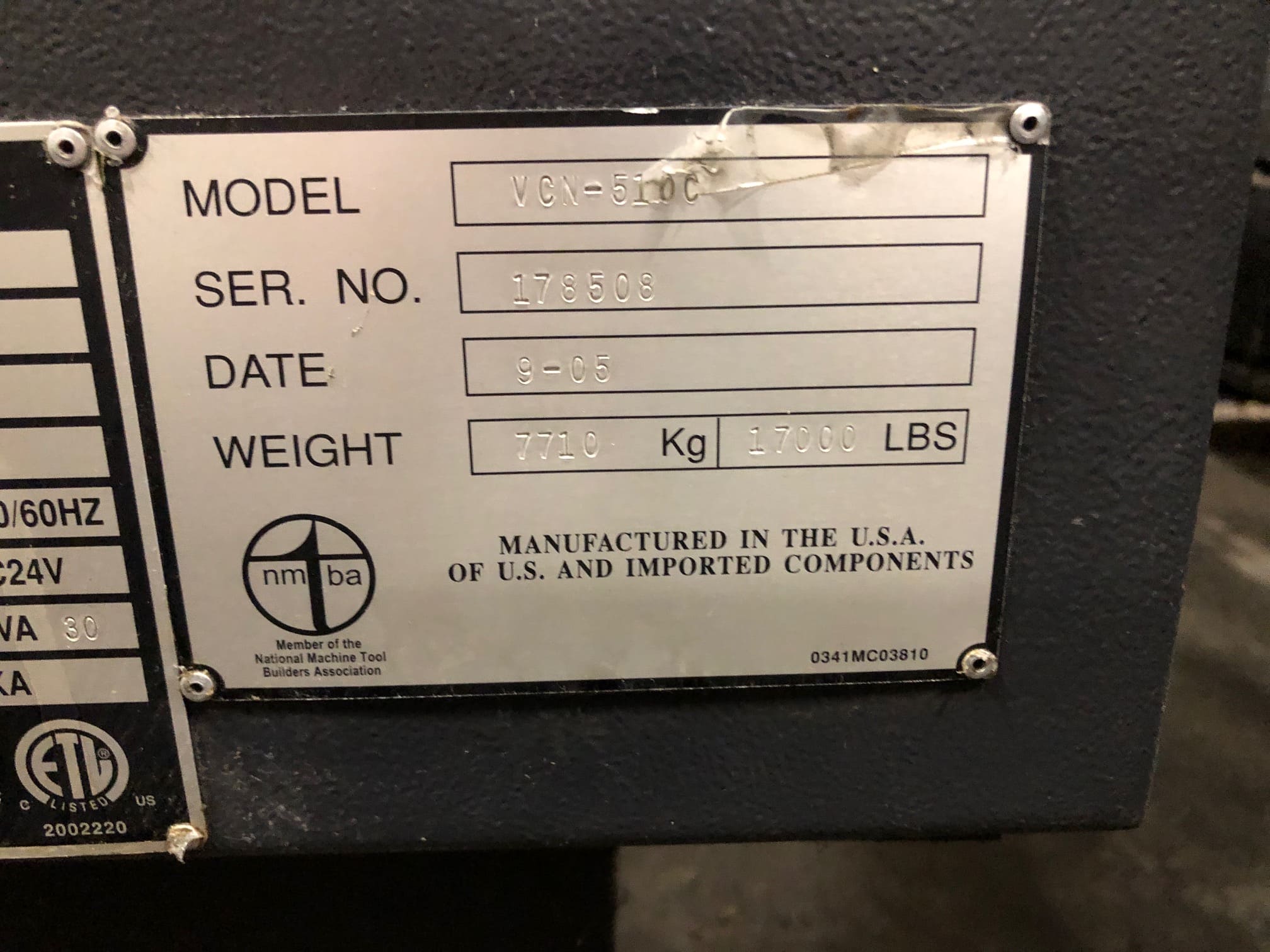

Machine Weight: 17,000 lbs
