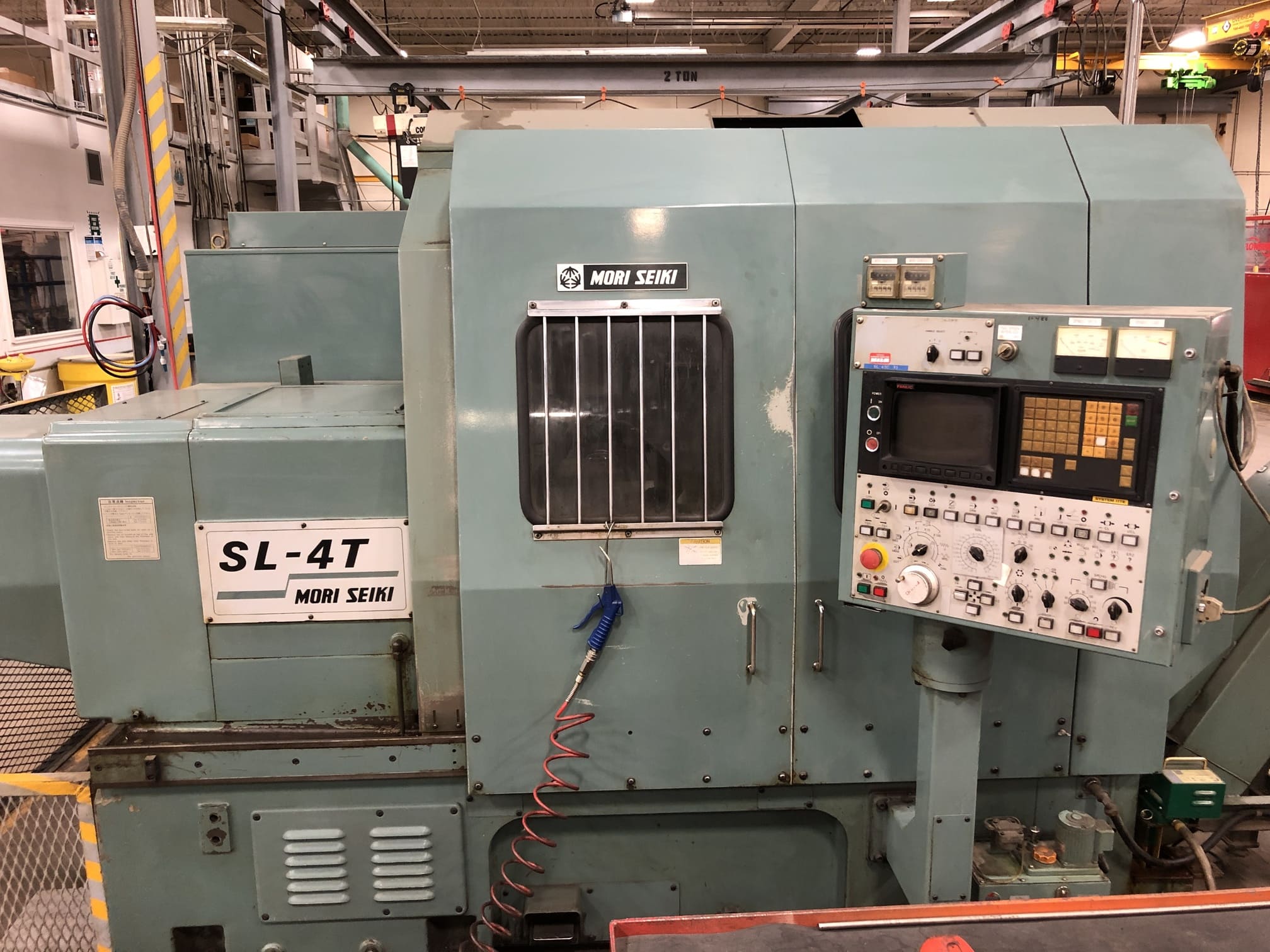

Mori Sieki 3-Axis Universal CNC Lathe
Model SL-4T ( incl. C-axis + driven tools)
Serial No. FS11T9A

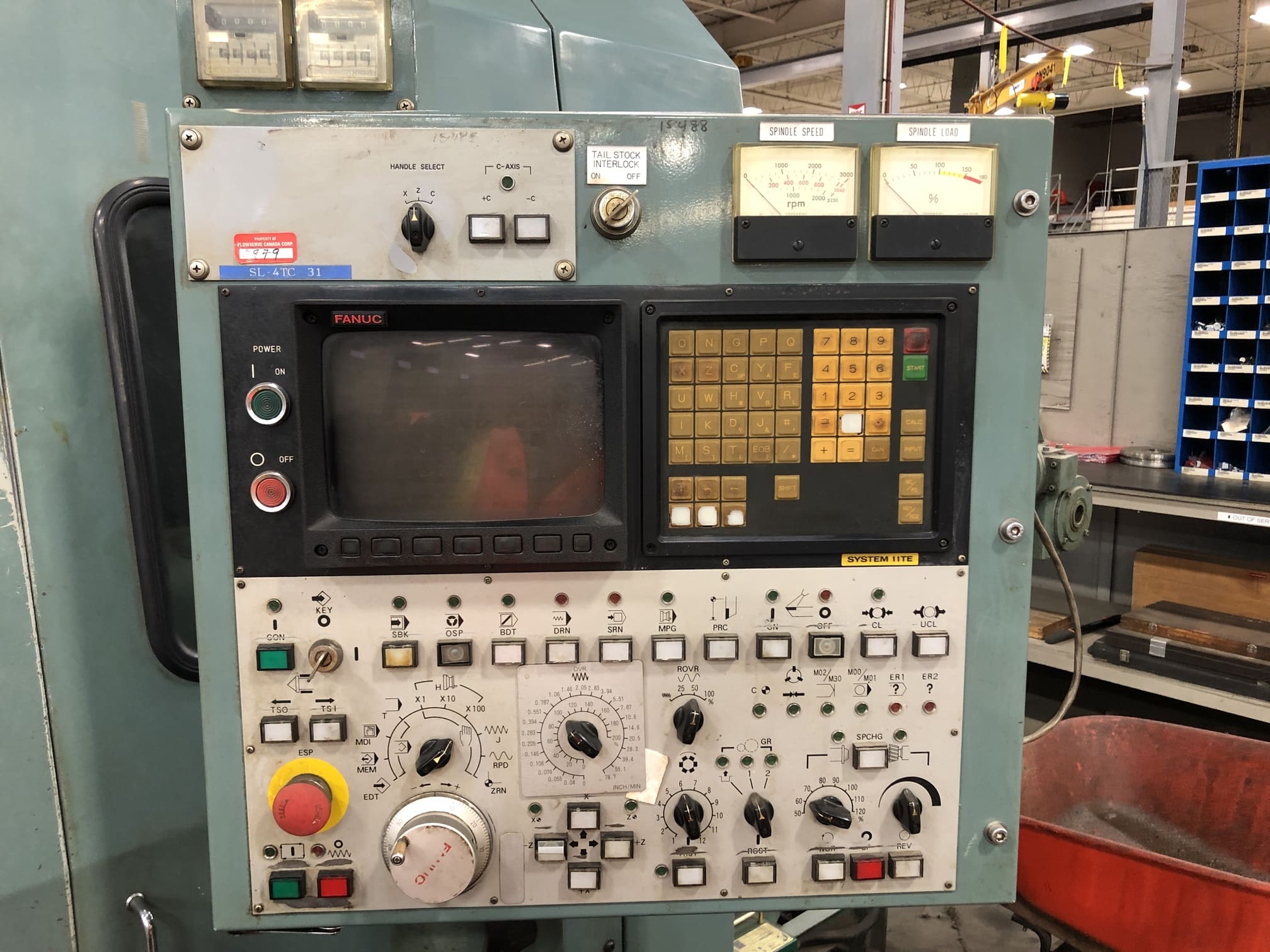

Control: Fanuc 11-TE
Year: 1985
Condition: Clean. Very good. Original owner. Remarkably low hours.
Machine is equipped with:
10” Kitagawa HOH-10K Hydraulic 3 jaw chuck
Extra hard and soft jaws
Standard mounted toolholders
2 radial driven tool holders
Coolant system
Hydraulic Unit
Chip conveyor
Specifications
| Specification | Value |
|---|---|
| Chuck Diameter | 10” |
| Spindle Nose | A2-6 |
| Spindle Bore | 3.03” |
| Bar Capacity | 2.5” |
| Spindle Motor | 15/20 HP |
| Maximum Swing Over Bed | 25.6” |
| – Over Front Cover | 21.7” |
| – Over Cross Slide | 15.4” |
| Maximum Distance Between Centers | 35.4” |
| Cross Travel (X-Axis) | 9.1” |
| Longitudinal Travel (Z-Axis) | 24.8” |
| Maximum Spindle Speed | 20 – 3000 RPM |
| Standard Tool Shank Size | 1” |
| Tool Turret | 12 Position (8 + 4 Rotating Tools) |
| Curvic Coupling Diameter | 11.8” |
| Turret Clamping Force | 9,900 lbs @ 132 PSI |
| Live Tool Motor | 2/3 HP |
| Max Rotary Tool Speed | 2250 RPM |
| Main Spindle Indexing Increments | 2.5° |
| Tailstock Quill Stroke | 3.93” |
| Tailstock Quill Diameter | 4.3” |
| Tailstock Taper | MT#4 |
| Ballscrew Diameter – X | 36 mm |
| Ballscrew Diameter – Z | 40 mm |

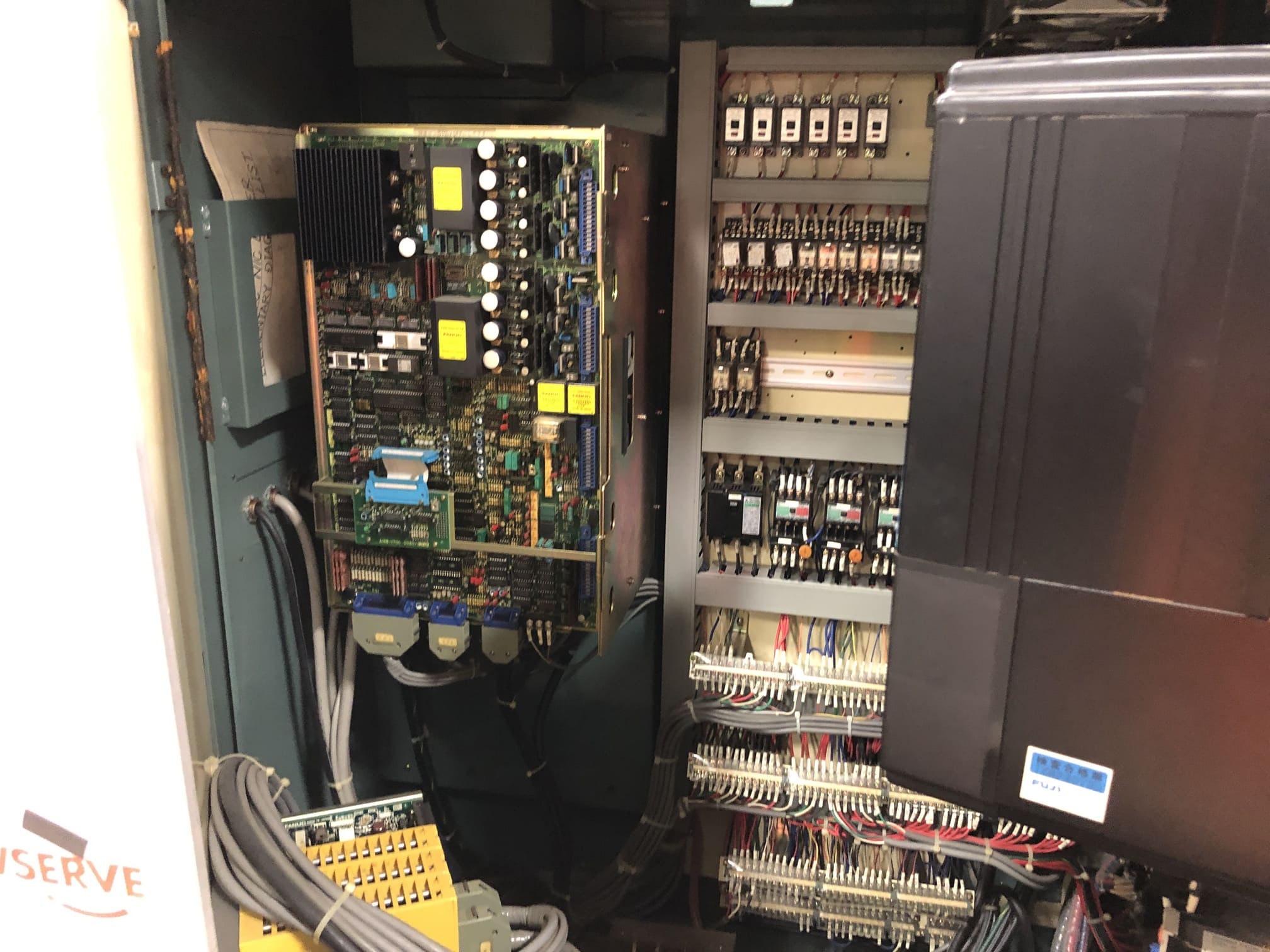

| Electrics (Connected Load) | 44 kVA; 220V / 3PH / 60Hz |
| Machine Dimensions (L × D × H) | 132” / 168” × 80” × 83” H |
| Weight | 13,000 lbs |
