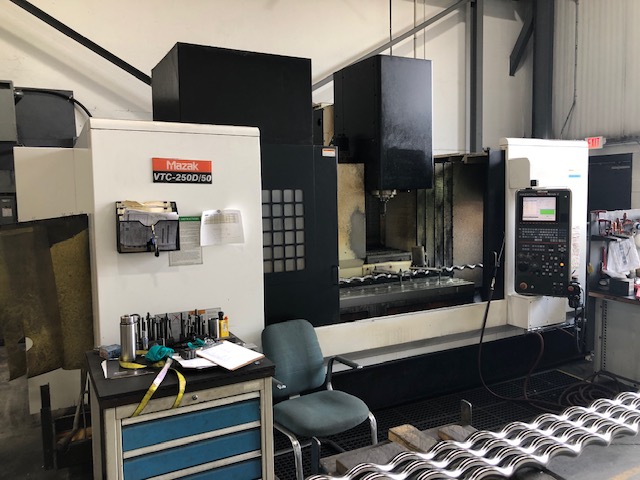

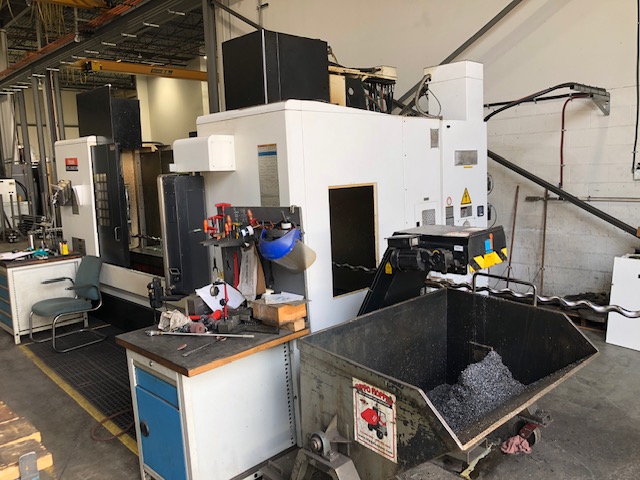

Mazak VTC-250D/50 CNC Vertical Machining Center with 4th Axis
Ref #2; Serial No. 255486
Control: Mazatrol Matrix Nexus 2
Year: 2014-07

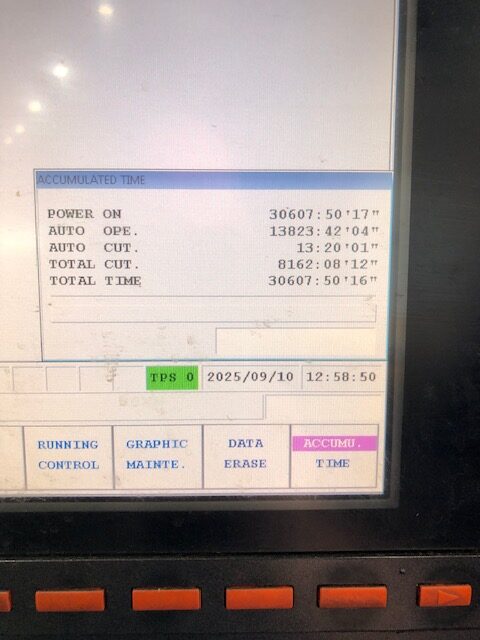

Hours: 8162 total cut; 30607 power on
Equipped With:

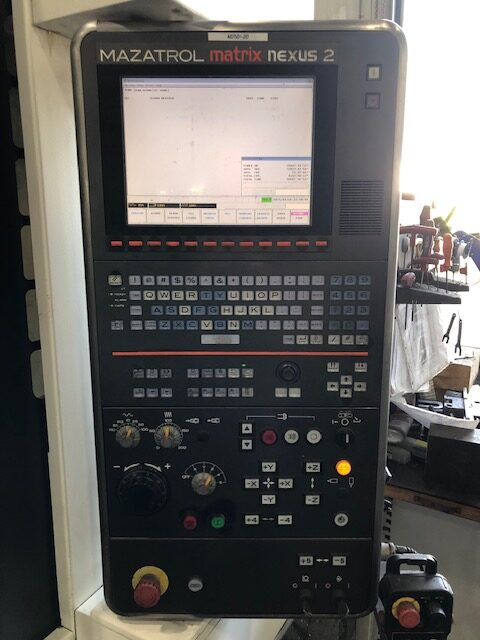

– Mazatrol Matrix Nexus 2 Control

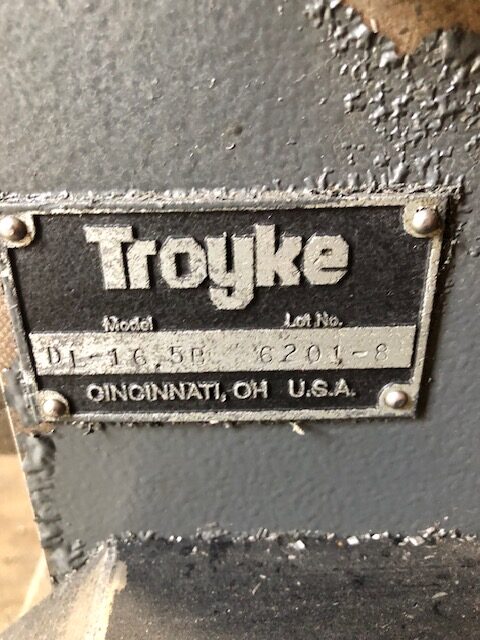

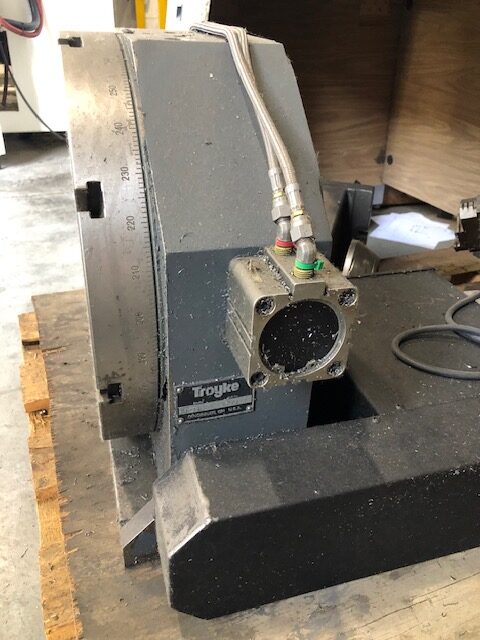

– Troyke DL-16.5B 4th axis rotary table (16-1/2” dia with 6-1/2” thru-hole) and tailstock
– Spindle “C-Axis” 0.001 degree incremental index/clamping for broaching

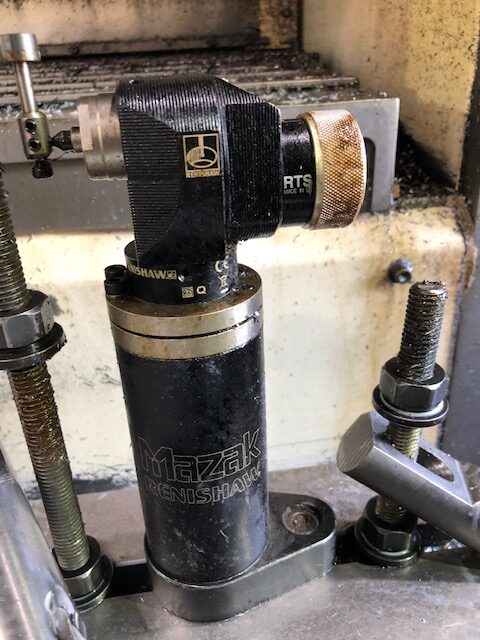

– Mazak Renishaw RTS (Radio Tool Setter)
– Mazak Renishaw Workpiece probe software (probe to be confirmed)
– High pressure coolant thru spindle
– Mayfran Chip Conveyor
– Coolant Tank

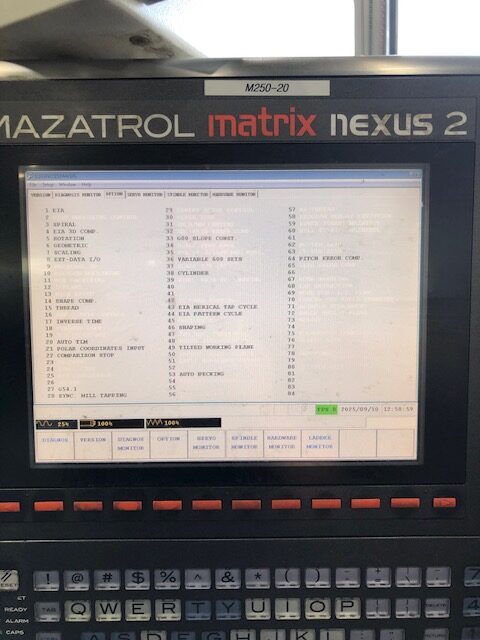

– Control Options List on request
Specifications
Mazak VTC-250D/50 CNC Vertical Machining Center with 4th Axis
Ref #2; Serial No. 255486
Control: Mazatrol Matrix Nexus 2
Year: 2014-07
Hours: 8162 total cut; 30607 power on
Specifications:
Controlled Axis: 4
X-axis travel: 69.3”
Y-axis travel: 25”
Z-axis travel: 25.6”
Min/Max distance spindle nose to table: 7.1” – 32.2”
Table size: 82.7” x 25”
Maximum weight on table: 2778 lbs.
Spindle taper: CAT-50
Spindle Speeds: 6,000 RPM (2-range)
Spindle Motor: 30 HP
ATC Capacity: 24
Max tool diameter x length: 4.3” x 13.7”
Max tool weight: 17.8 lbs.

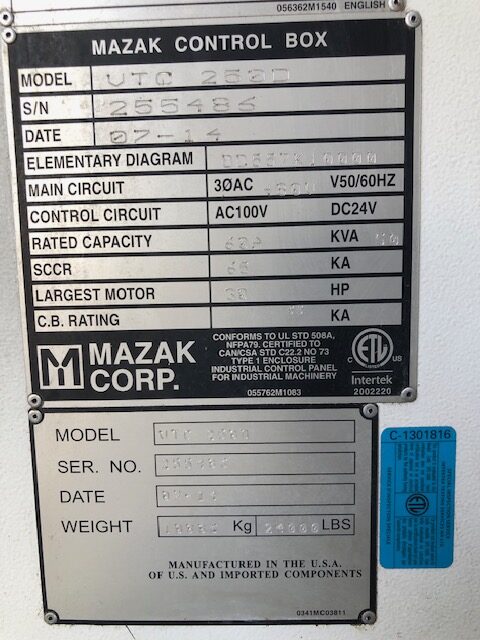

Electrical requirements: 480 Volt; 60A; 50 KVA
Machine Dimensions, L x D x H: 171″ x 134″ x 105″ H
Machine Weight: 24,000 lbs
