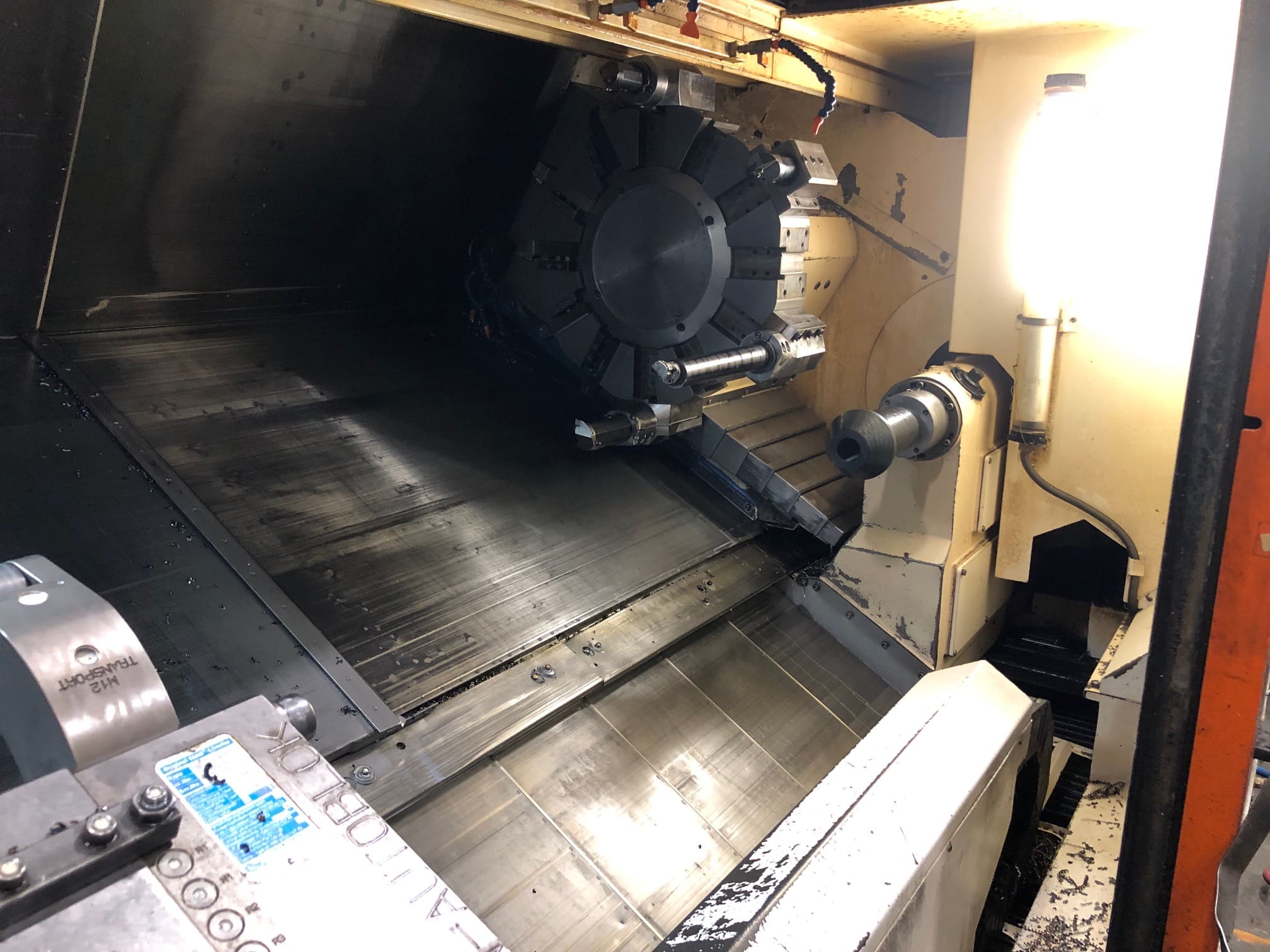

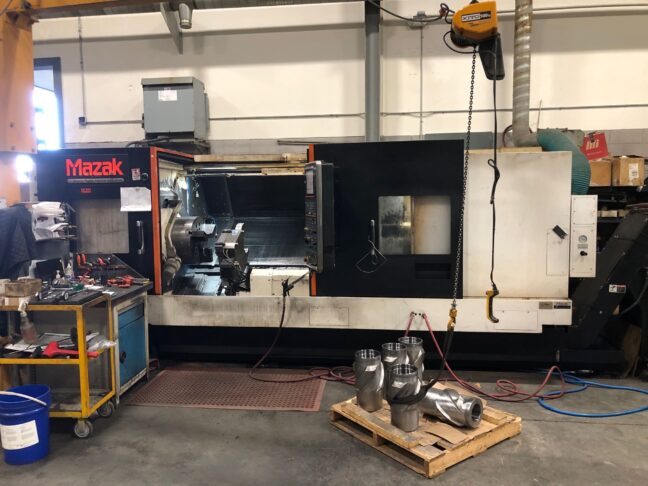

Mazak QTN-450 II-2000 CNC Turning Center
Ref #23; Serial No. 238303
Control: Mazatrol Matrix Nexus 2
Year: 2012-04

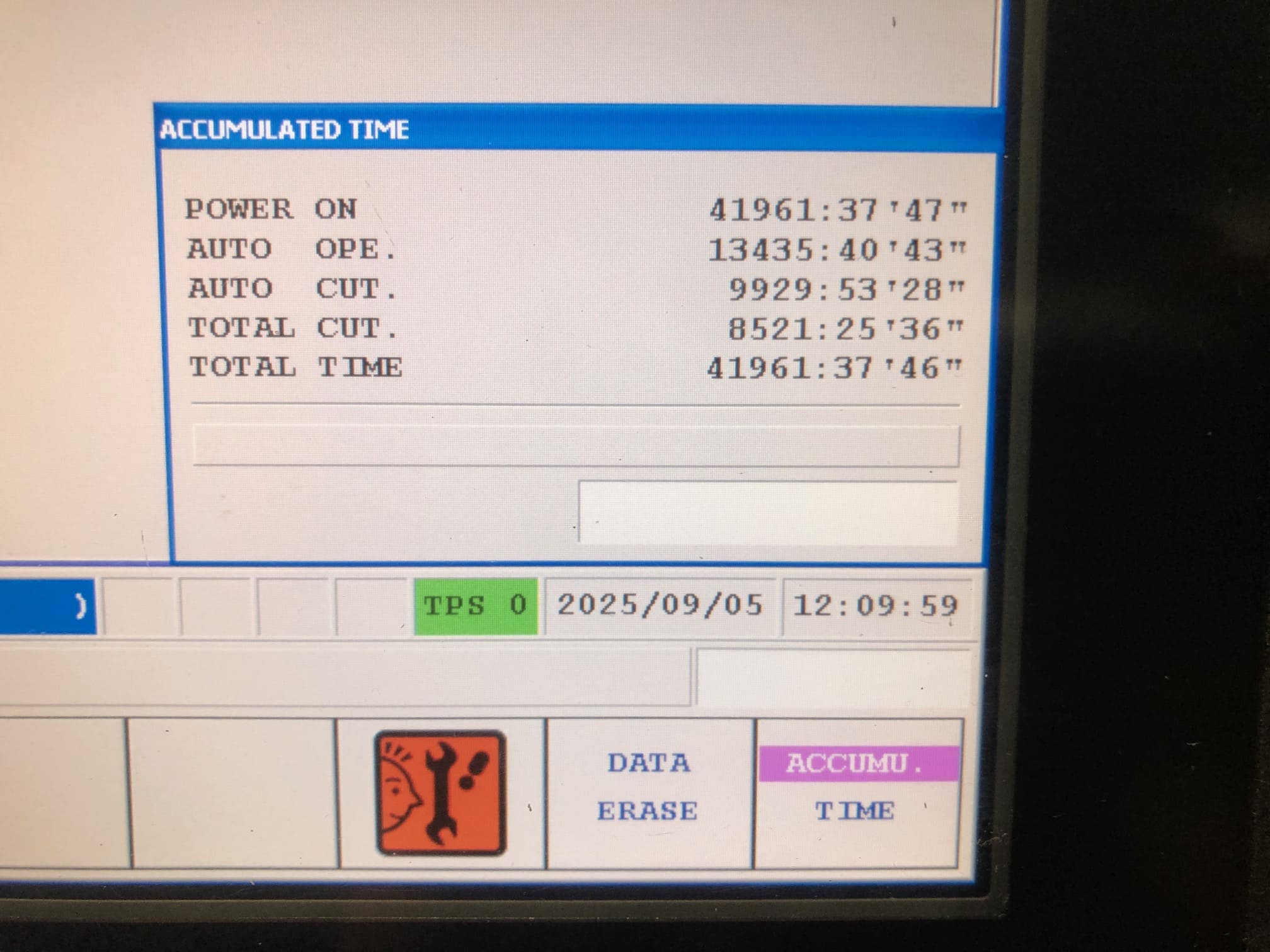

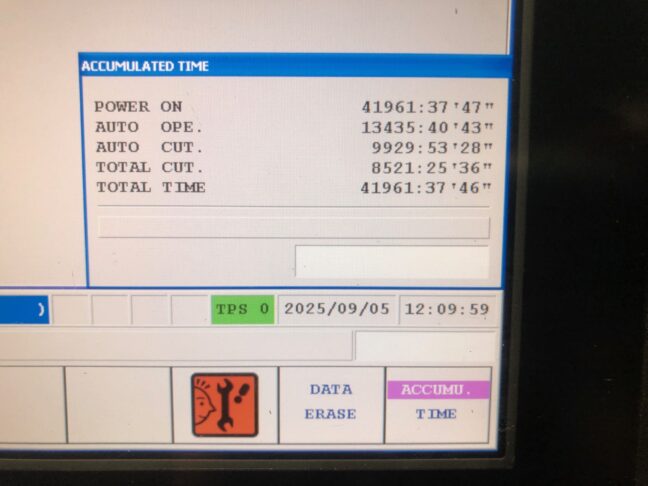

Hours: 8521 total cut; 41961 power on
Equipped With:

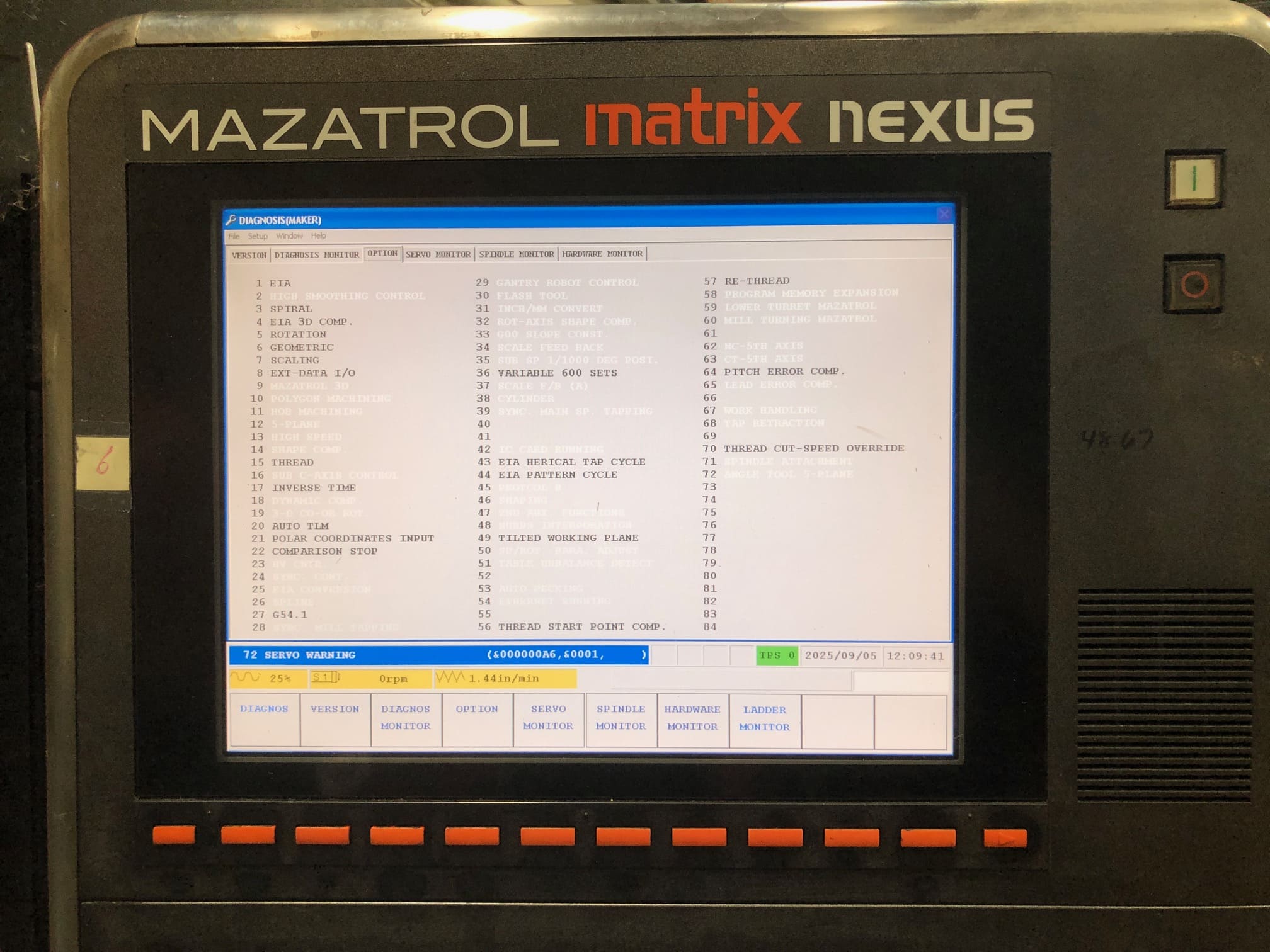

– Mazatrol Matrix Nexus Control

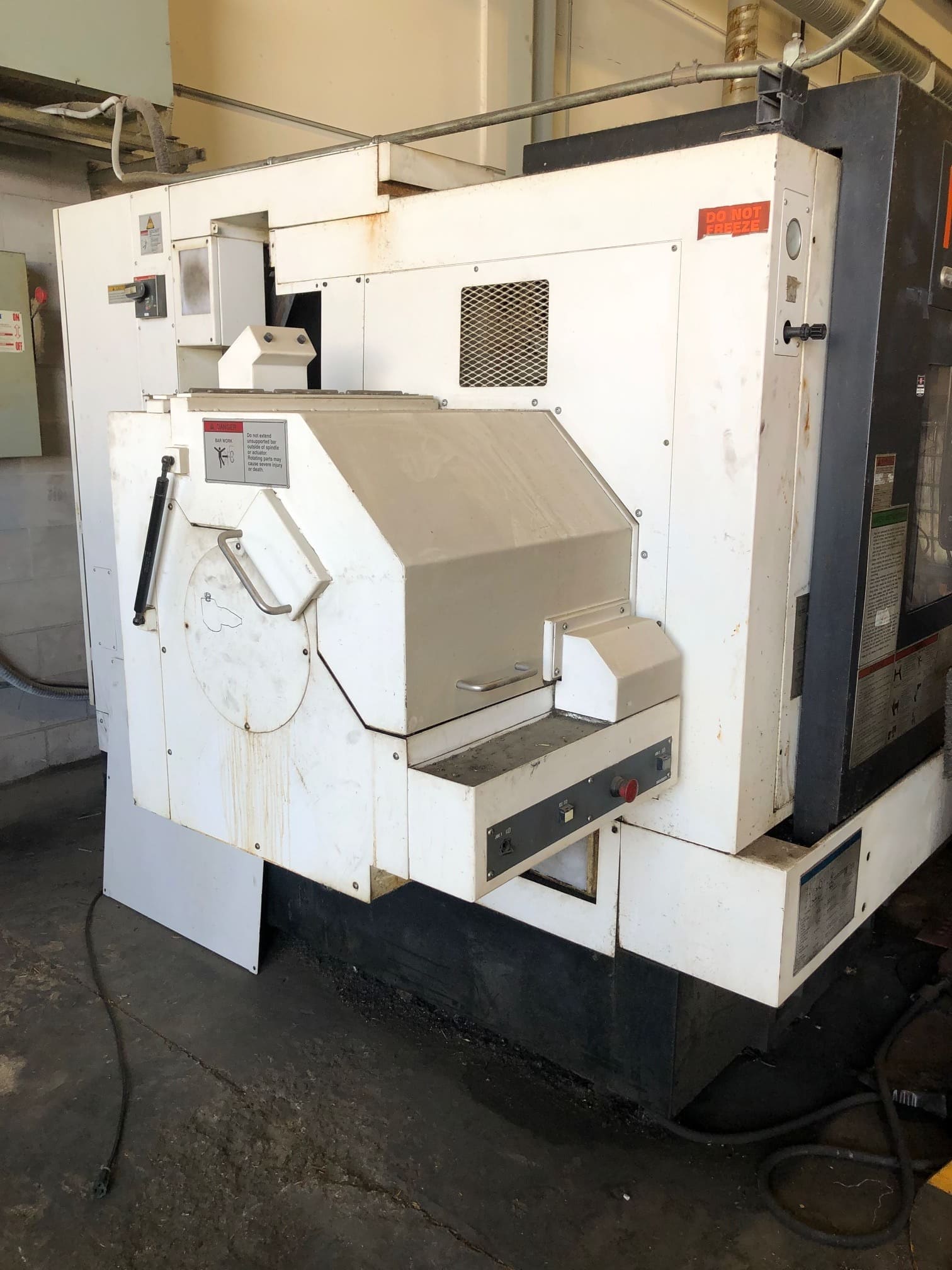

– Chip Conveyor
– Coolant Tank
– Tool Presetter
– Tailstock

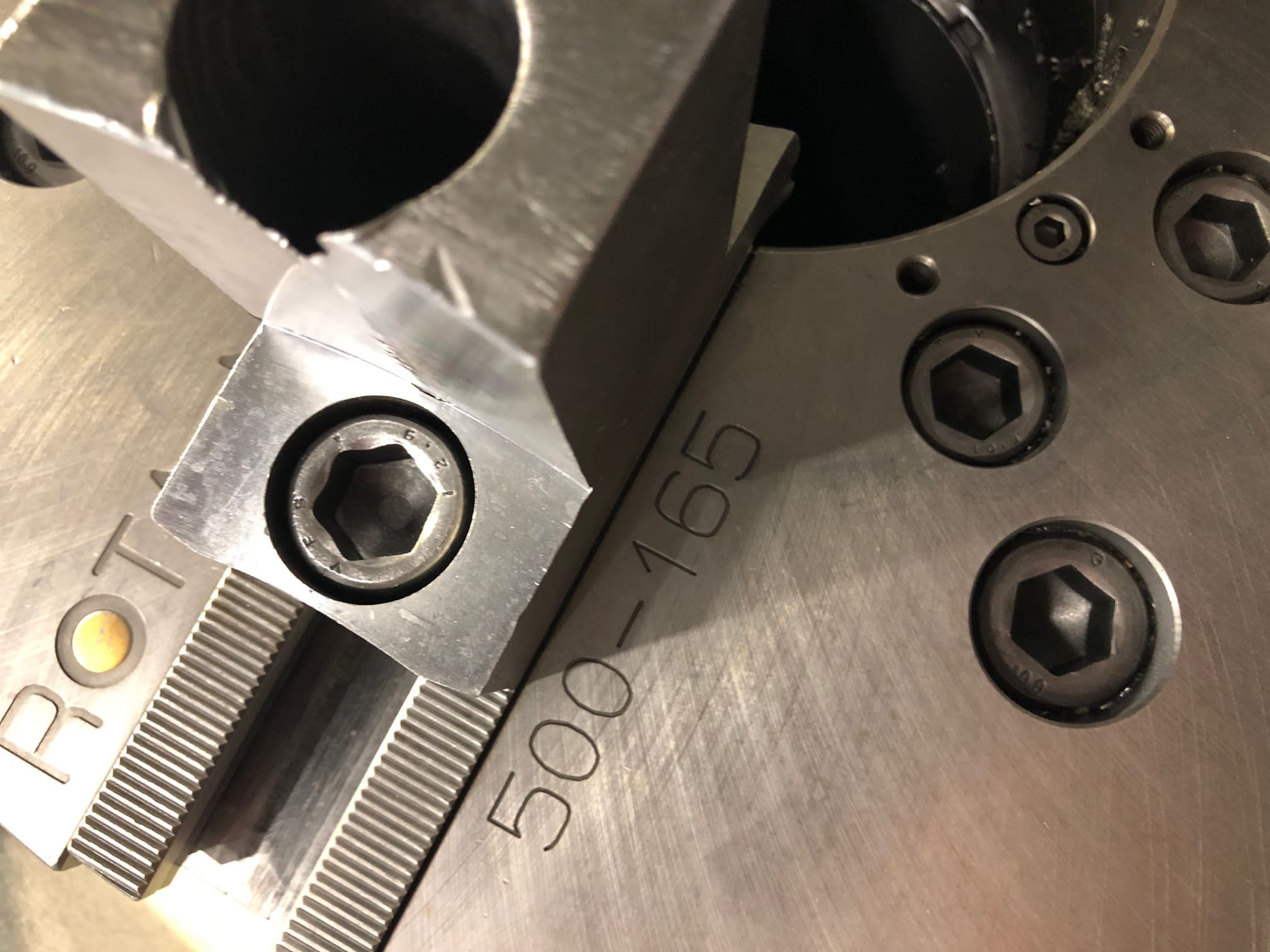

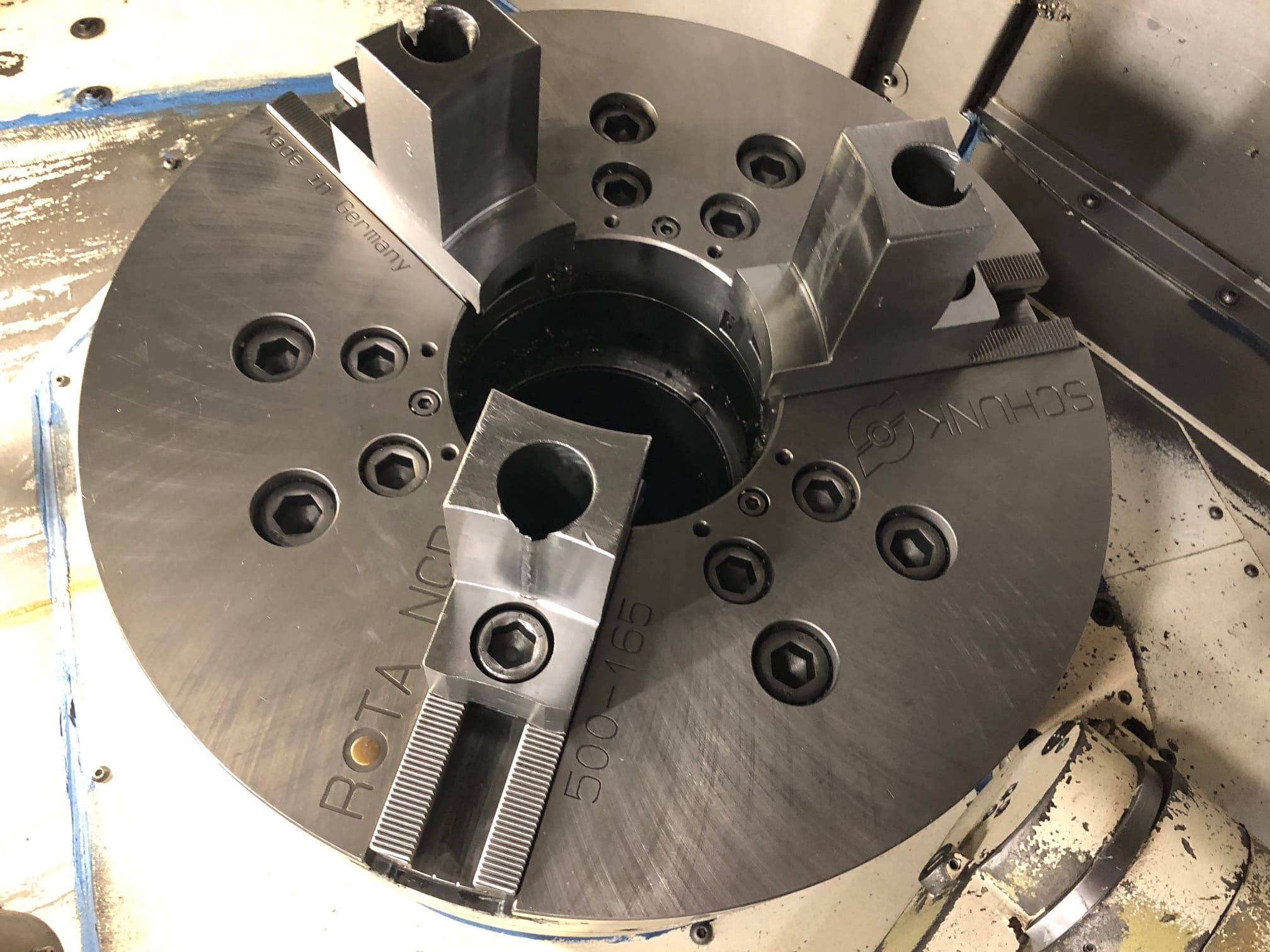

– Schunk Rota NCD-500-165 Hydraulic Chuck

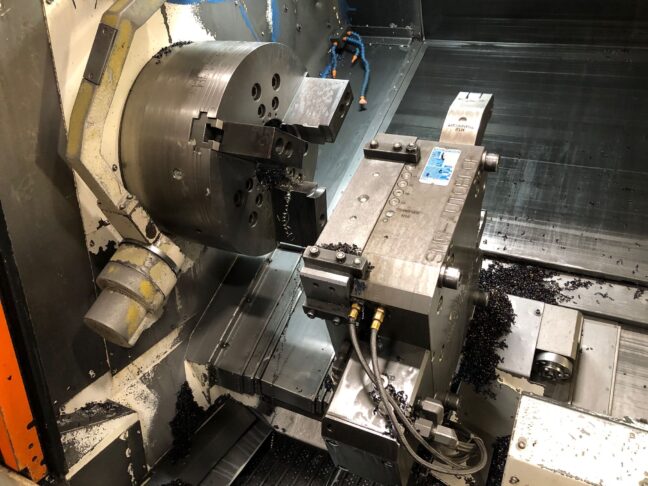

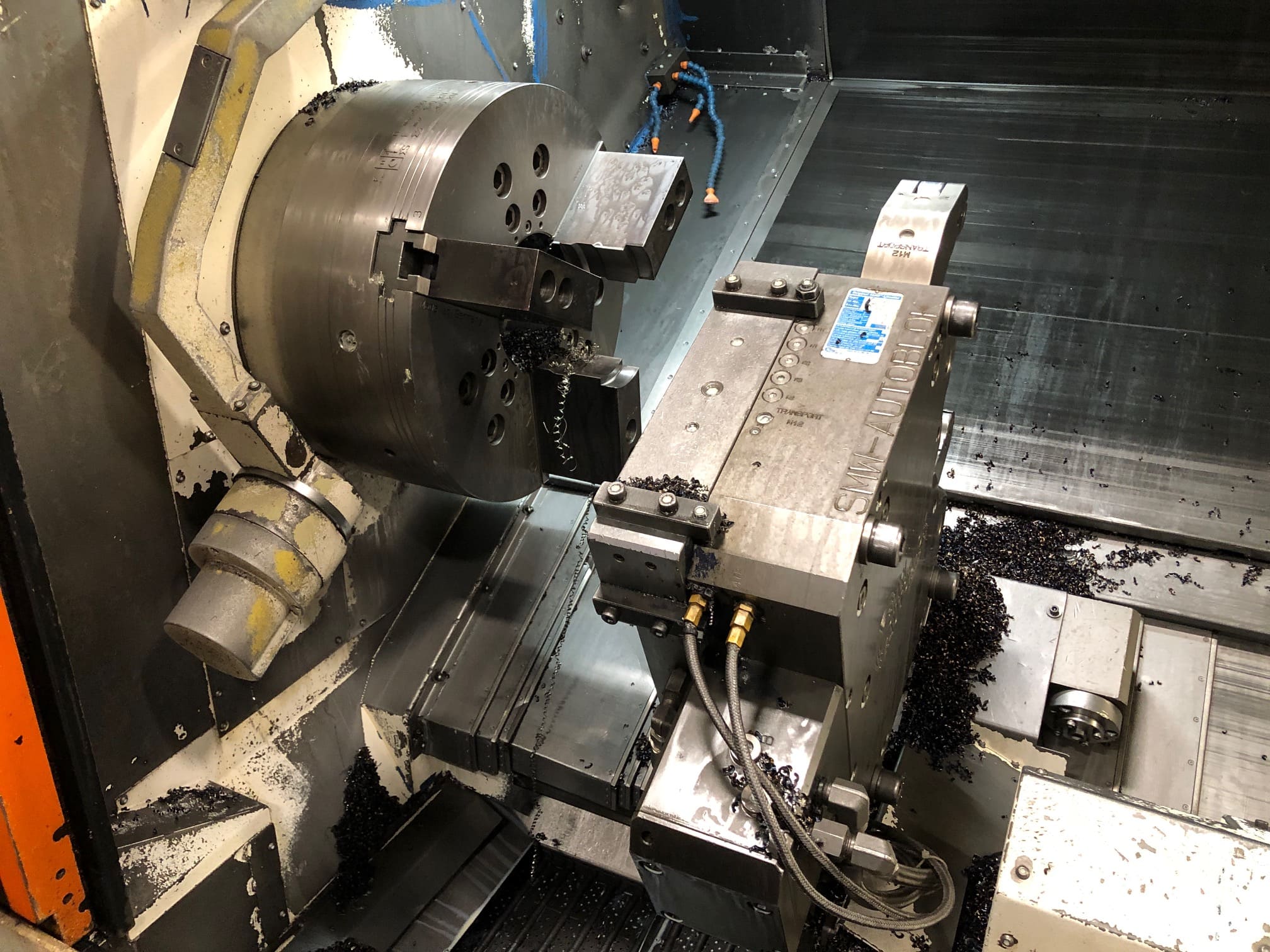

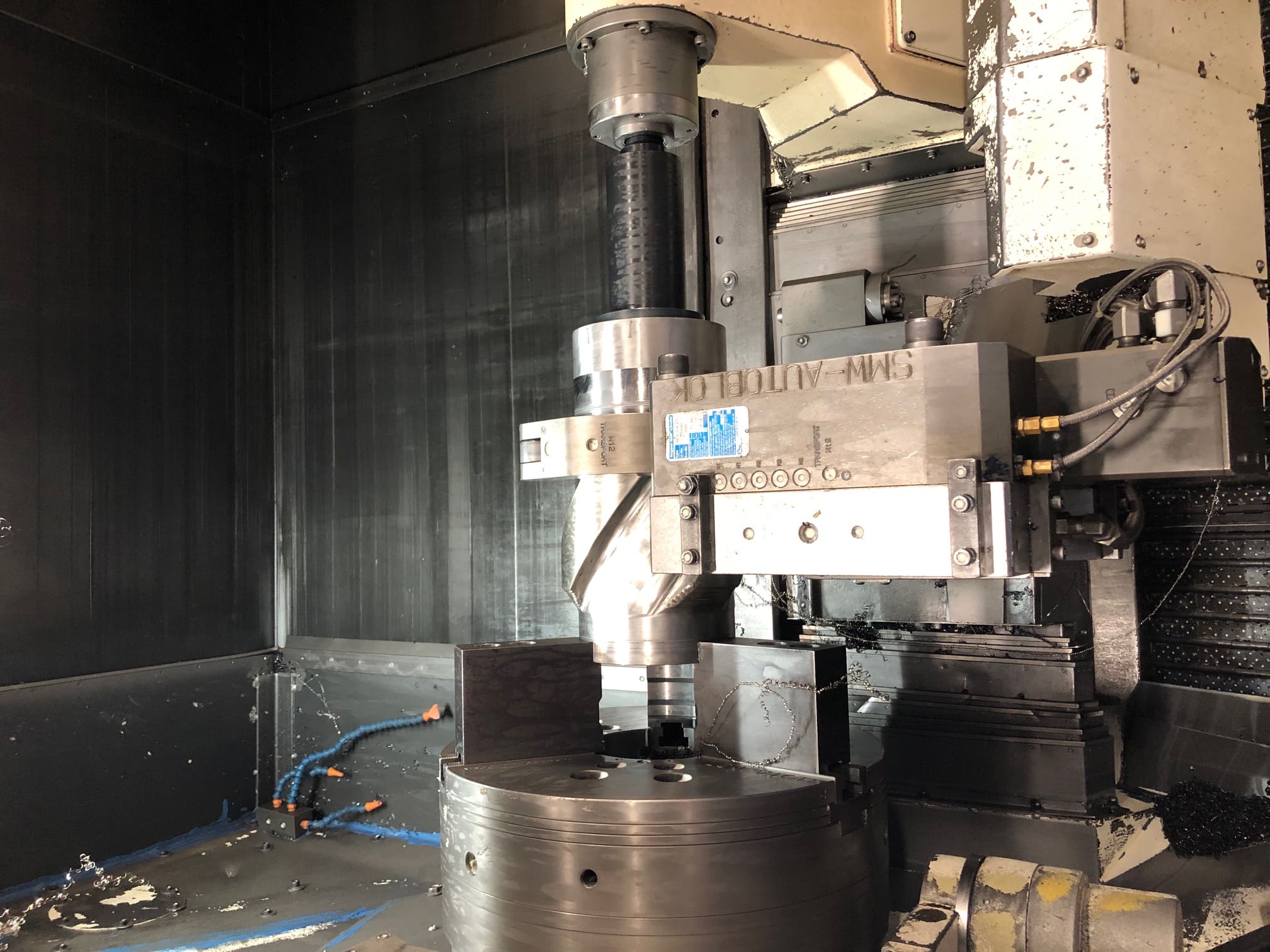

– SMW Autoblok SLU-X-4-ZS Hydraulic Steady Rest, 30-245 mm capacity
– Control Options List on request
Specifications
Mazak QTN-450 II-2000 CNC Turning Center
Ref #22; Serial No. 238303
Control: Mazatrol Matrix Nexus 2
Year: 2012-04
Hours: 8521 total cut; 41961 power on
Specifications:
Controlled Axis: 2
Swing: 33.27″
Turning Diameter: 23″
Center Distance: 80″
Chuck Size: 20″ with 6.5” thru-hole
Bar Capacity with air chuck: 7.24″ (184mm)
X-Axis Travel: 12.13″
Z-Axis Travel: 124.75″
Spindle Speeds: 2,000 RPM
Spindle Motor: 50 HP
Turret Capacity: 12
Tailstock: Yes
Electrical requirements: 208 Volt; 215A; 78 KVA
Machine Dimensions, L x D x H: 264″ x 104″ x 84″
Machine Weight: 23,000 lbs
