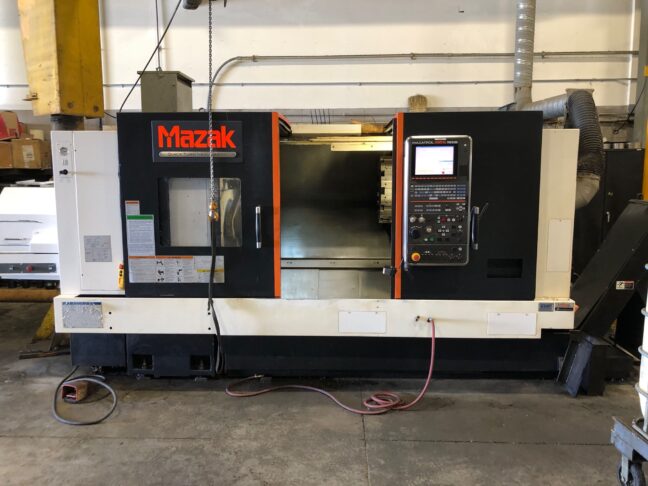

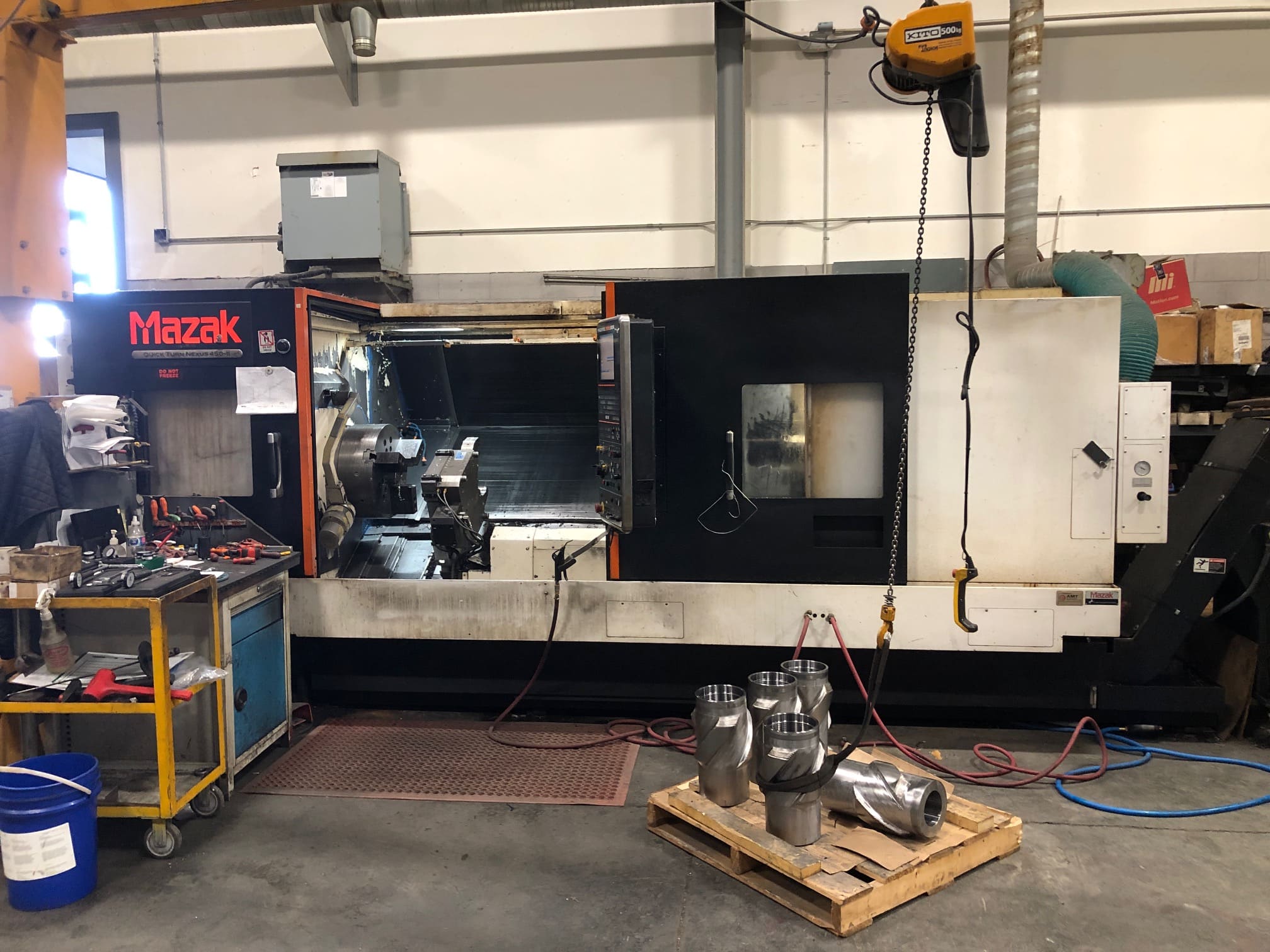

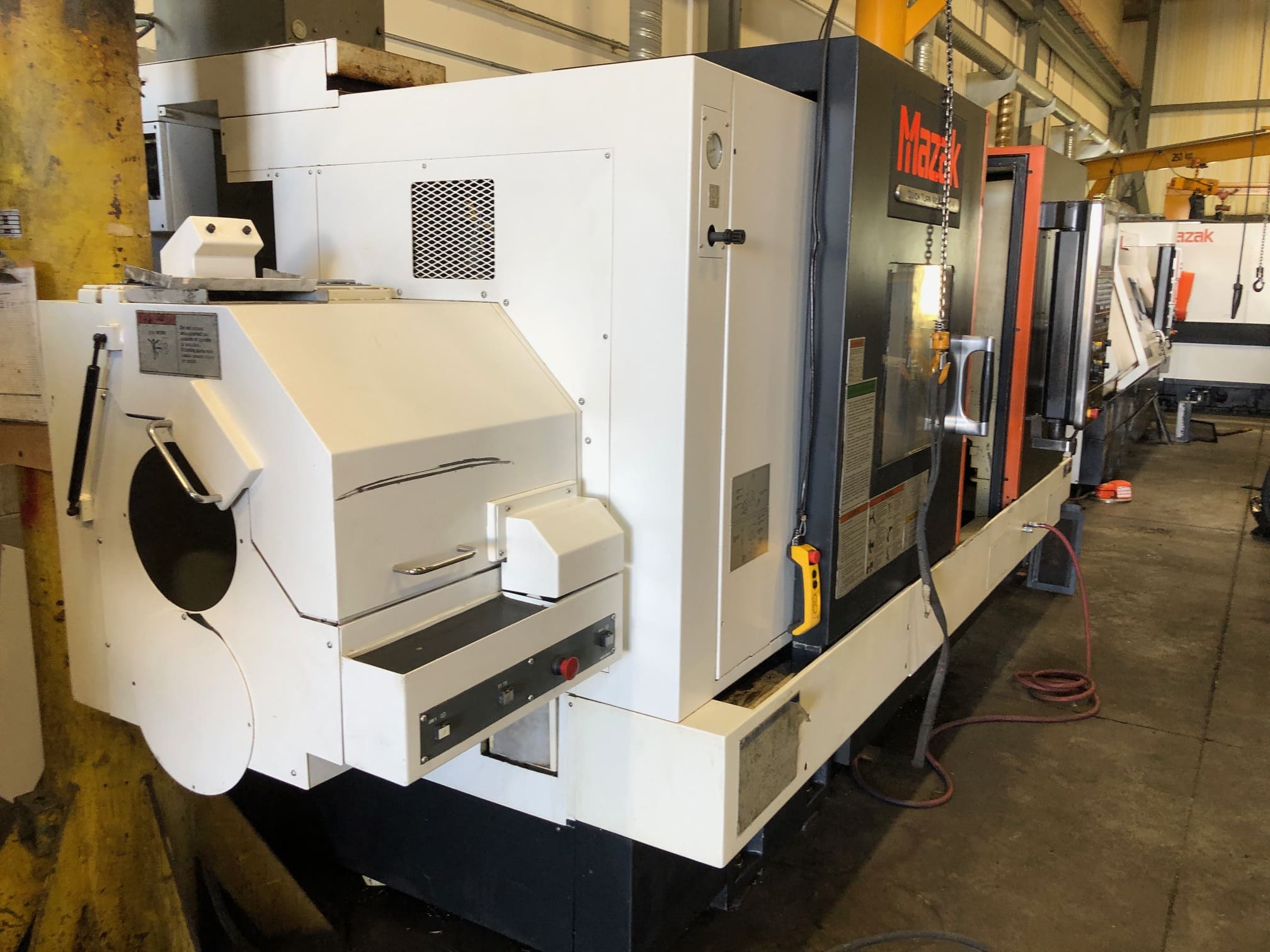

Mazak QTN-450 II-1000 CNC Turning Center

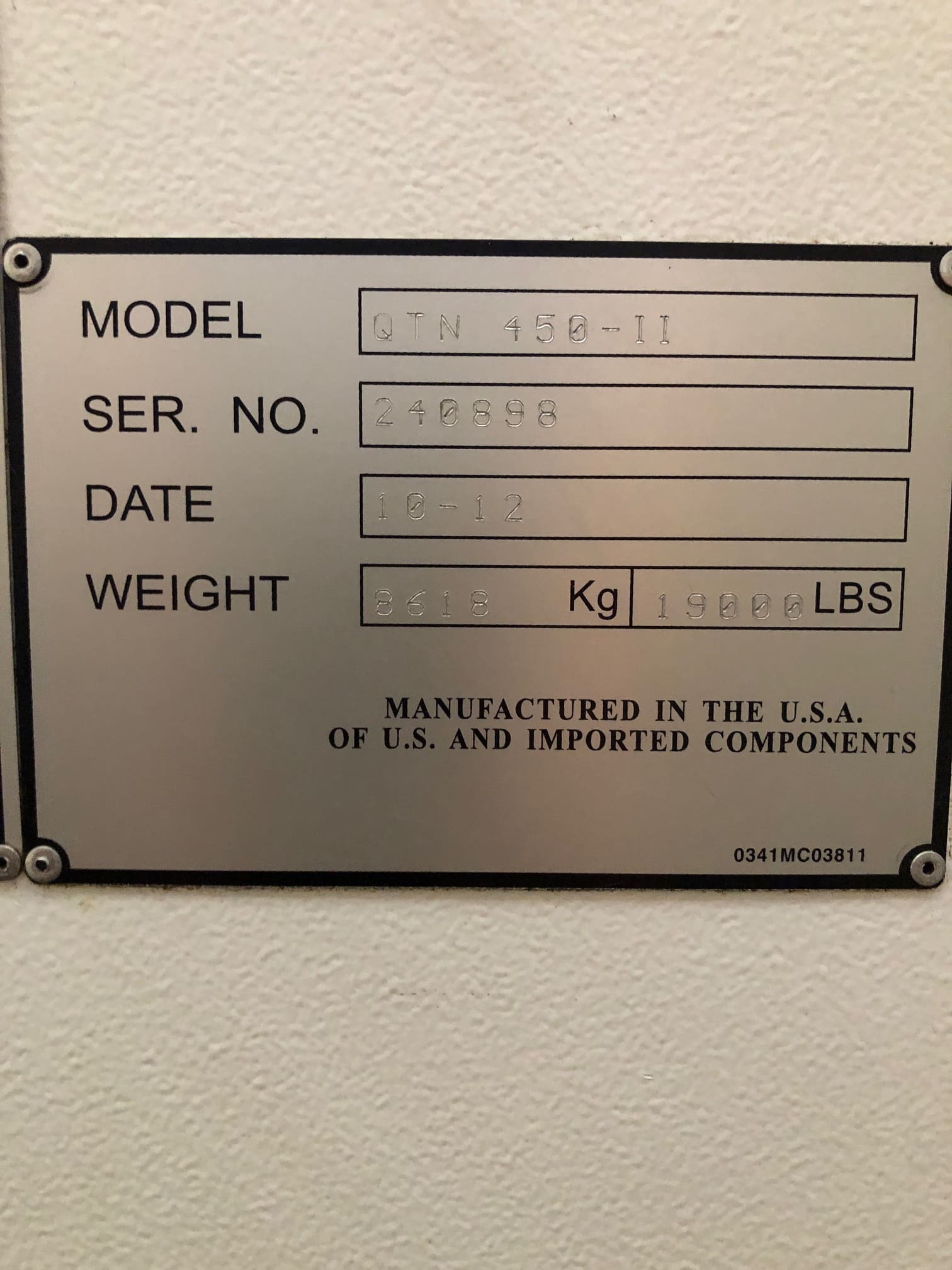

Ref #22; Serial No. 240898
Control: Mazatrol Matrix Nexus
Year: 2012-10

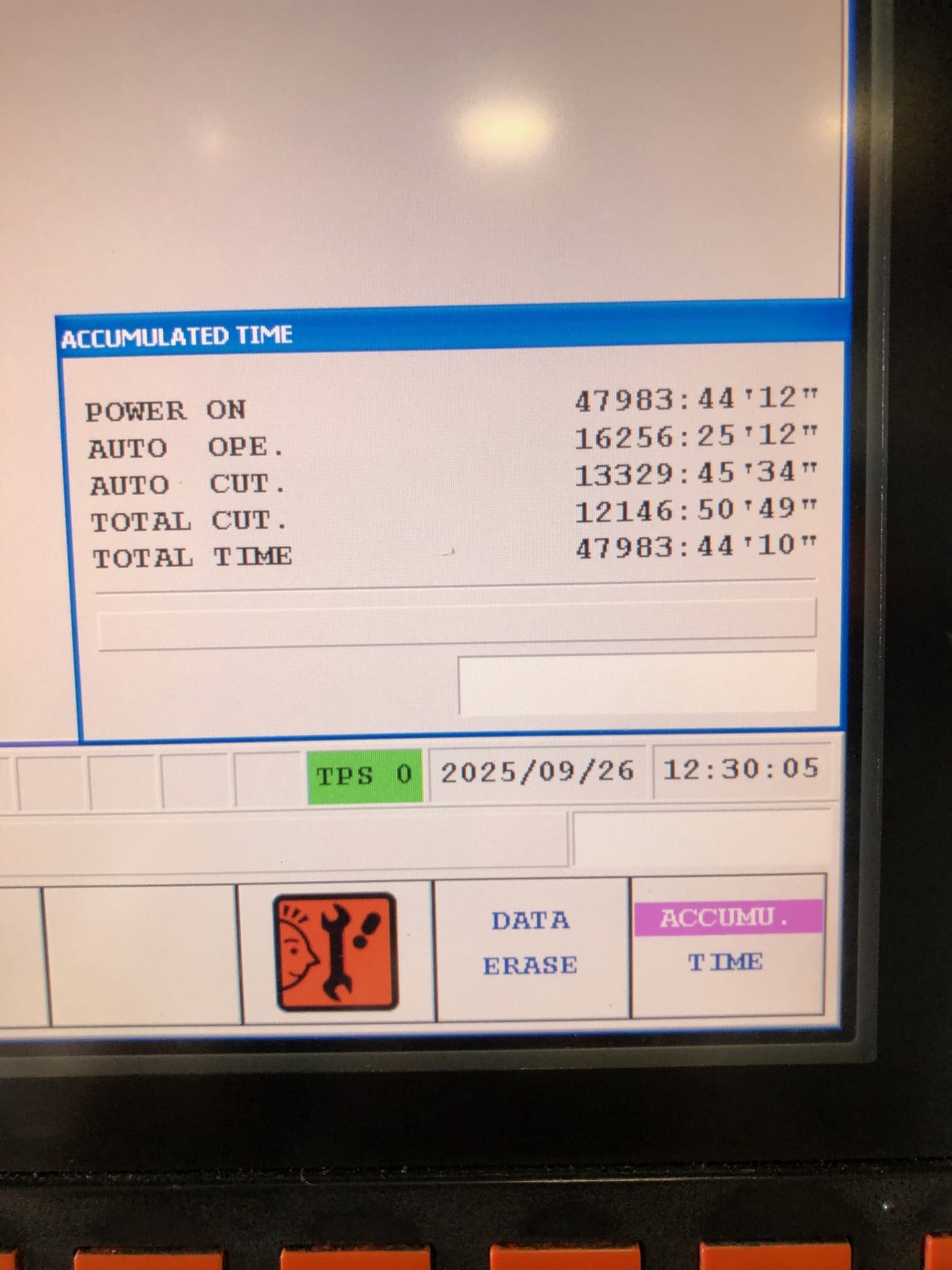

Hours: 12,146 total cut; 47,983 power on
Equipped With:

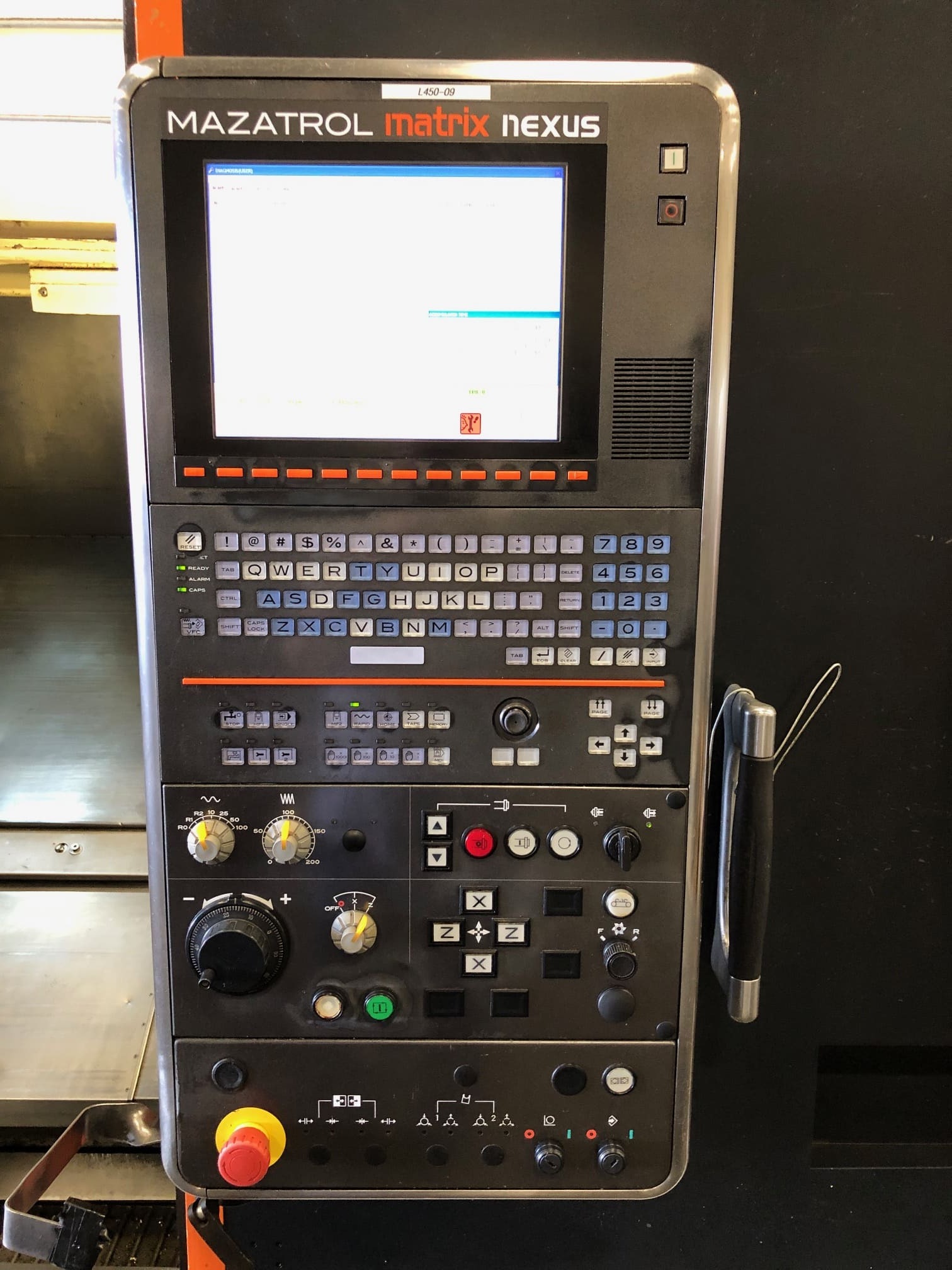

– Mazatrol Matrix Nexus Control

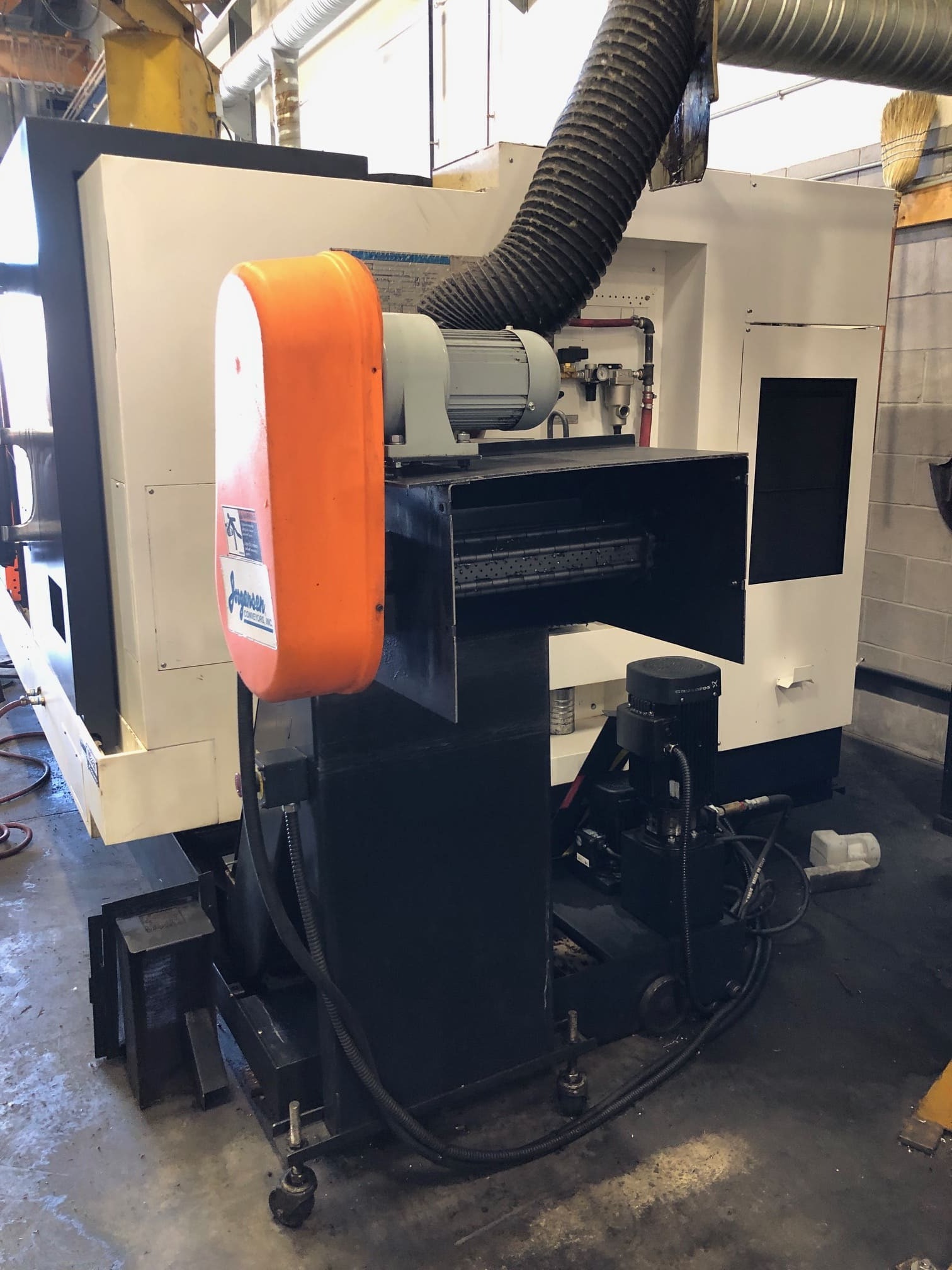

– Chip Conveyor
– Coolant Tank
– Tool Presetter
– Tailstock

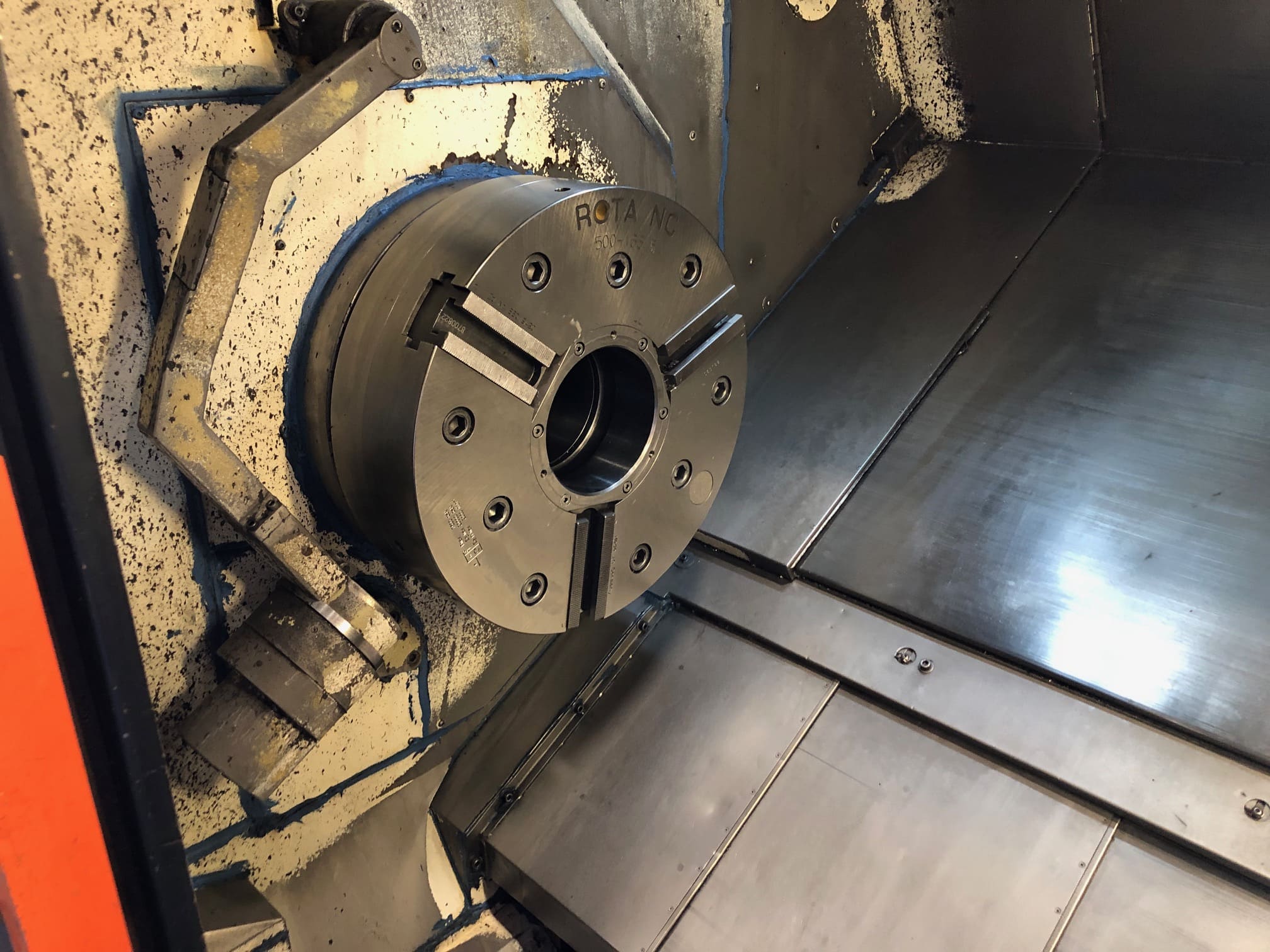

– Schunk Rota NC-500-166.5 Hydraulic Chuck

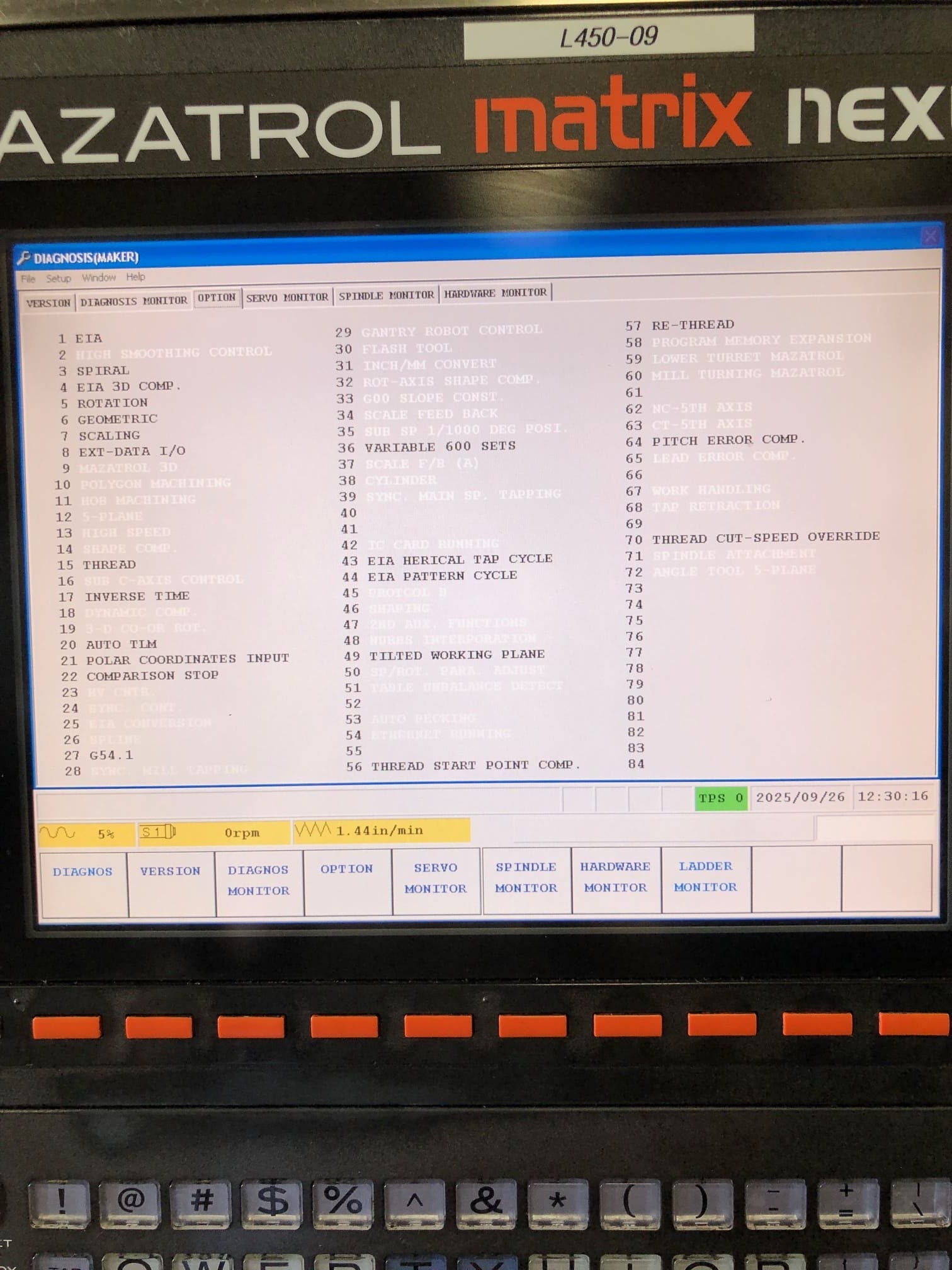

– Control Options List on request
Specifications
Mazak QTN-450 II-1000 CNC Turning Center
Ref #22; Serial No. 240898
Control: Mazatrol Matrix Nexus
Year: 2012-10
Hours: 12,146 total cut; 47,983 power on
Specifications:
Controlled Axis: 2
Swing: 33.27″
Turning Diameter: 23″
Center Distance: 40″
Chuck Size: 20″ with 6.5” thru-hole
Bar Capacity with air chuck: 7.24″ (184mm)
X-Axis Travel: 12.13″
Z-Axis Travel: 124.75″
Spindle Speeds: 2,000 RPM
Spindle Motor: 50 HP

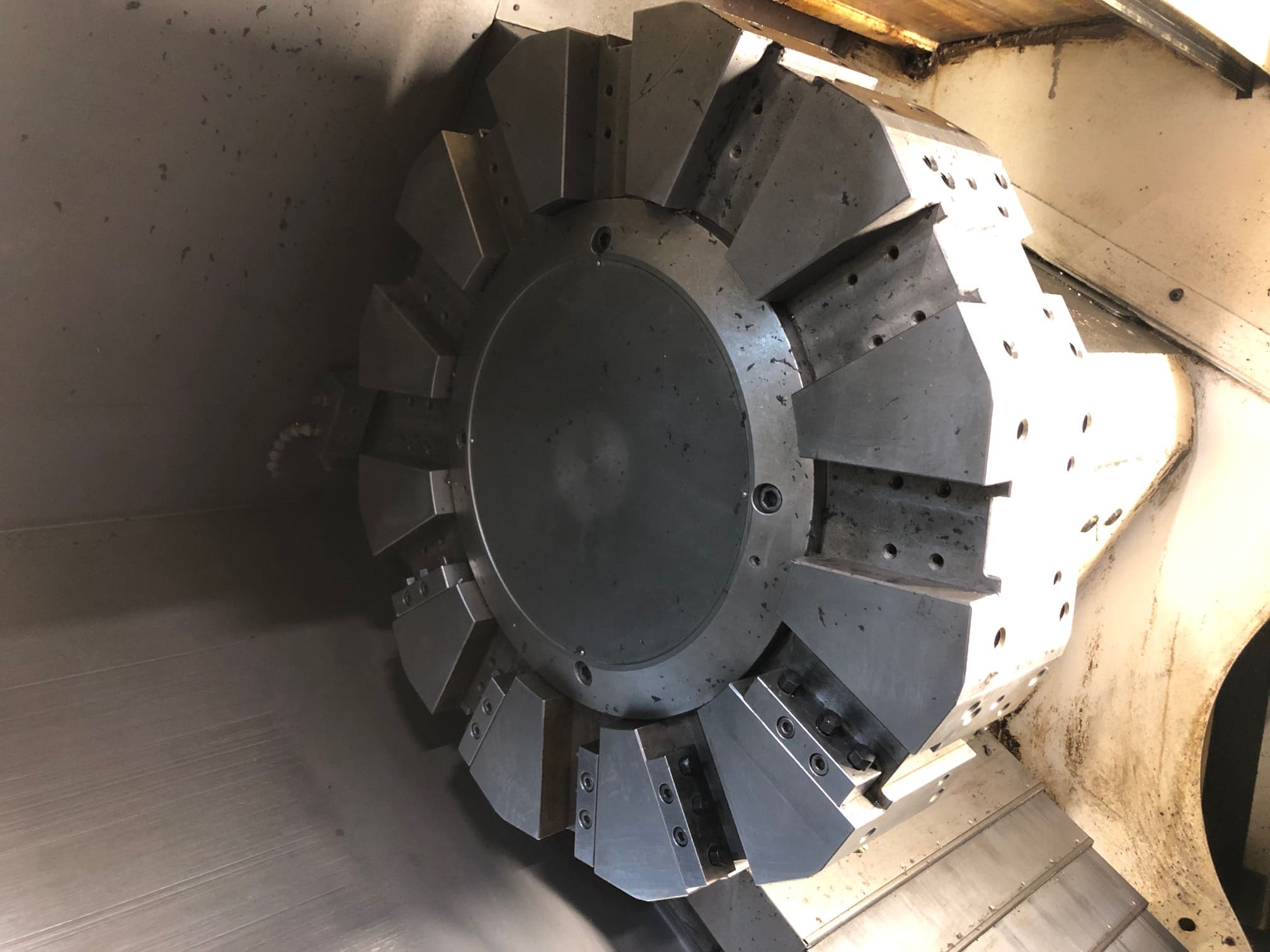

Turret Capacity: 12

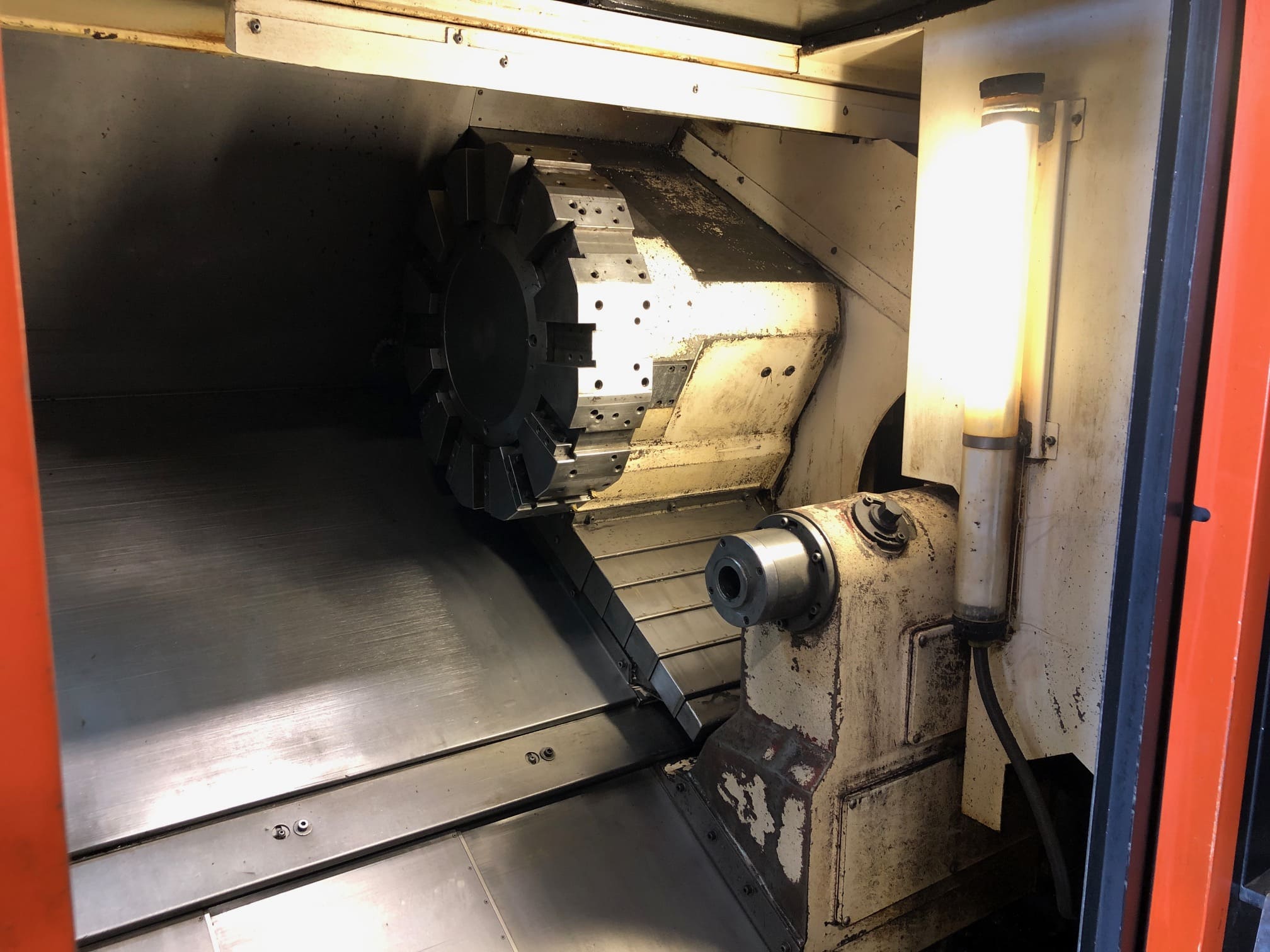

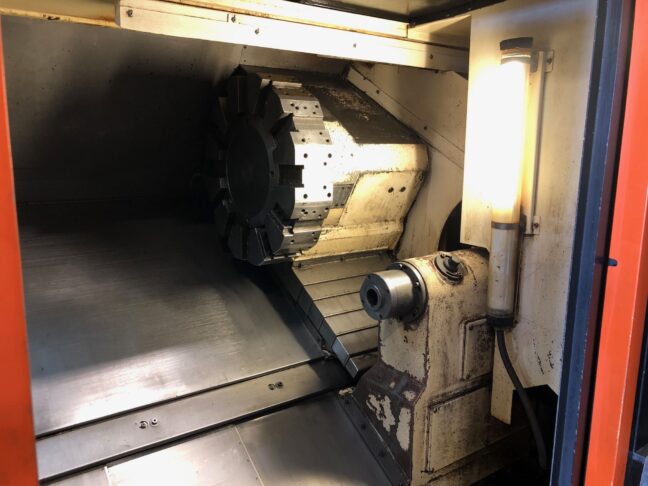

Tailstock: Yes

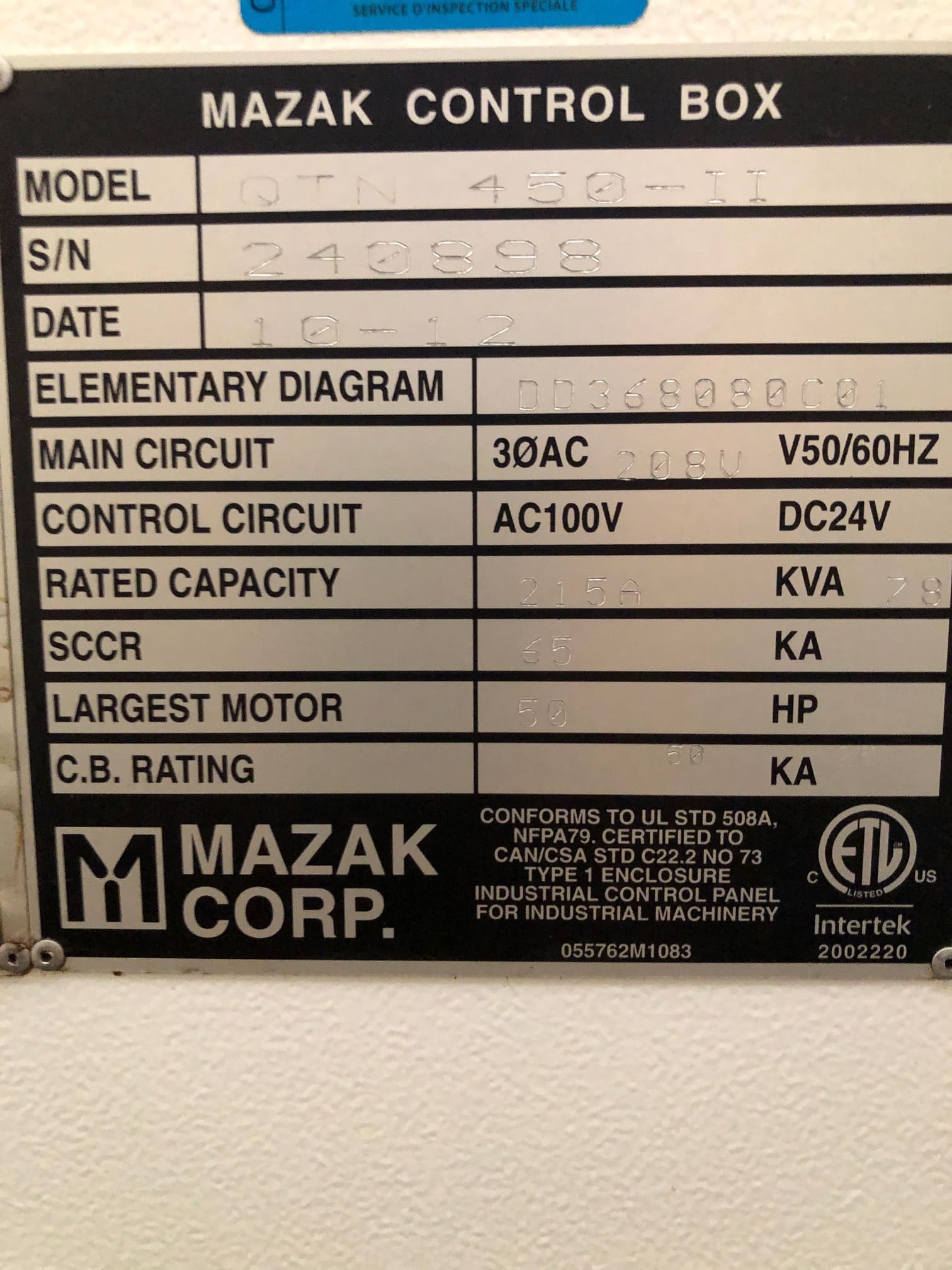

Electrical requirements: 208 Volt; 215A; 78 KVA
Machine Dimensions, L x D x H: 220″ x 104″ x 84″
Machine Weight: 19,000 lbs
