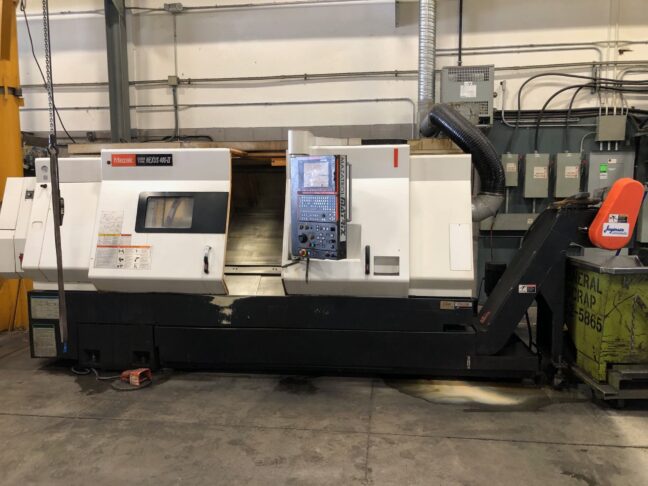

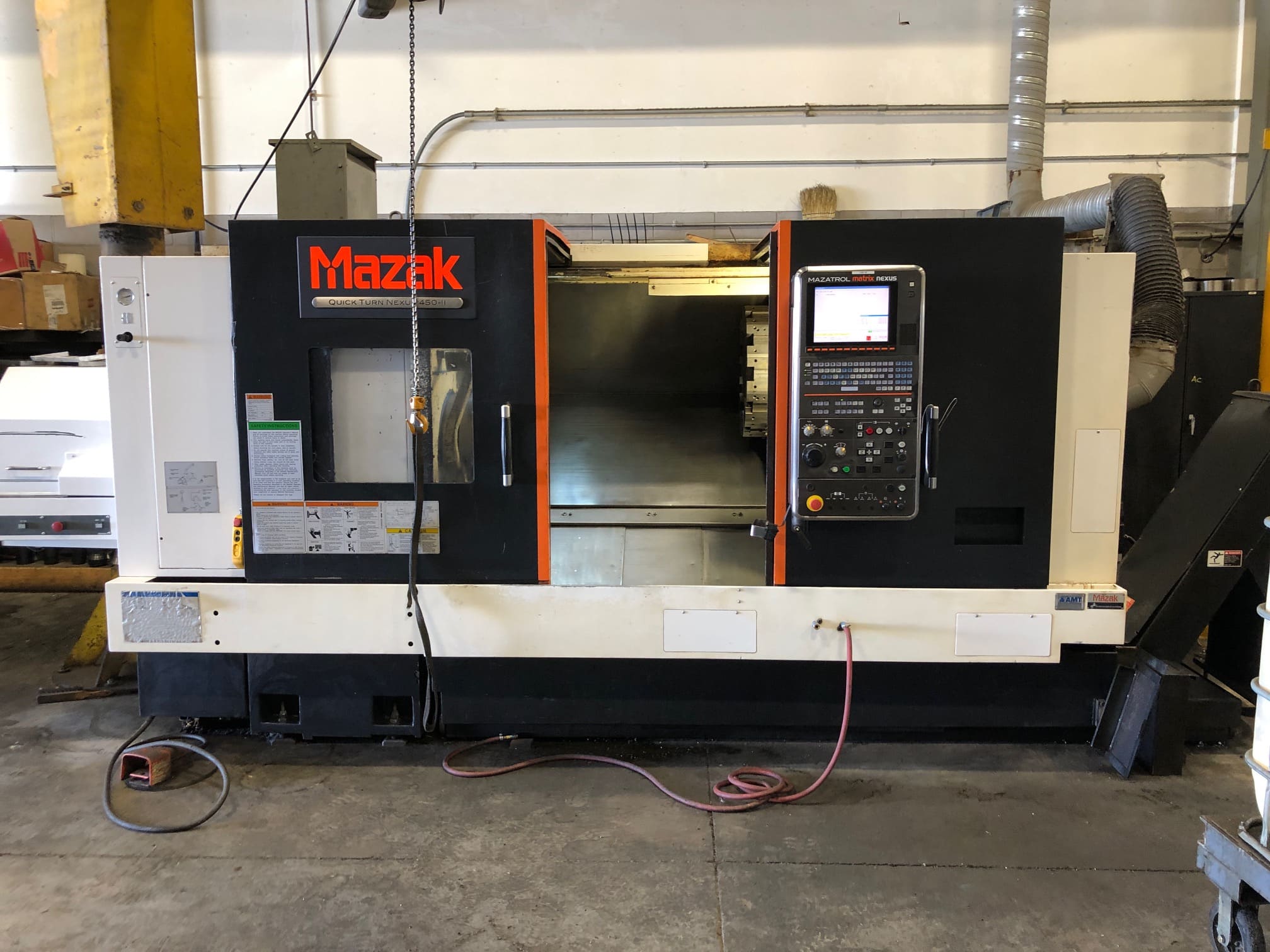

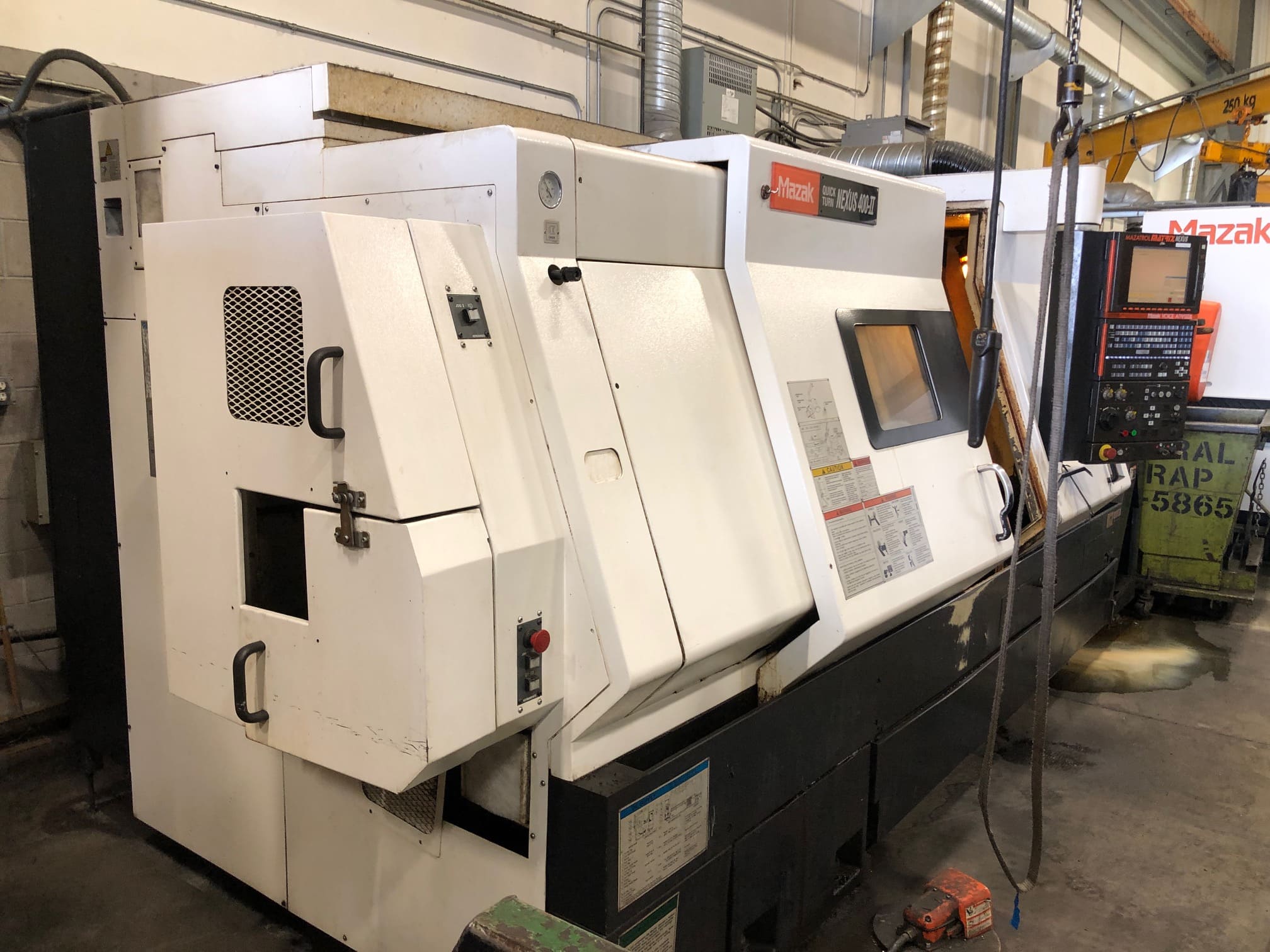

Mazak QTN-400 II-1000 CNC Turning Center

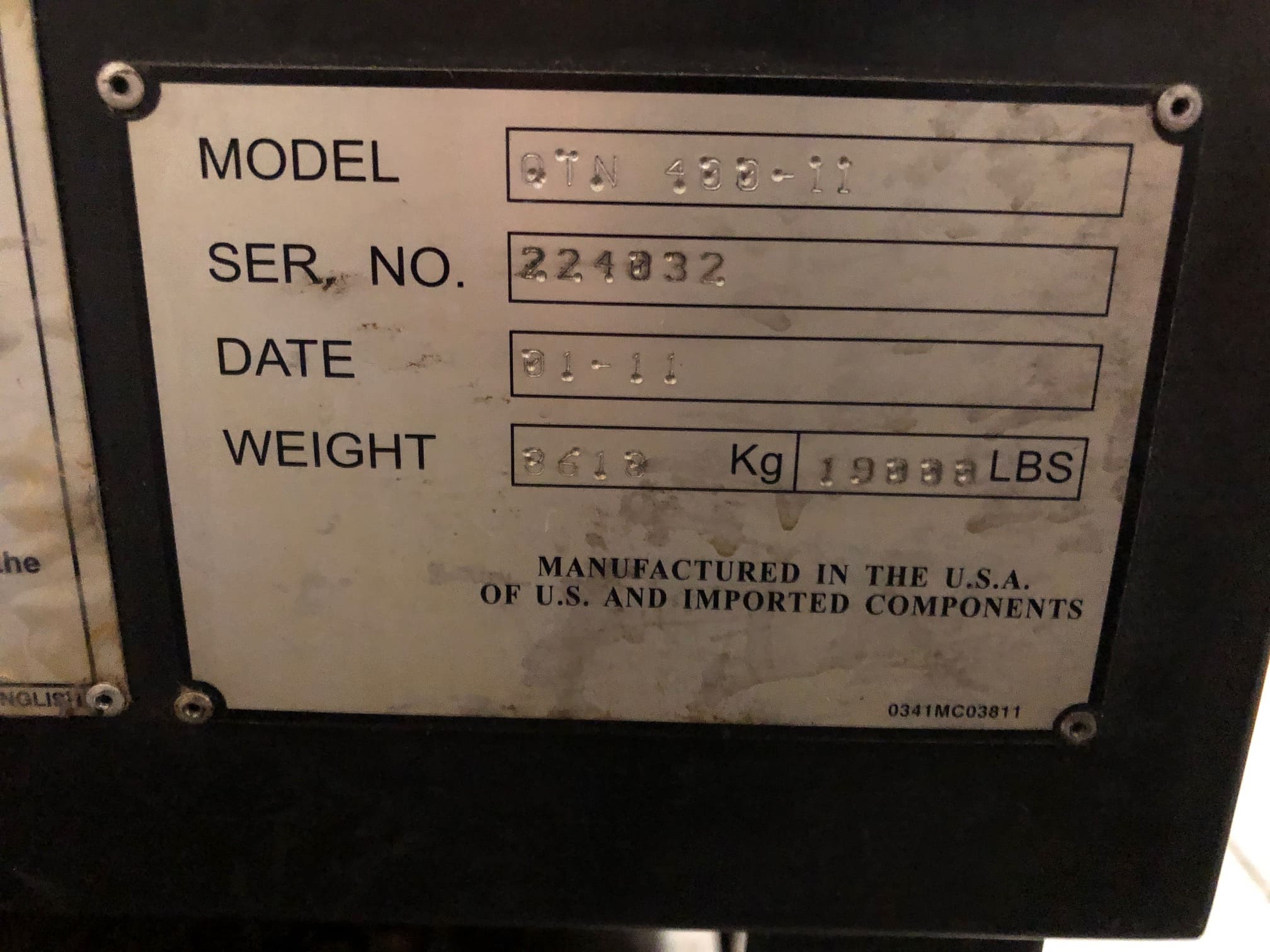

Ref #21; Serial No. 224032

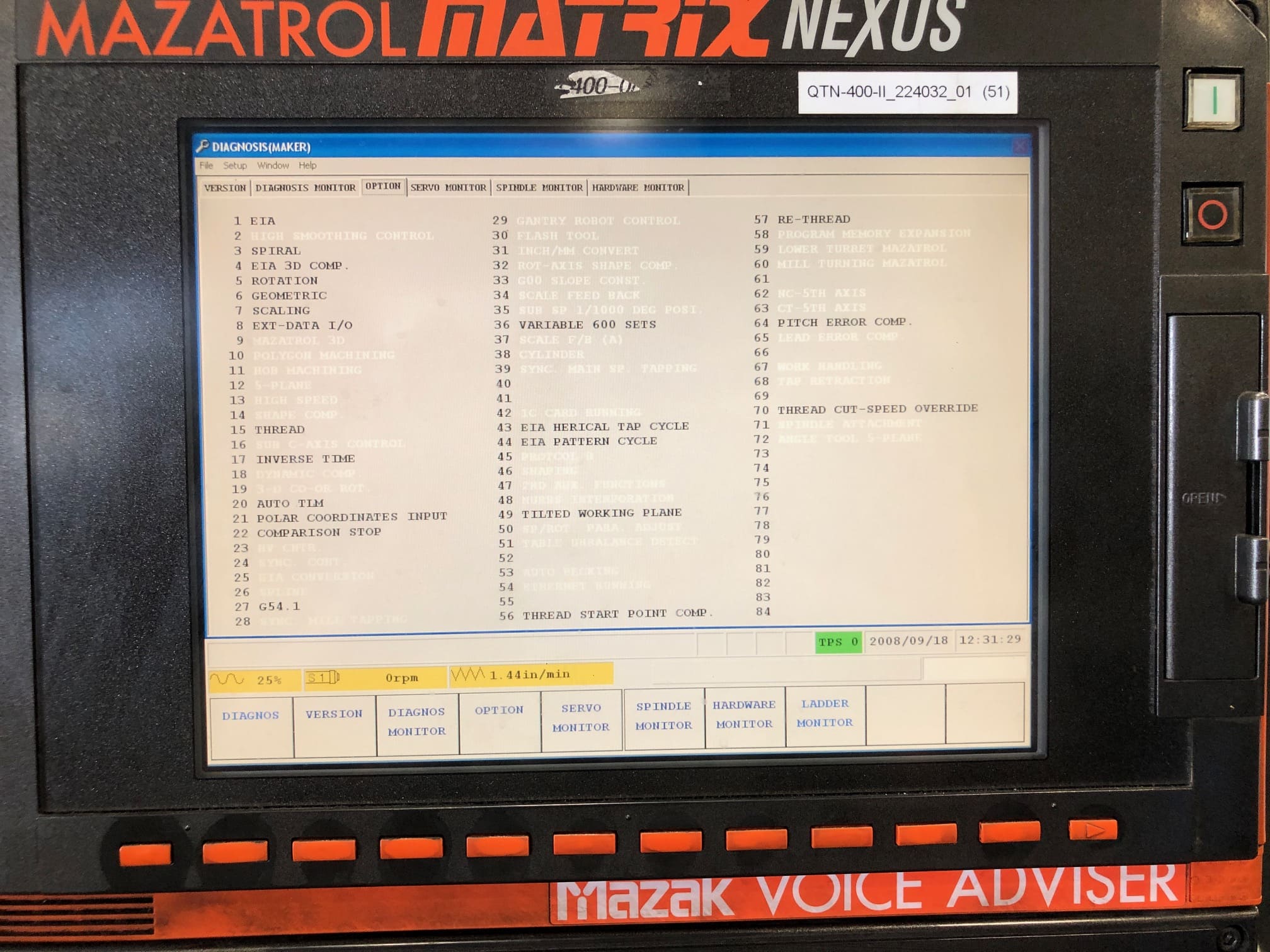

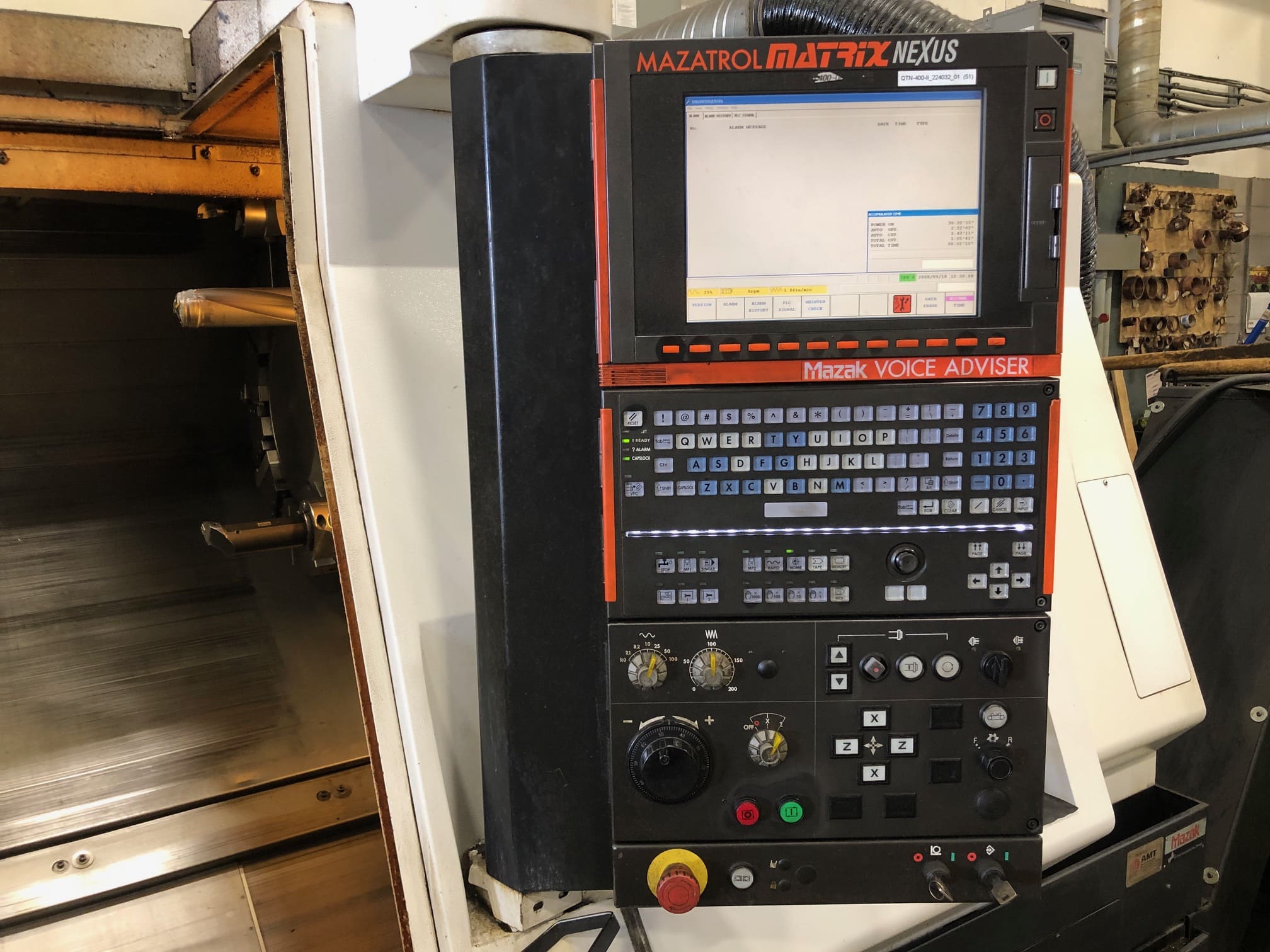

Control: Mazatrol Matrix Nexus
Year: 2011-01
Equipped With:
– Mazatrol Matrix Nexus Control
– Chip Conveyor
– Coolant Tank
– Tool Presetter
– Tailstock

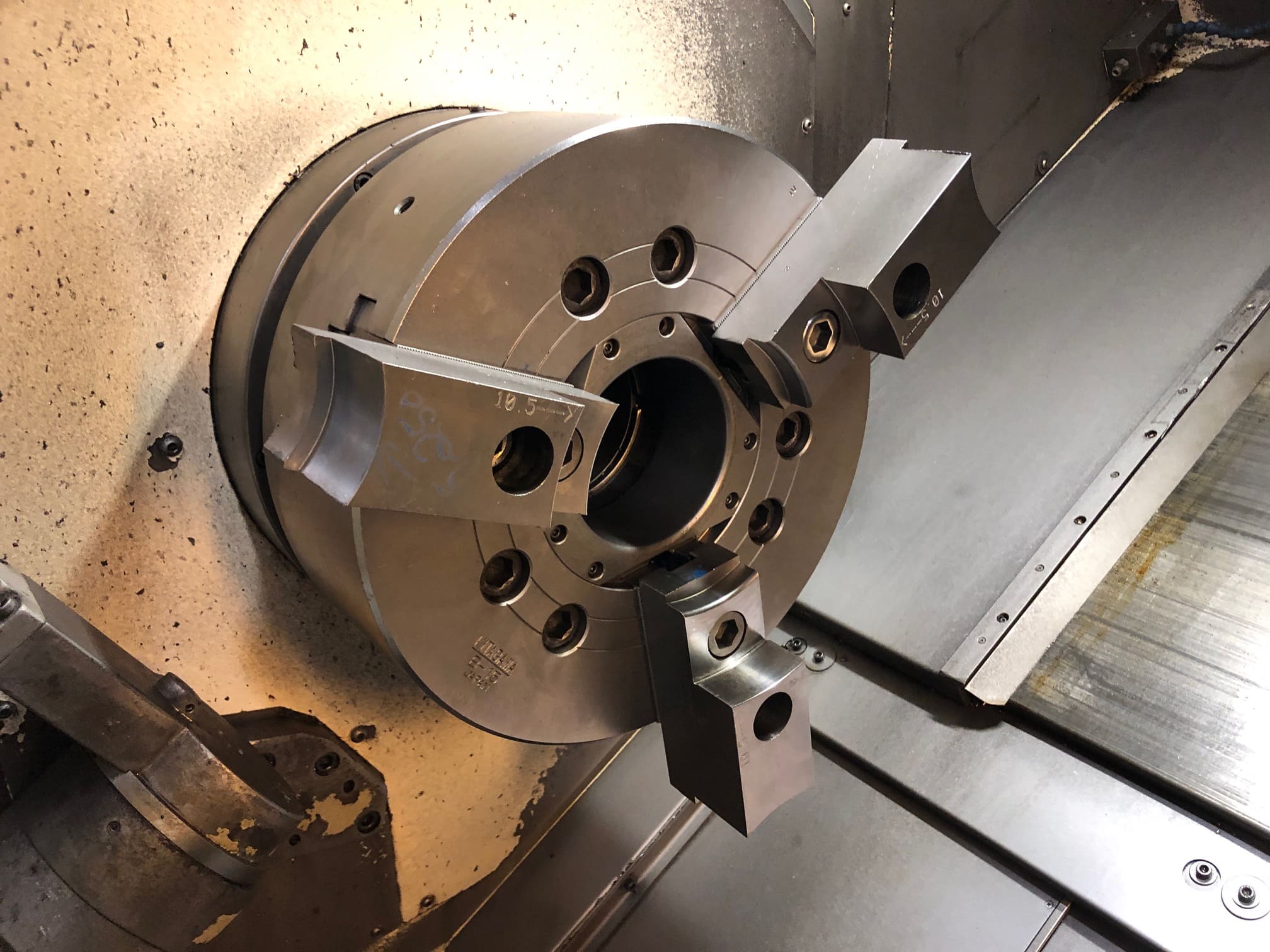

– 15″ Kitagawa Hydraulic Chuck
– Control Options List on request
Specifications
Mazak QTN-400 II-1000 CNC Turning Center
Ref #21; Serial No. 224032
Control: Mazatrol Matrix Nexus
Year: 2011-01
Specifications:
Controlled Axis: 2
Swing: 33.27″
Turning Diameter: 23″
Center Distance: 40″
Chuck Size: 15″
Bar Capacity: 4″
X-Axis Travel: 12.13″
Z-Axis Travel: 42.13″
Spindle Speeds: 2,500 RPM
Spindle Motor: 50 HP
Turret Capacity: 12
Tailstock: Yes

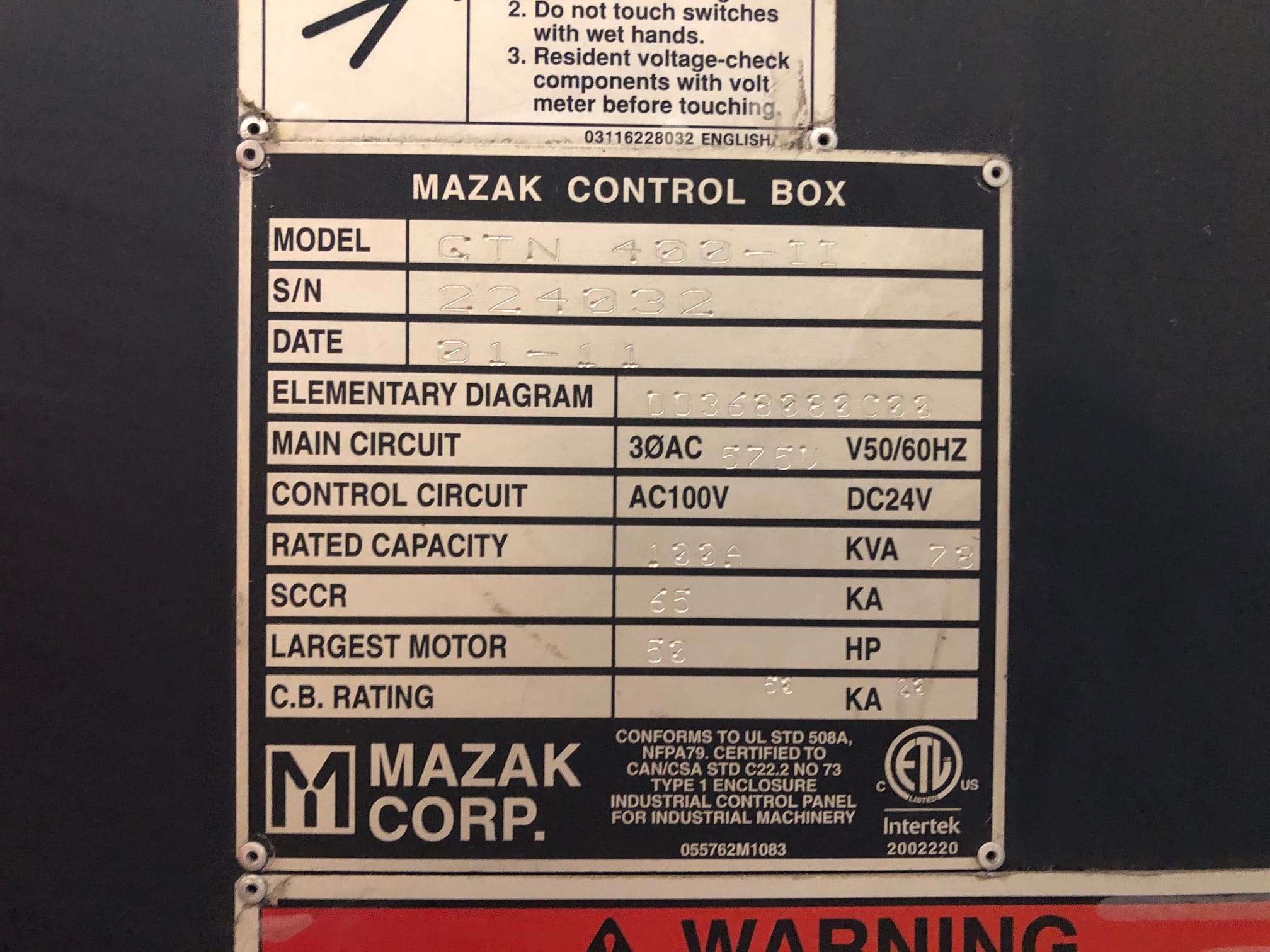

Electrical requirements: 575 Volt; 100A; 78 KVA
Machine Dimensions, L x D x H: 210″ x 84″ x 82″
Machine Weight: 19,000 lbs
