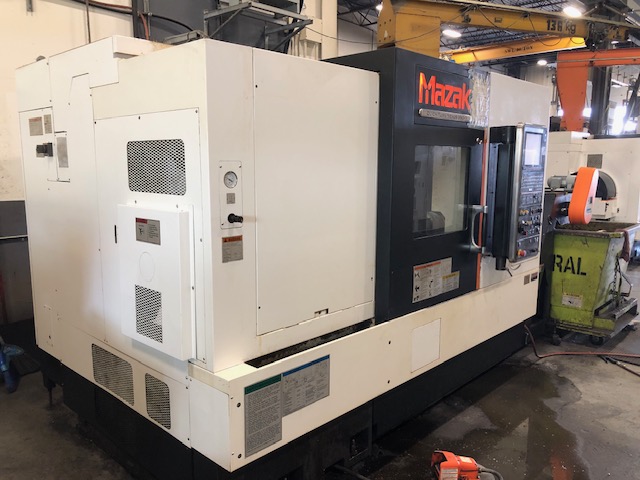

Mazak QTN-350 II CNC Turning Center

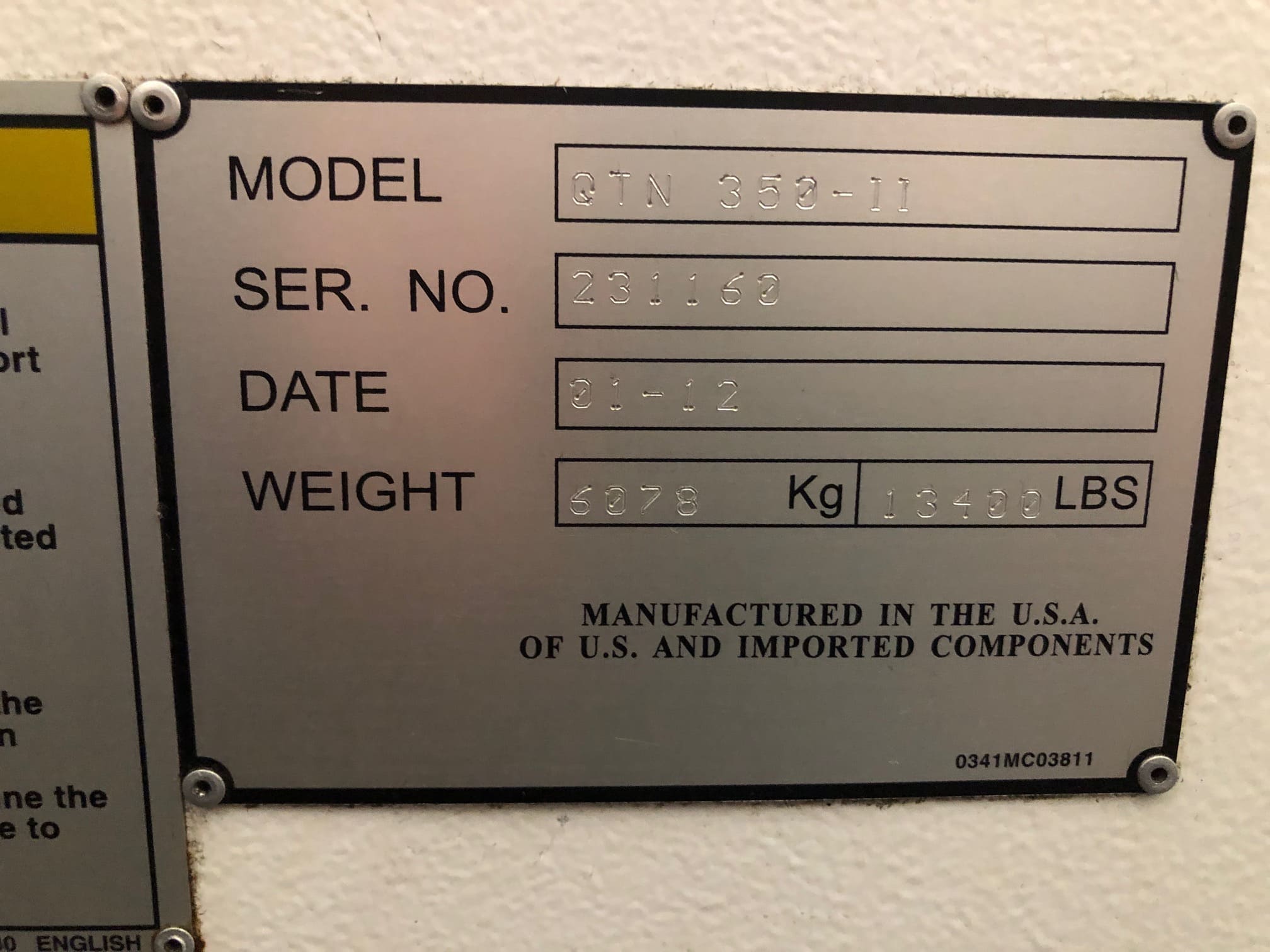

Ref #15; Serial No. 231160
Control: Mazatrol Matrix Nexus
Year: 2012-01

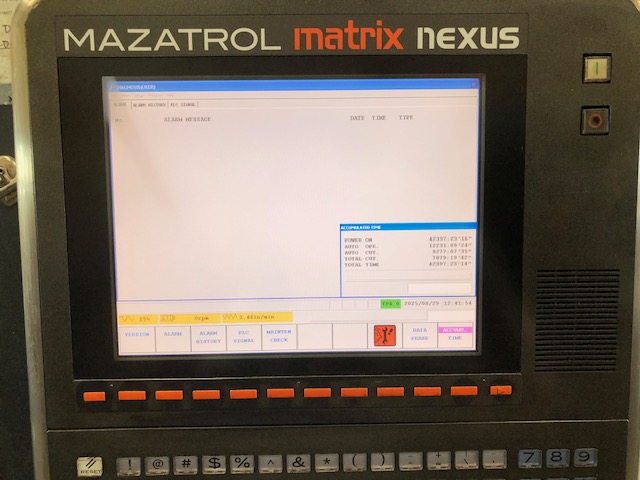

Hours: 7879 total cut; 42397 power on
Equipped With:
– Mazatrol Matrix Nexus Control

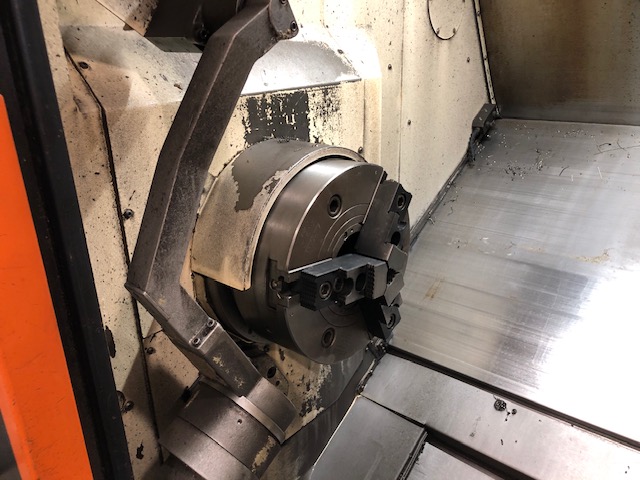

– 12″ Kitagawa Hydraulic Chuck
– Tailstock
– Tool Presetter
– Chip Conveyor
– Coolant Tank
– Control Options List on request
Specifications
Mazak QTN-350 II CNC Turning Center
Ref #15; Serial No. 231160
Control: Mazatrol Matrix Nexus
Year: 2012-01
Hours: 7879 total cut; 42397 power on
Specifications:
Controlled Axis: 2
Swing: 26.77″
Turning Diameter: 16.54″
Center Distance: 24″
Chuck Size: 12″
Bar Capacity: 4″
X-Axis Travel: 10.13″
Z-Axis Travel: 25.50″
Spindle Speeds: 3,300 RPM
Spindle Motor: 40 HP

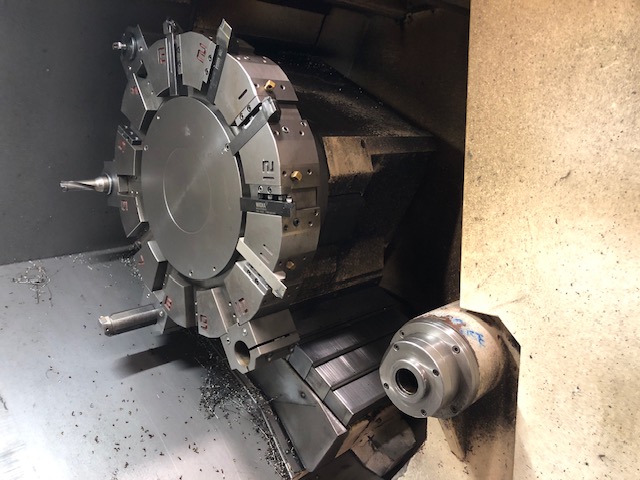

Turret Capacity: 12
Tailstock: Yes

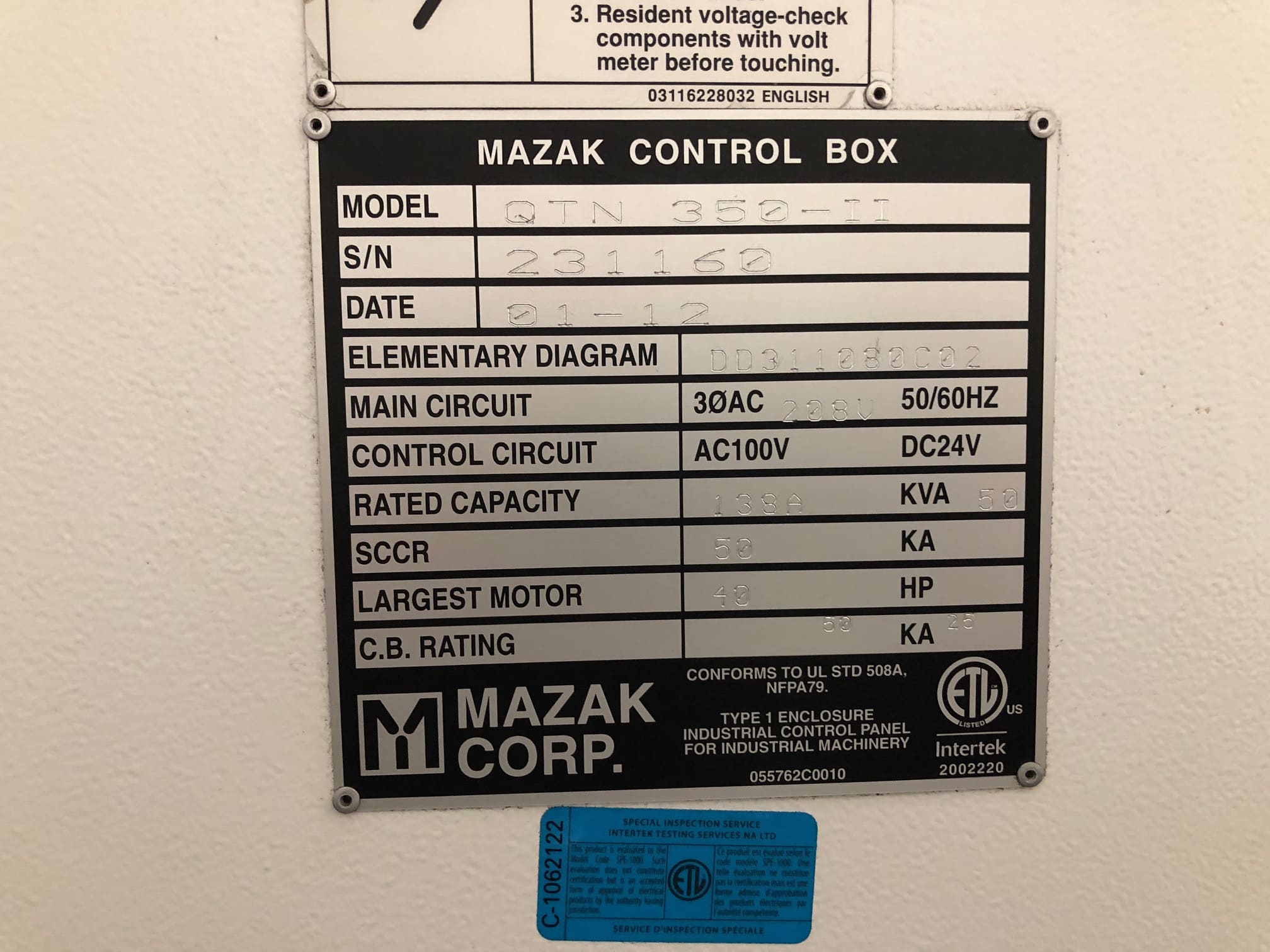

Electrical requirements: 208 Volt; 138A; 50 KVA
Machine Dimensions, L x D x H: 136″ x 84″ x 84″
Machine Weight: 13,400 lbs
