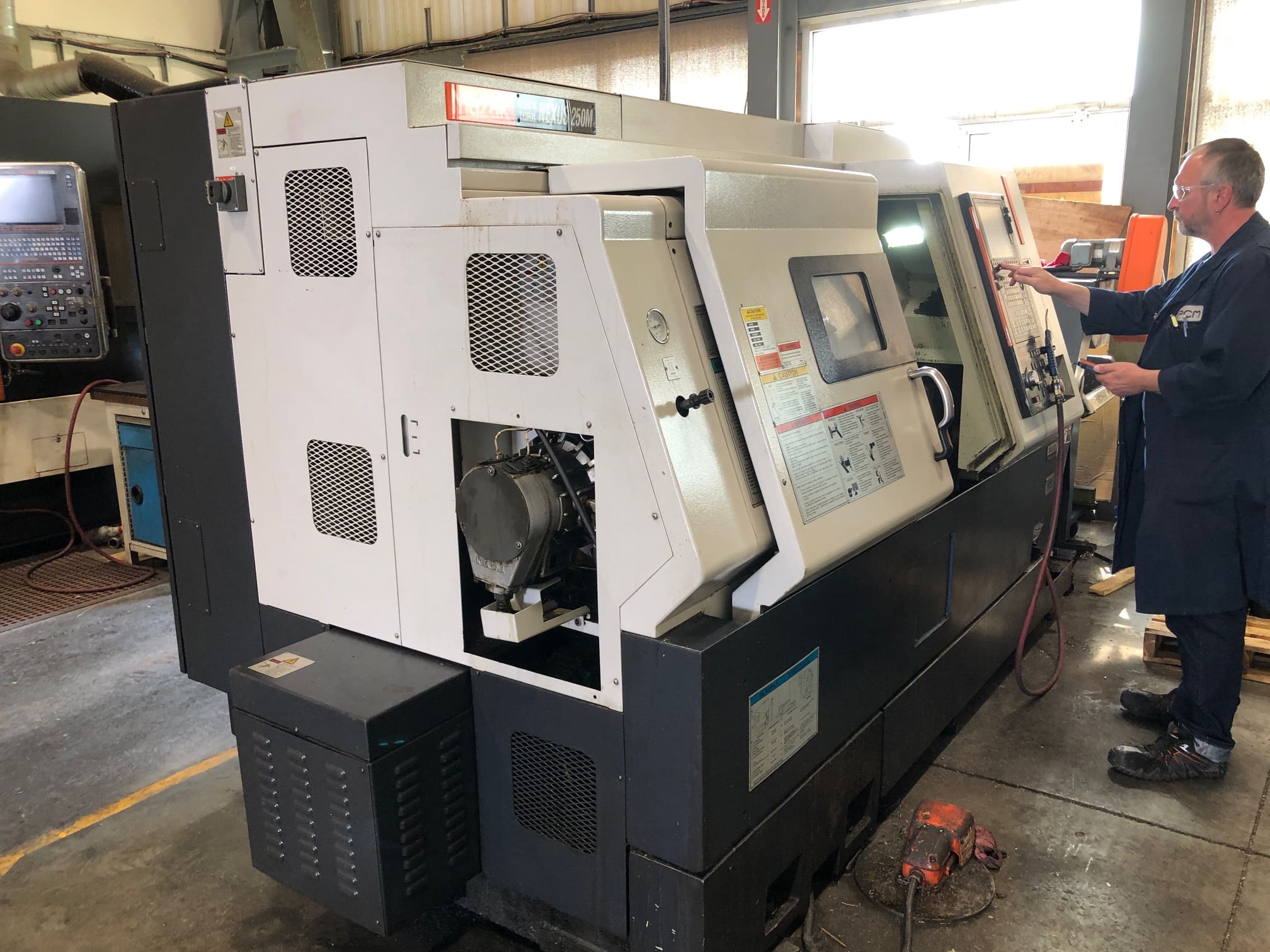

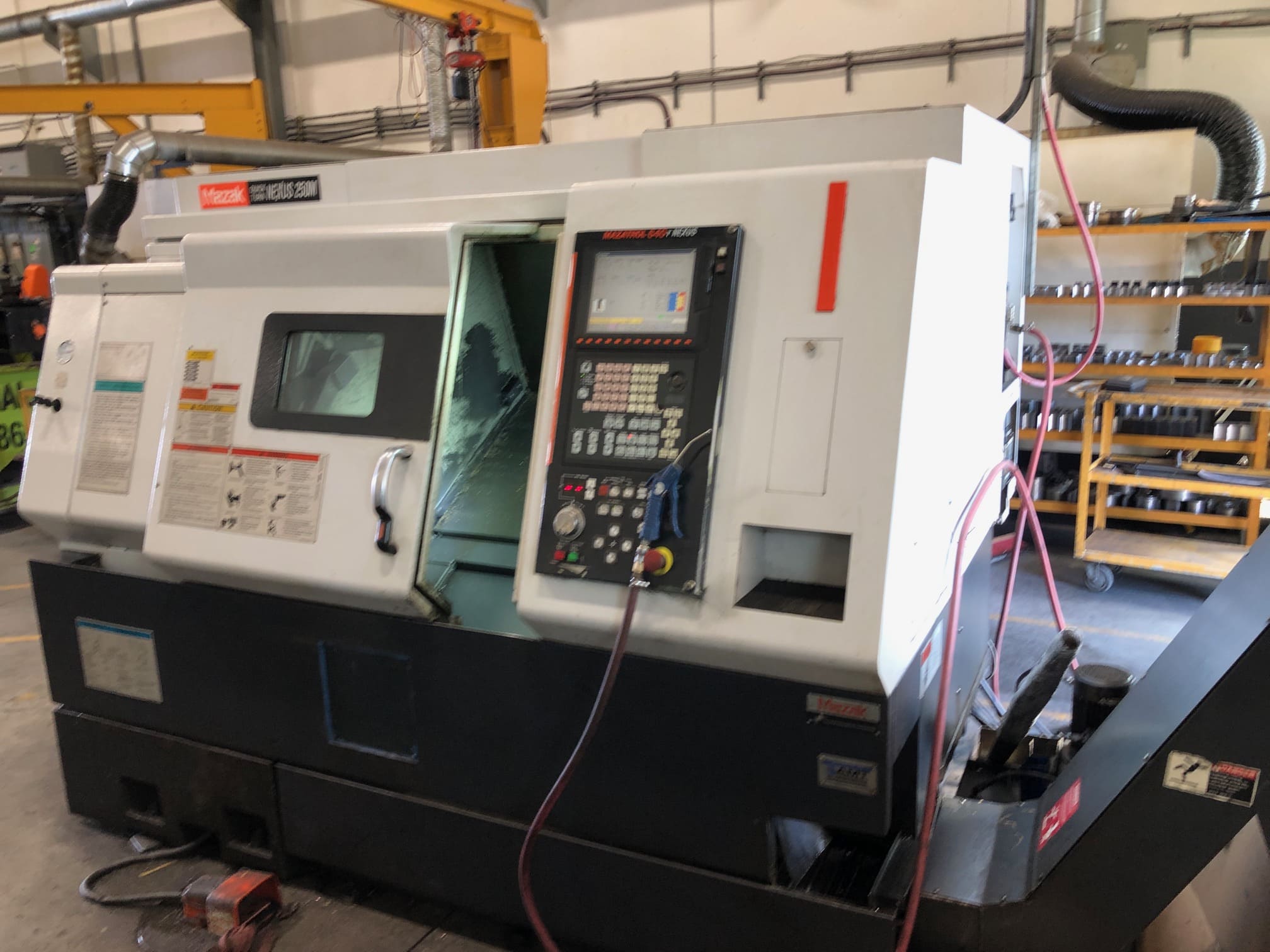

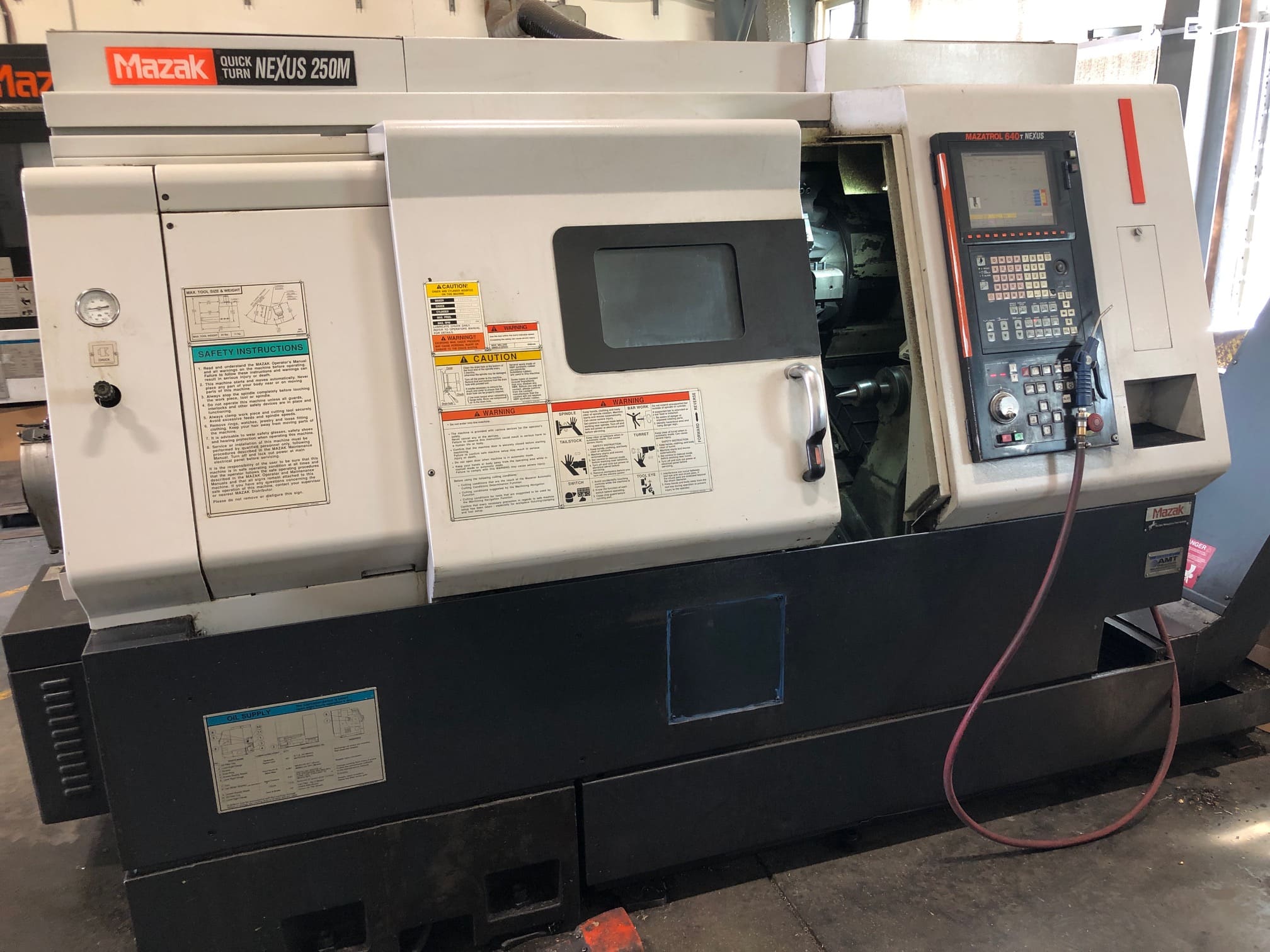

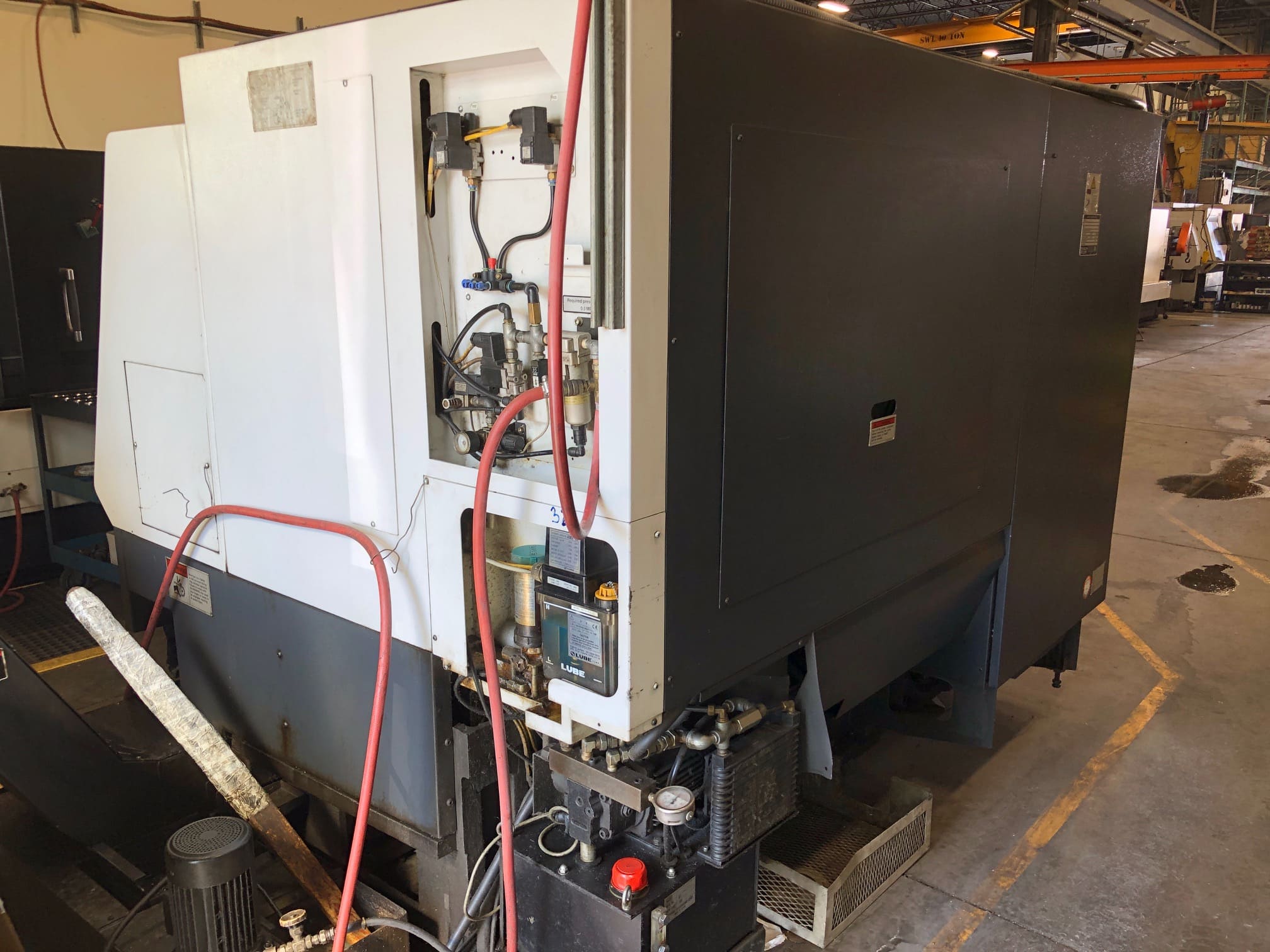

Mazak QTN-250M-500 CNC Turning Center

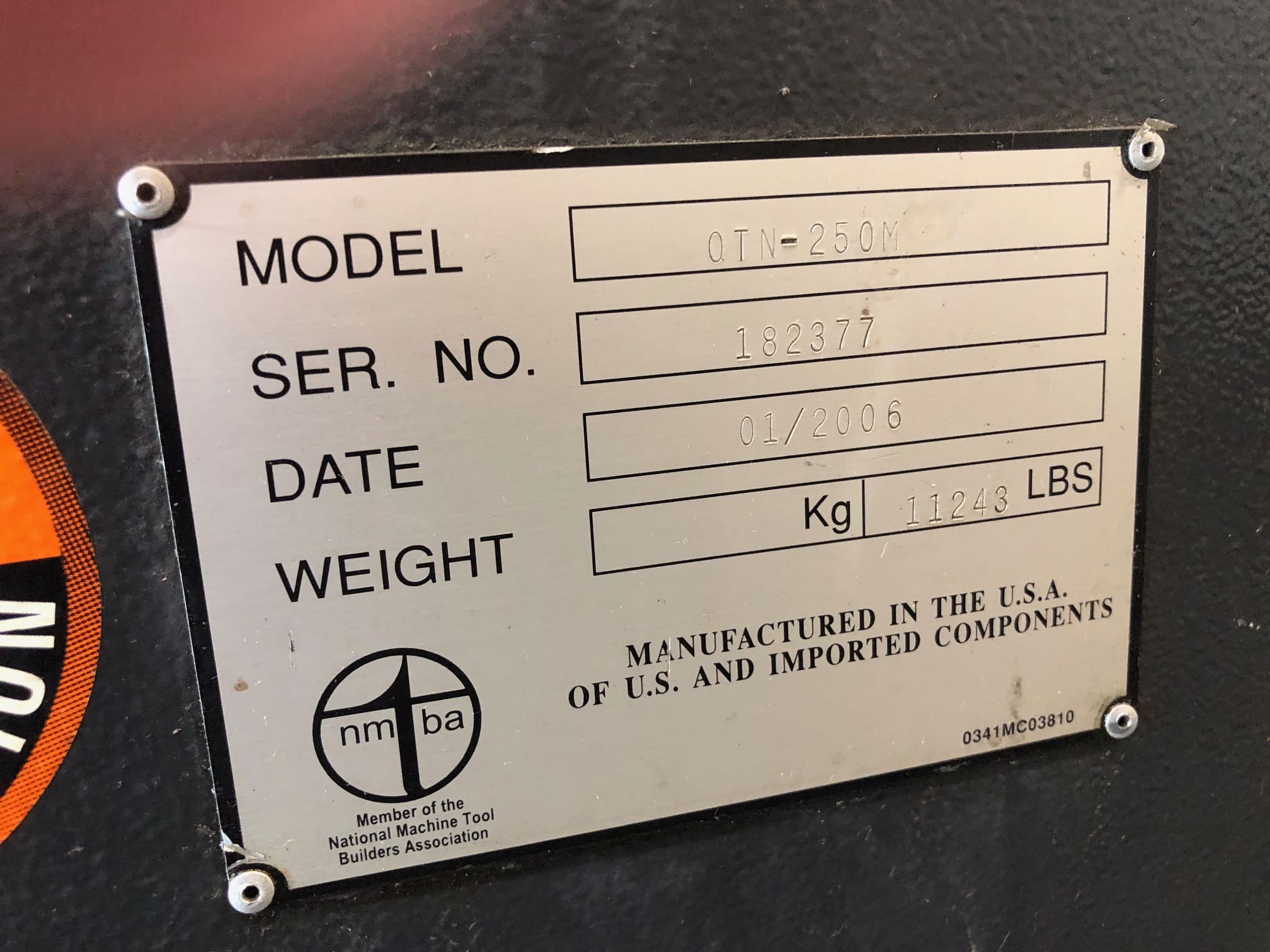

Ref #17; Serial No. 182377
Control: Mazatrol 640T Nexus
Year: 2006-01
Equipped With:
– Mazatrol 640T Nexus

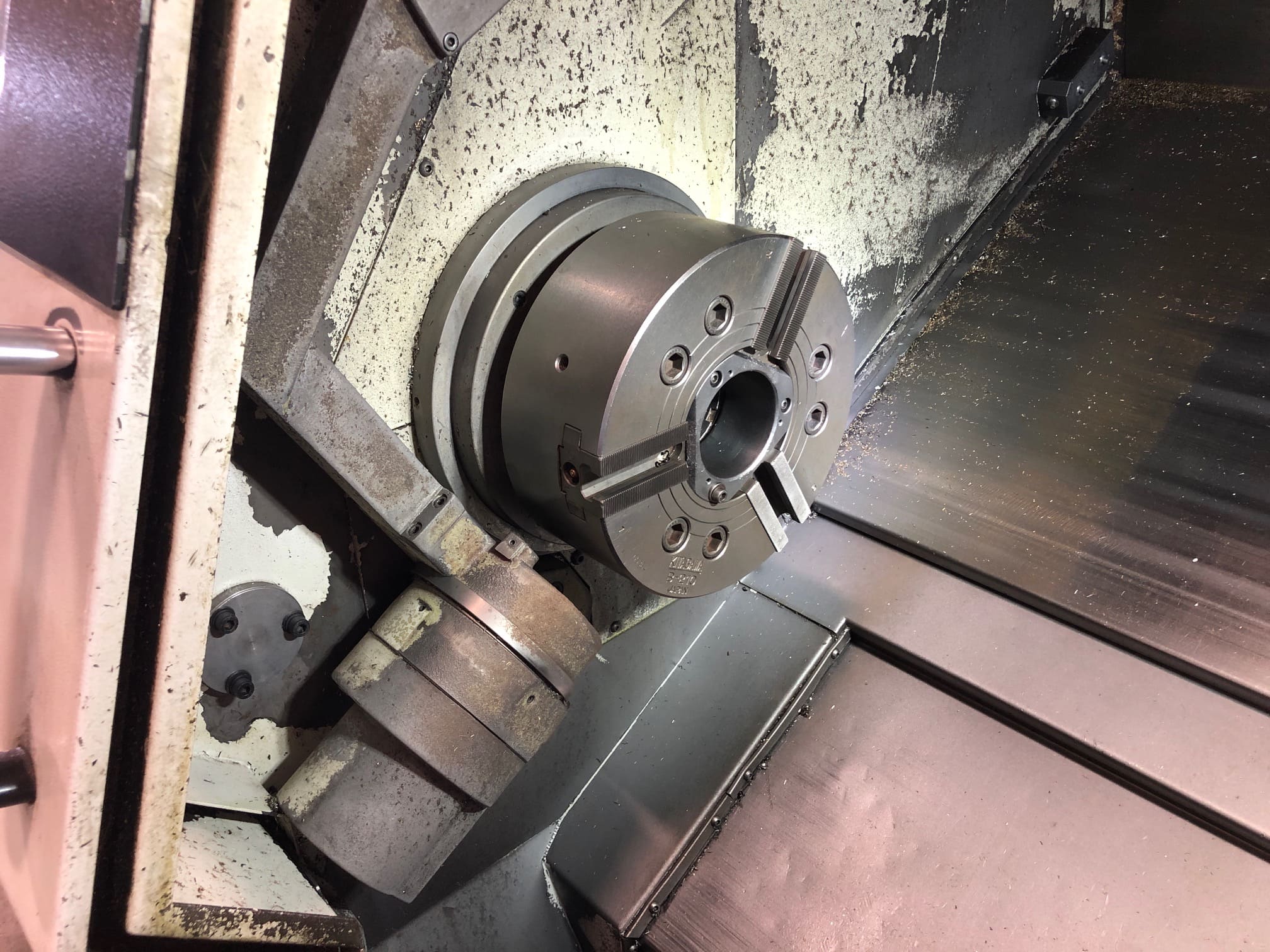

– 10″ Kitagawa Hydraulic Chuck
– Tailstock
– Tool Presetter
– 2 Axial live tool holders
– 1 Radial live tool holder
– Chip Conveyor
– Coolant Tank

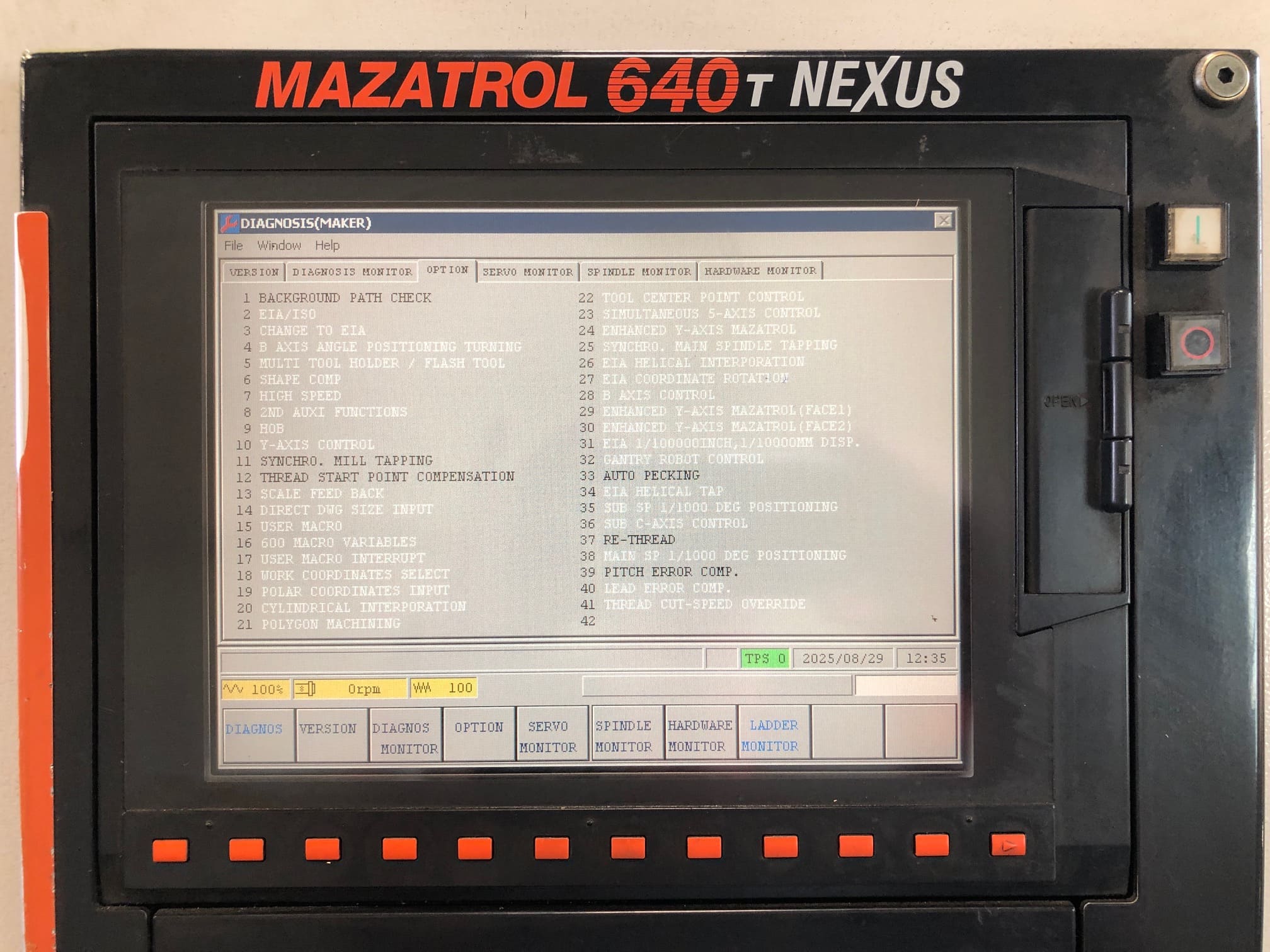

– Control Options List on request
Specifications
Mazak QTN-250M-500 CNC Turning Center
Ref #17; Serial No. 182377
Control: Mazatrol 640T Nexus
Year: 2006-01
Specifications:
Controlled Axis: 3
Swing: 26.5″
Turning Diameter: 14.75″
Center Distance: 20″ (19.858”)
Chuck Size: 10″
Bar Capacity: 3″
X-Axis Travel: 9″
Z-Axis Travel: 22.75″
Spindle Speeds: 4000 RPM
Spindle Motor: 35 HP

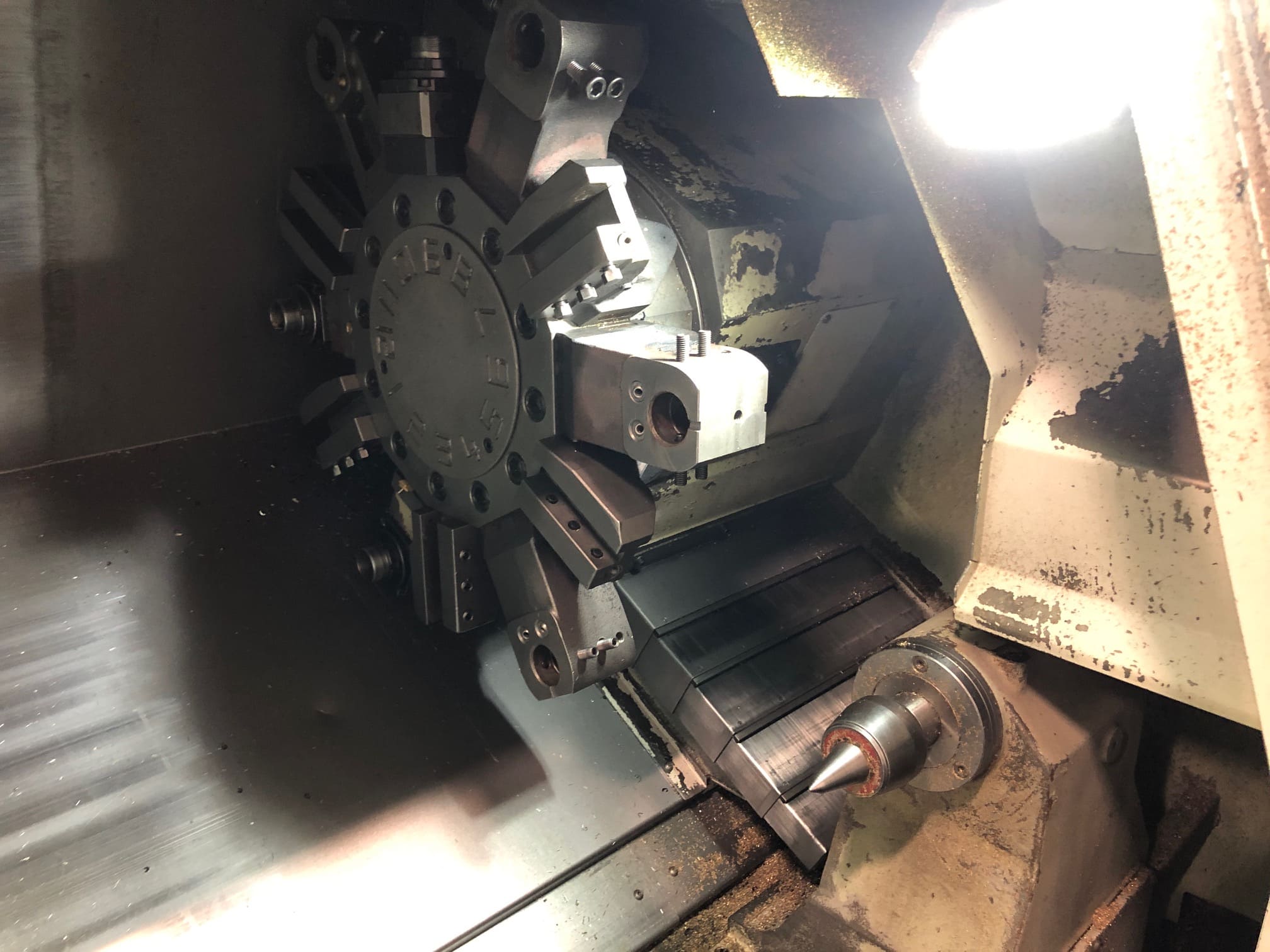

Turret Capacity: 12
Upper Turret Live Tools: 12
Upper Turret Driven Tool Speeds: 4500 RPM
Upper Turret Driven Tool Motor: 7.5 HP
Tailstock: Yes

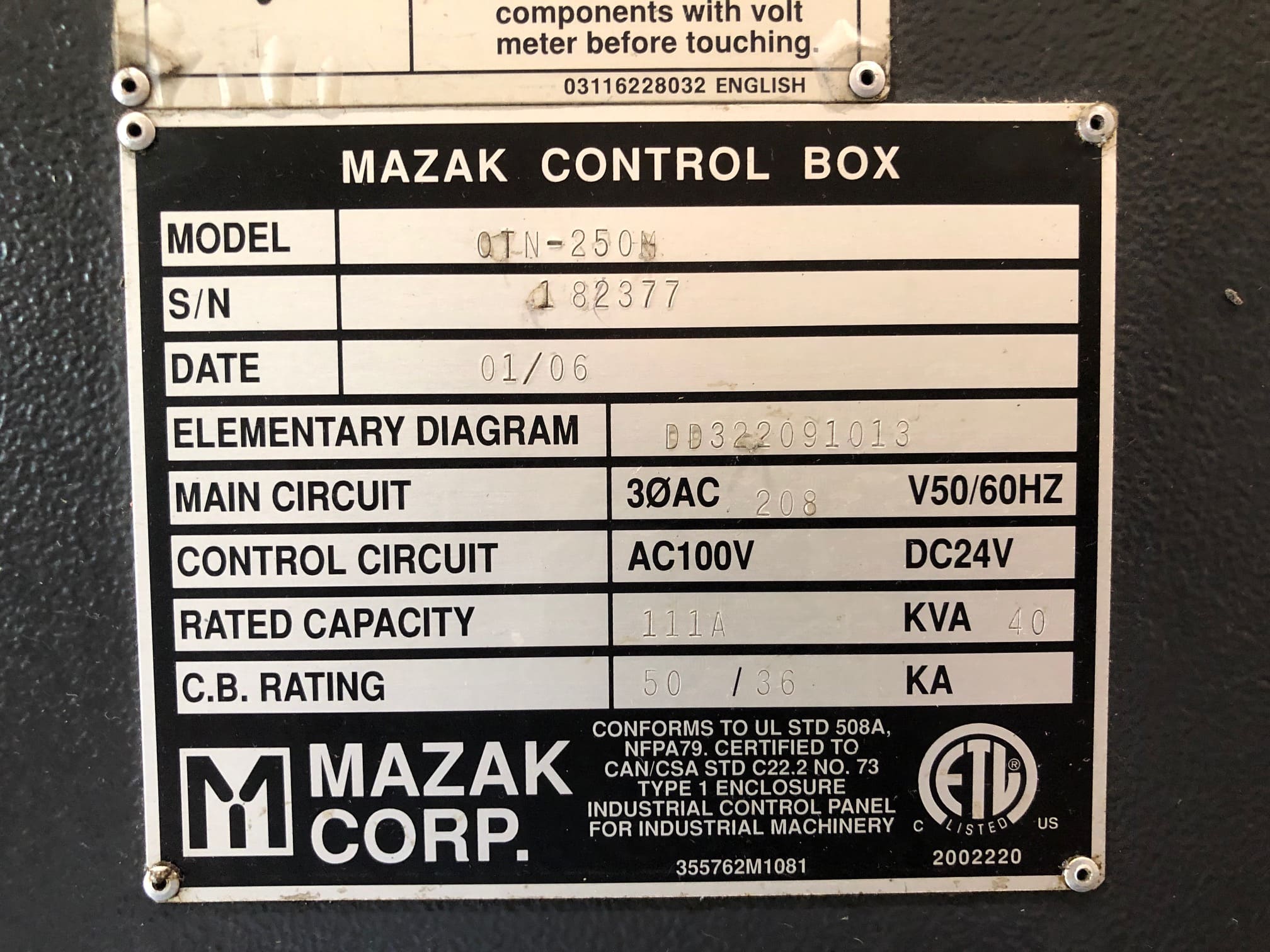

Electrical requirements: 208 Volt; 111A; 40 KVA
Machine Dimensions, L x D x H: 142″ x 71″ x 75″H
Machine Weight: 11,243 lbs
