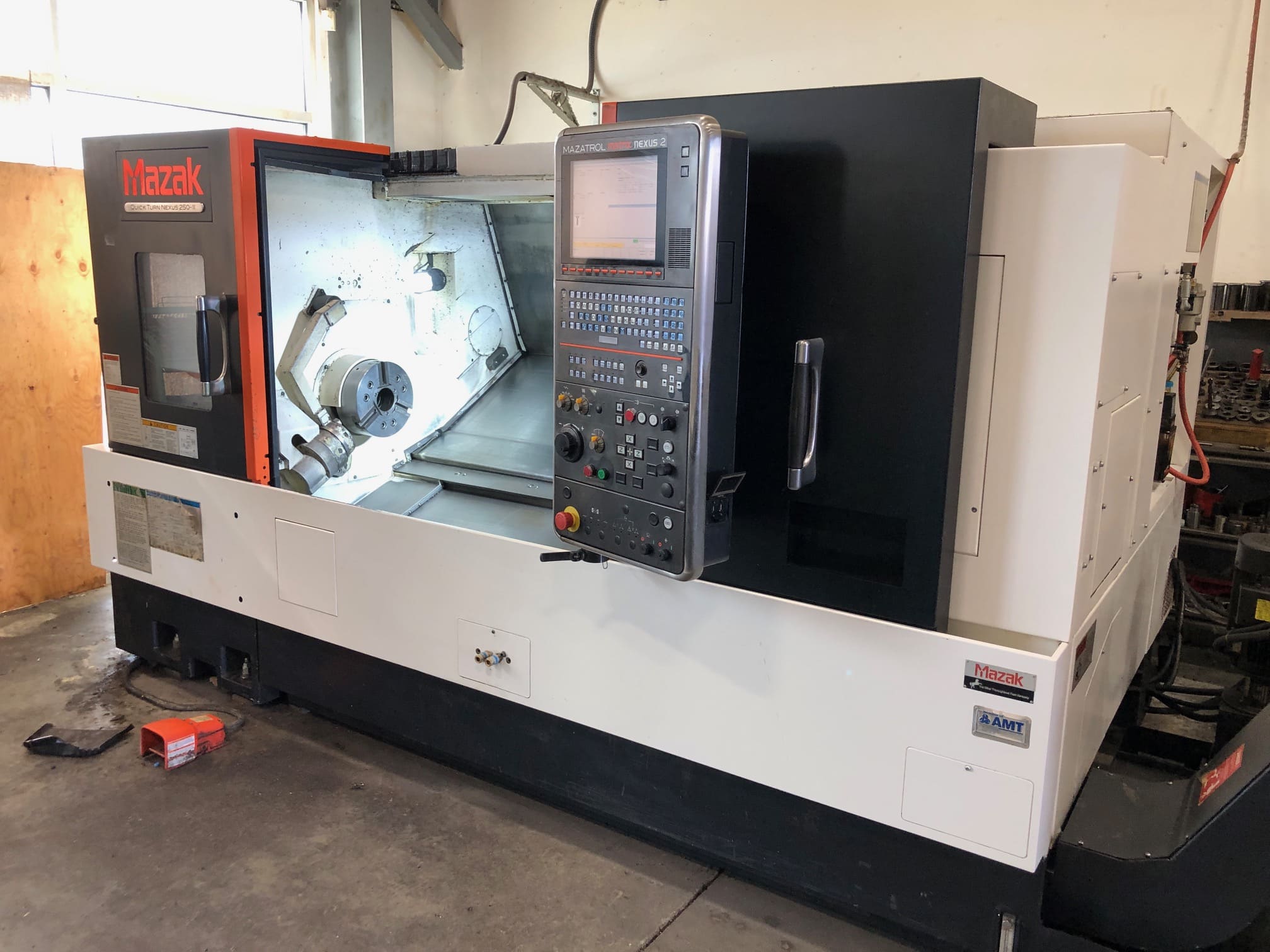

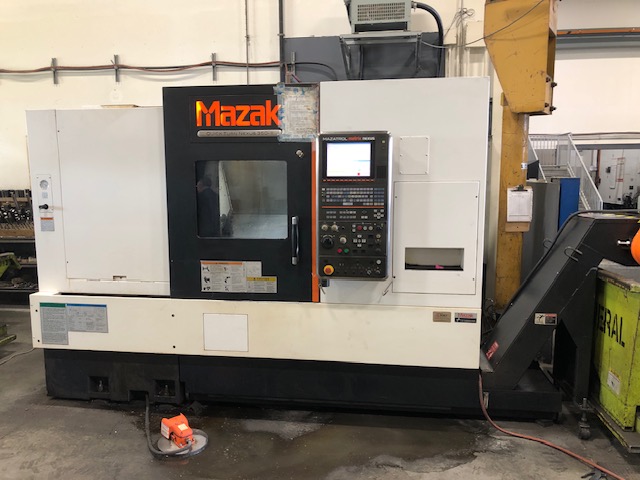

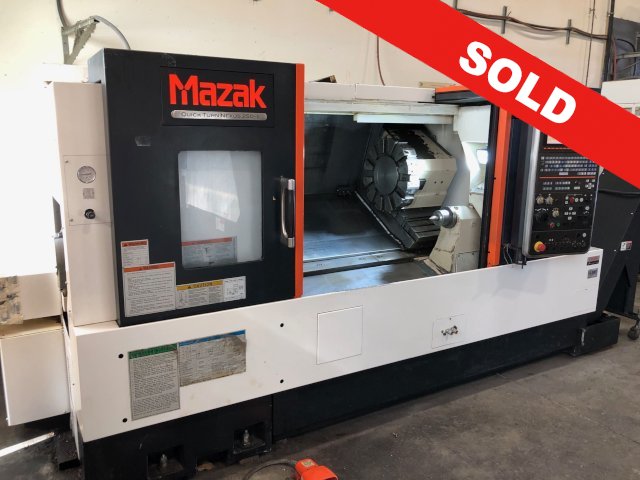

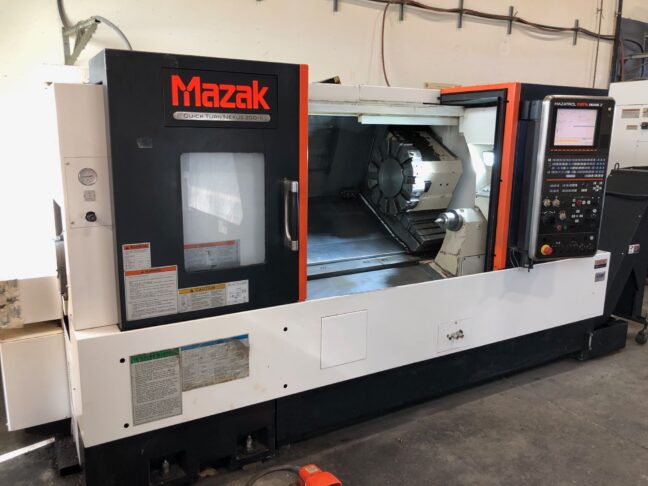

Mazak QTN-250 II-1000 CNC Turning Center
Ref #16; Serial No. 254458

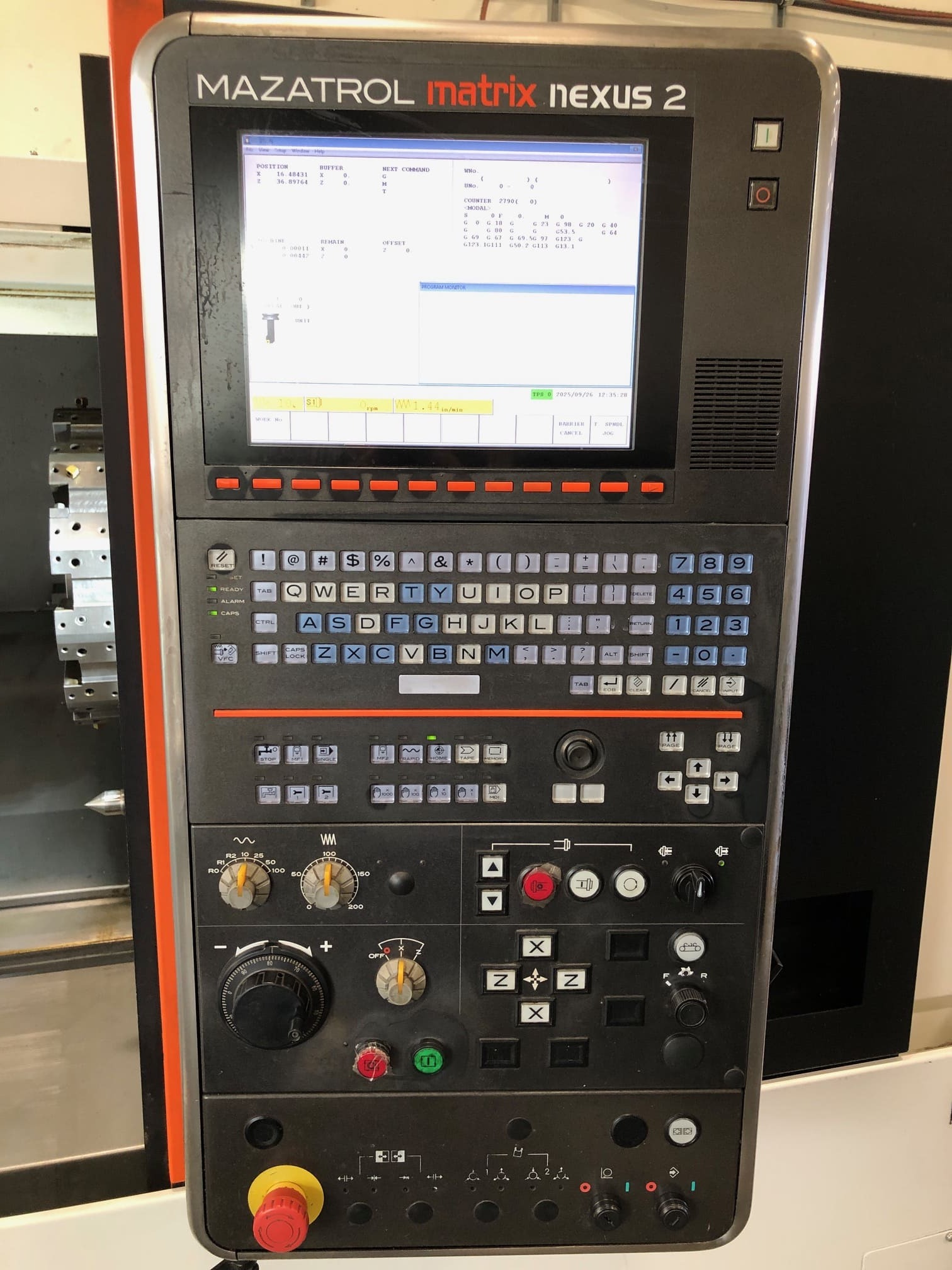

Control: Mazatrol Matrix Nexus 2
Year: 2014-06

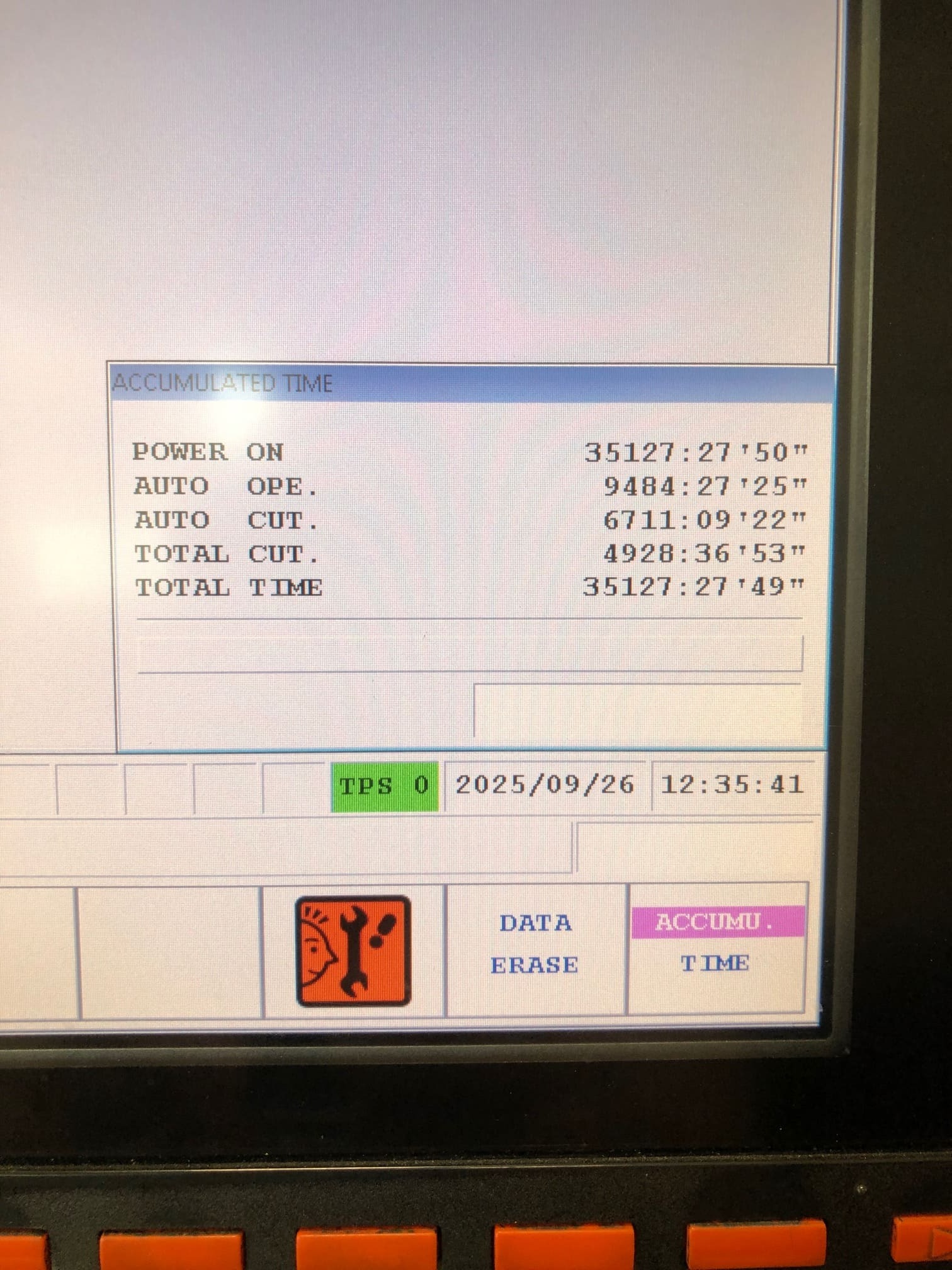

Hours: 4928 total cut; 35,127 power on

Equipped With:
– Mazatrol Matrix Nexus 2

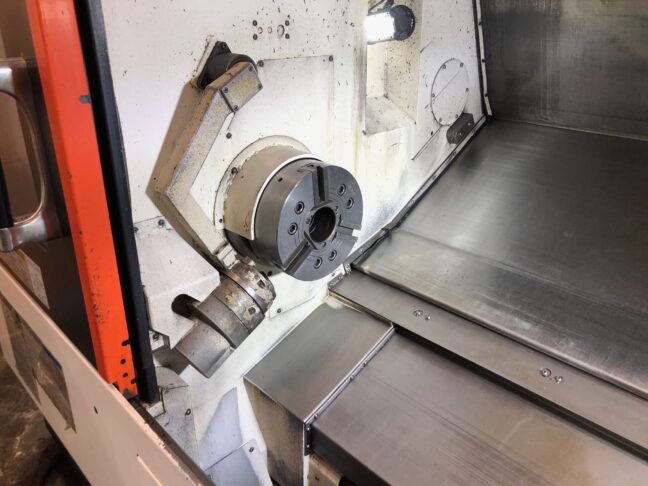

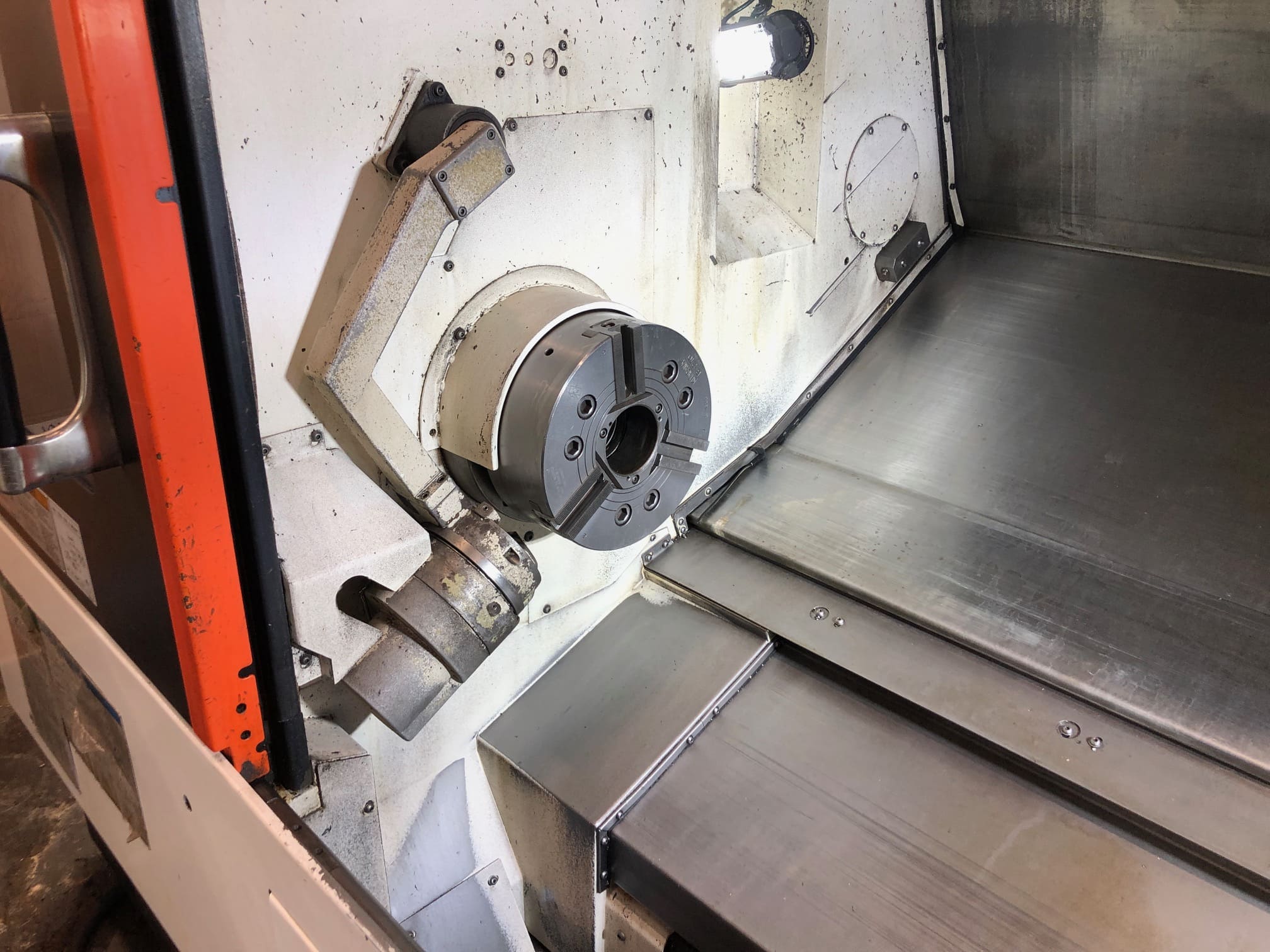

– 10″ Kitagawa Hydraulic Chuck
– Tailstock
– Tool Presetter

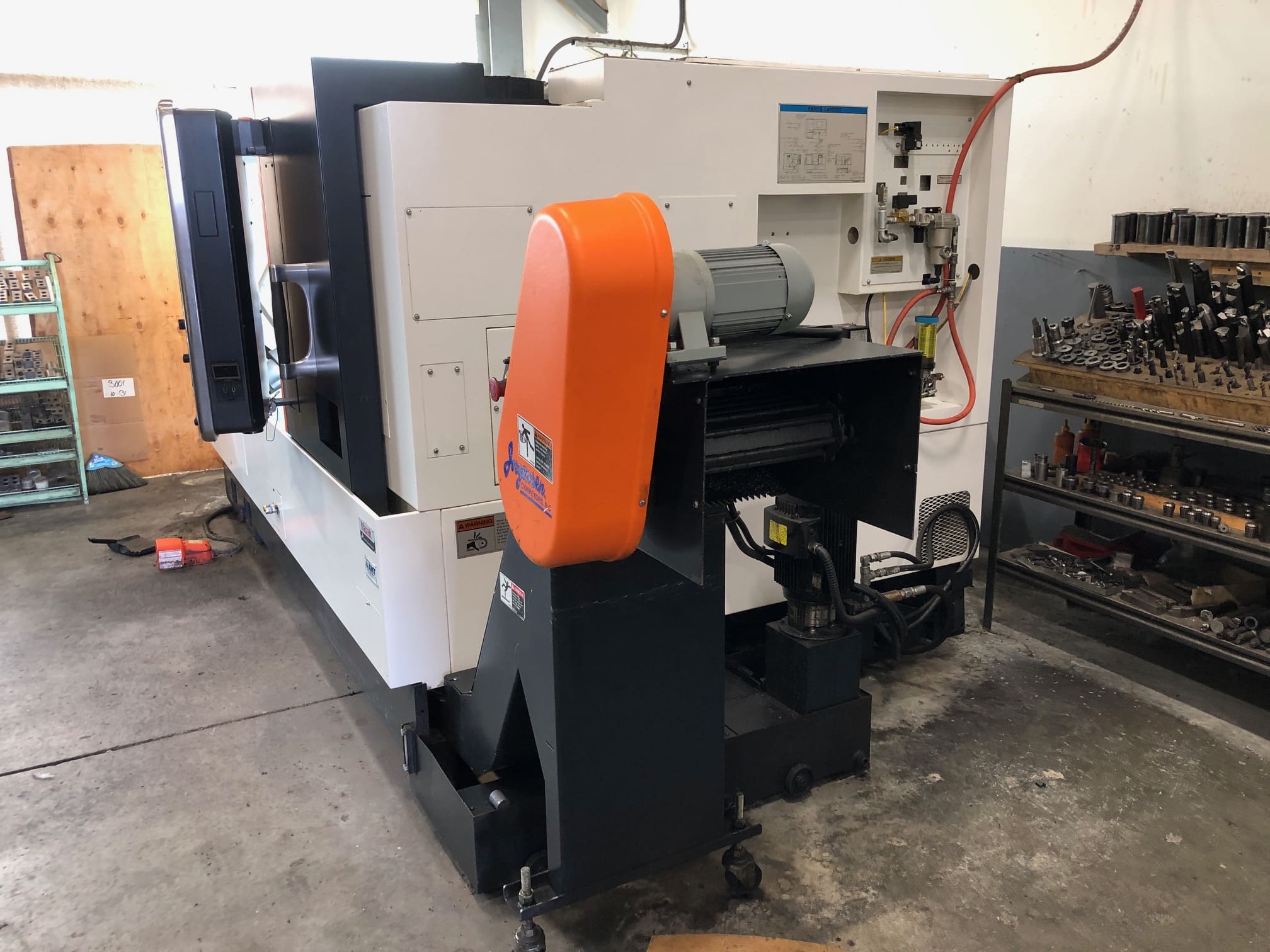

– Chip Conveyor
– Coolant Tank

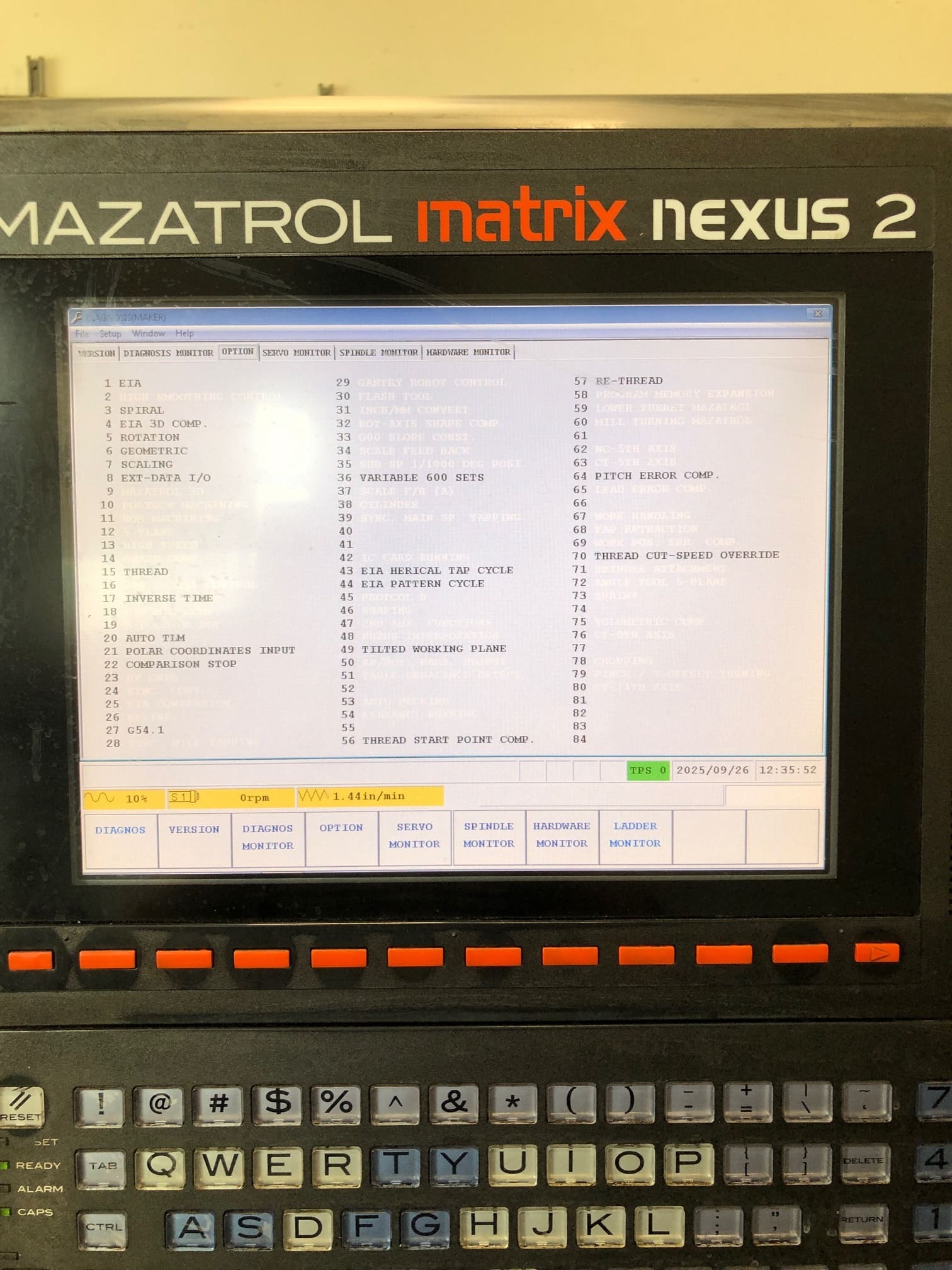

– Control Options List on request

Category:

Specifications

Mazak QTN-250 II-1000 CNC Turning Center
Ref #16; Serial No. 254458
Control: Mazatrol Matrix Nexus 2
Year: 2014-06
Hours: 4928 total cut; 35,127 power on

Specifications:
Controlled Axis: 2
Swing: 24″
Turning Diameter: 13.78″
Center Distance: 40″ (39.108”)
Chuck Size: 10″
Bar Capacity: 3″
X-Axis Travel: 8.75″
Z-Axis Travel: 40.75″
Spindle Speeds: 4000 RPM
Spindle Motor: 35 HP

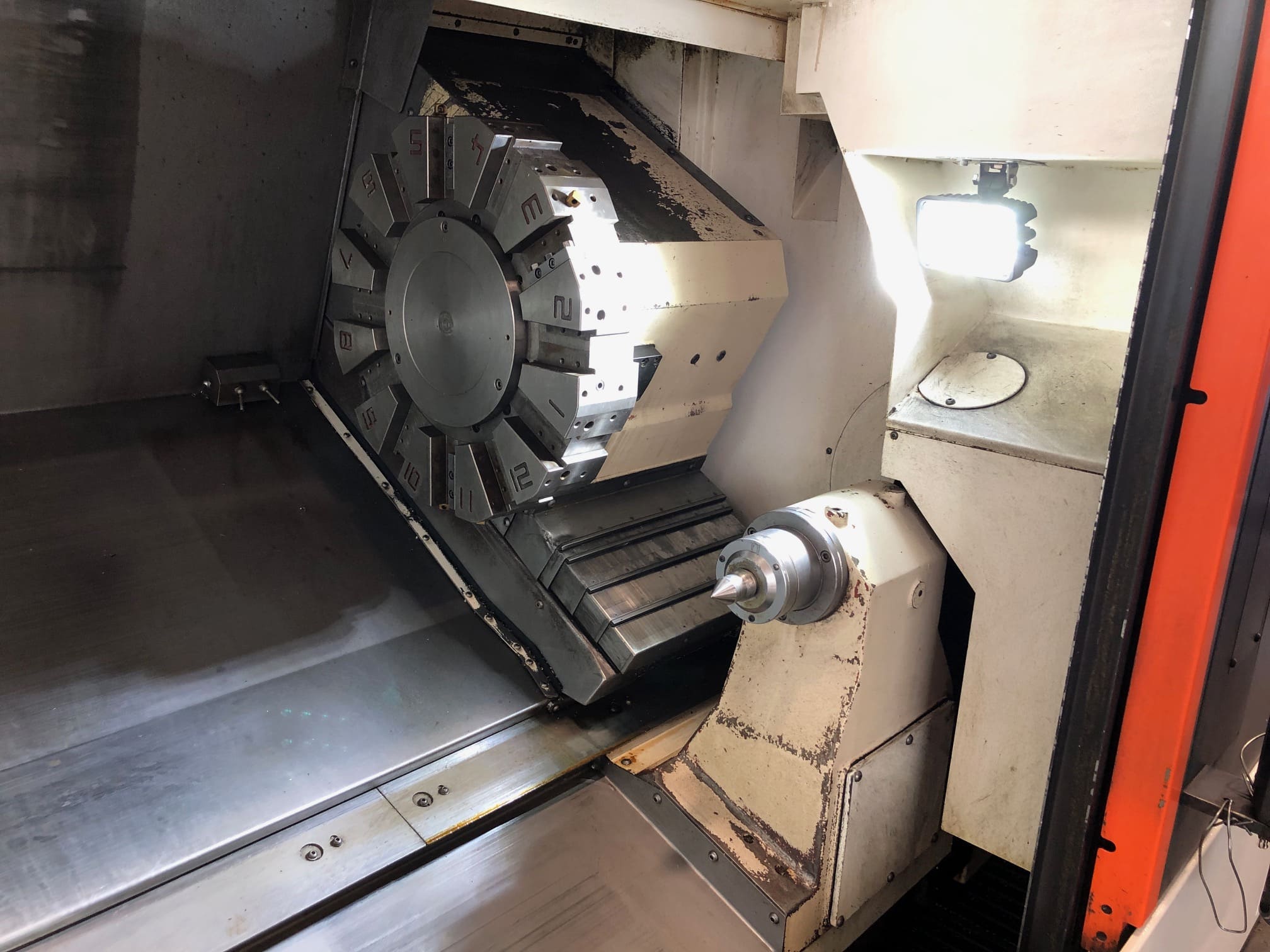

Turret Capacity: 12
Tailstock: Yes

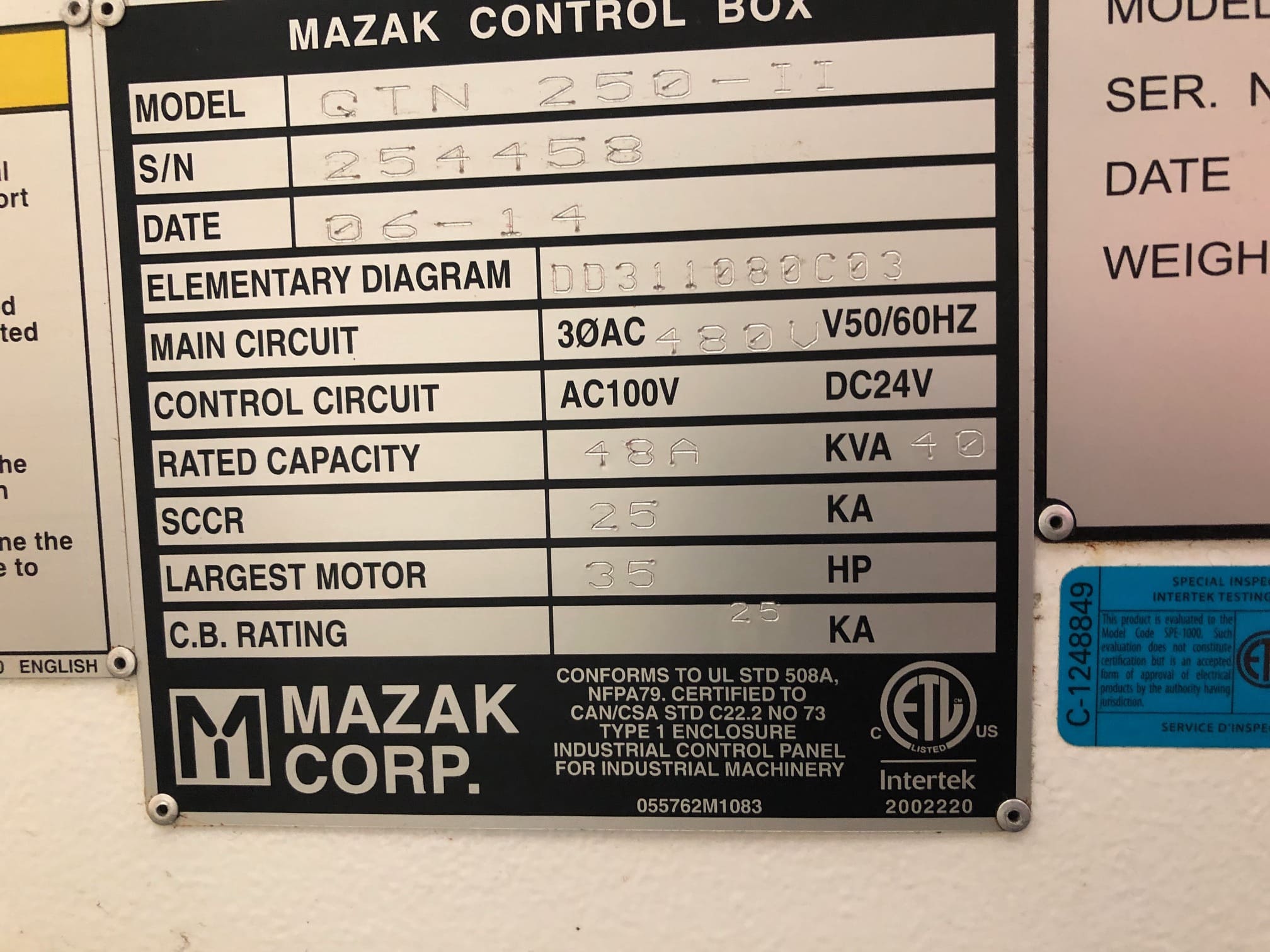

Electrical requirements: 480 Volt; 48A; 40 KVA
Machine Dimensions, L x D x H: 142″ x 71″ x 75″H

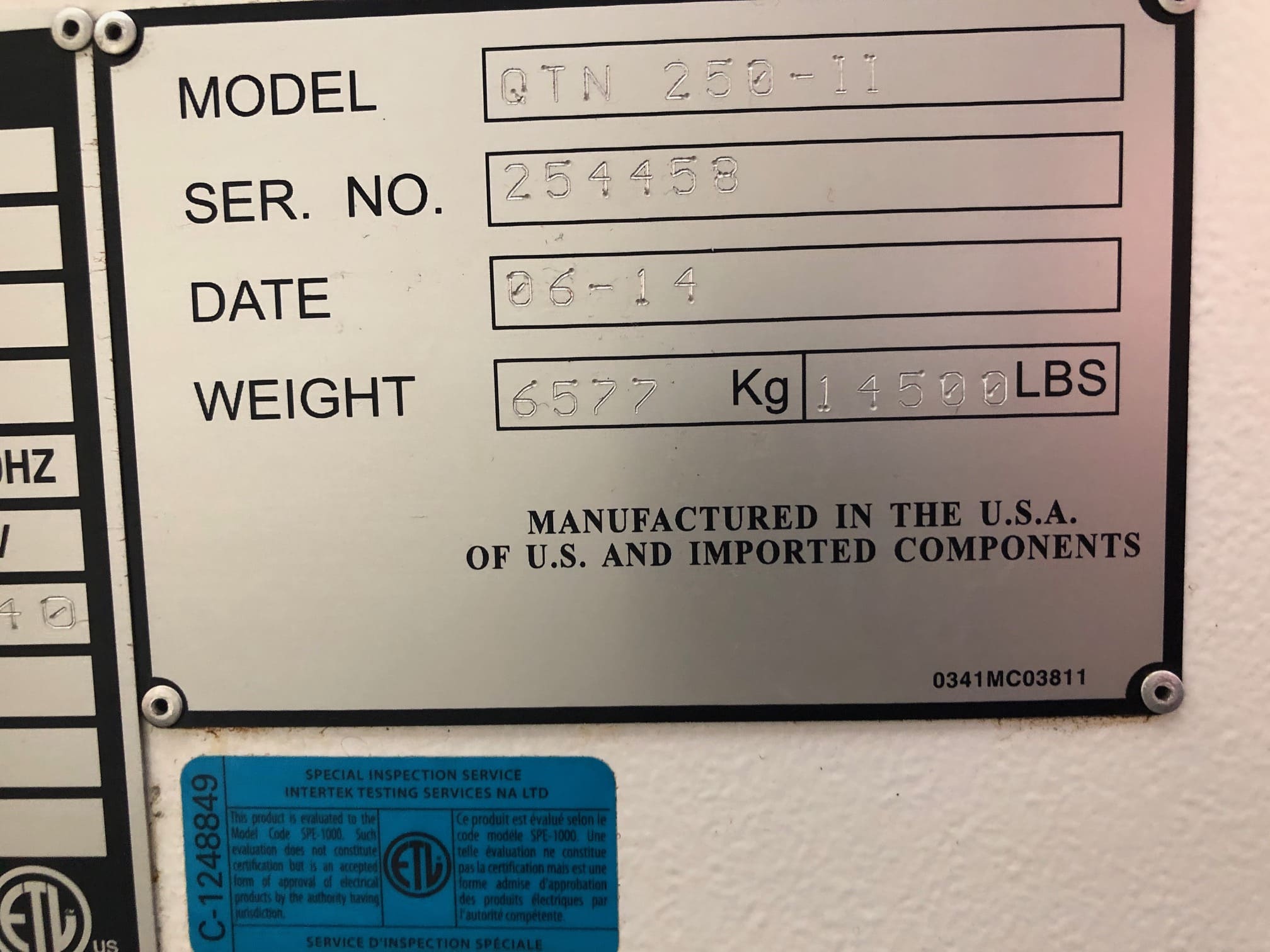

Machine Weight: 14,500 lbs
