Cantek HA 30 x 3100
Flatbed CNC Hollow Spindle Lathe
Make: Cantek
Model: HA 30 x 3100
Description: Flatbed CNC Hollow Spindle Lathe
Category: Lathes, Universal, Flatbed, N/C & CNC
Year: 2006
Stock #: 500-277

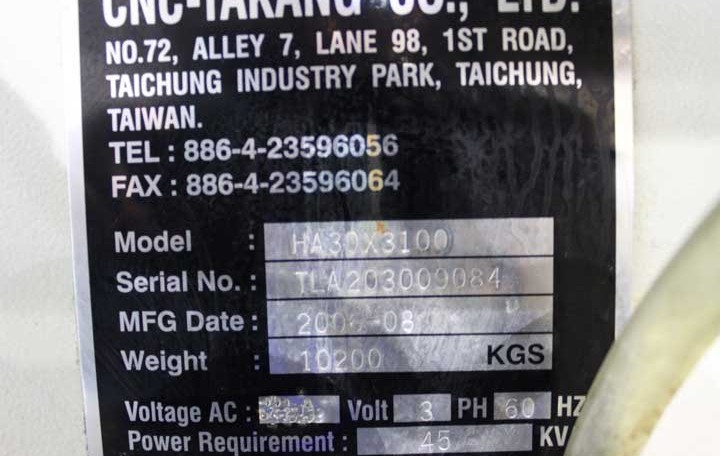

Serial #: TLA203009084
Machine Location: Edmonton
Machine Demensions:
Machine weight: 21000 lbs
| Control: | Fanuc 21i-TB |
| Swing over bed: | 30″ |
| Swing over carriage: | |
| Chuck diameter: | |
| Max. turning diameter: | |
| Max. distance between centers: | 124″ |
| Max. workweight, chuck only and with tailstock: | |
| Travel X: | |
| Travel Z: | |
| Rapid traverse X: | |
| Rapid traverse Z: | |
| Spindle bore: | 9″ |
| Spindle nose: | A2-15 |
| Spindle speeds: | 6-400 RPM |
| Max. torque on main spindle: | |
| Automatic turret changer: | |
| Tool turret – no. of positions / tool shank: | Parat 4 way |
| Max. size of tools: | |
| Tailstock stroke: | 7.8″ |
| Tailstock spindle: | |
| Tailstock taper: | MT #6 |
| Motor 30 min/cont: | |
| Electrics: | 220/3/60 |
| Dimensions L x D x H: | |
| Weight, approx.: | 21000 lbs |

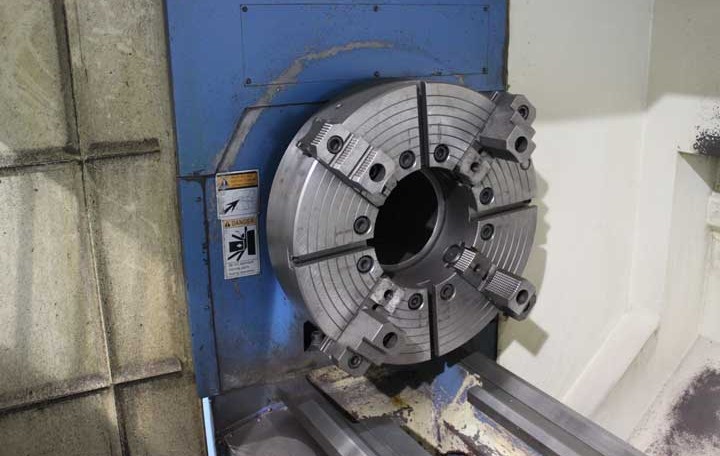

| Equipped with: | Part size 4 quick change toolkits, 9 Toolholders, Chip conveyor (1), Chip auger (1), Oil cooler, Power tailstock body, Powered tooldrock quit, Steady rest 20″, Steady rest 12″, 24″ 4-Jaw chuck w/ 10.5″ bore, 25″ 3-Jaw chuck w/10″ bore |
